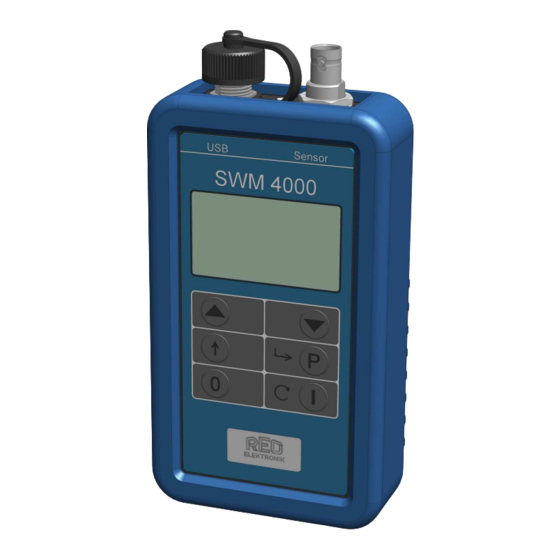

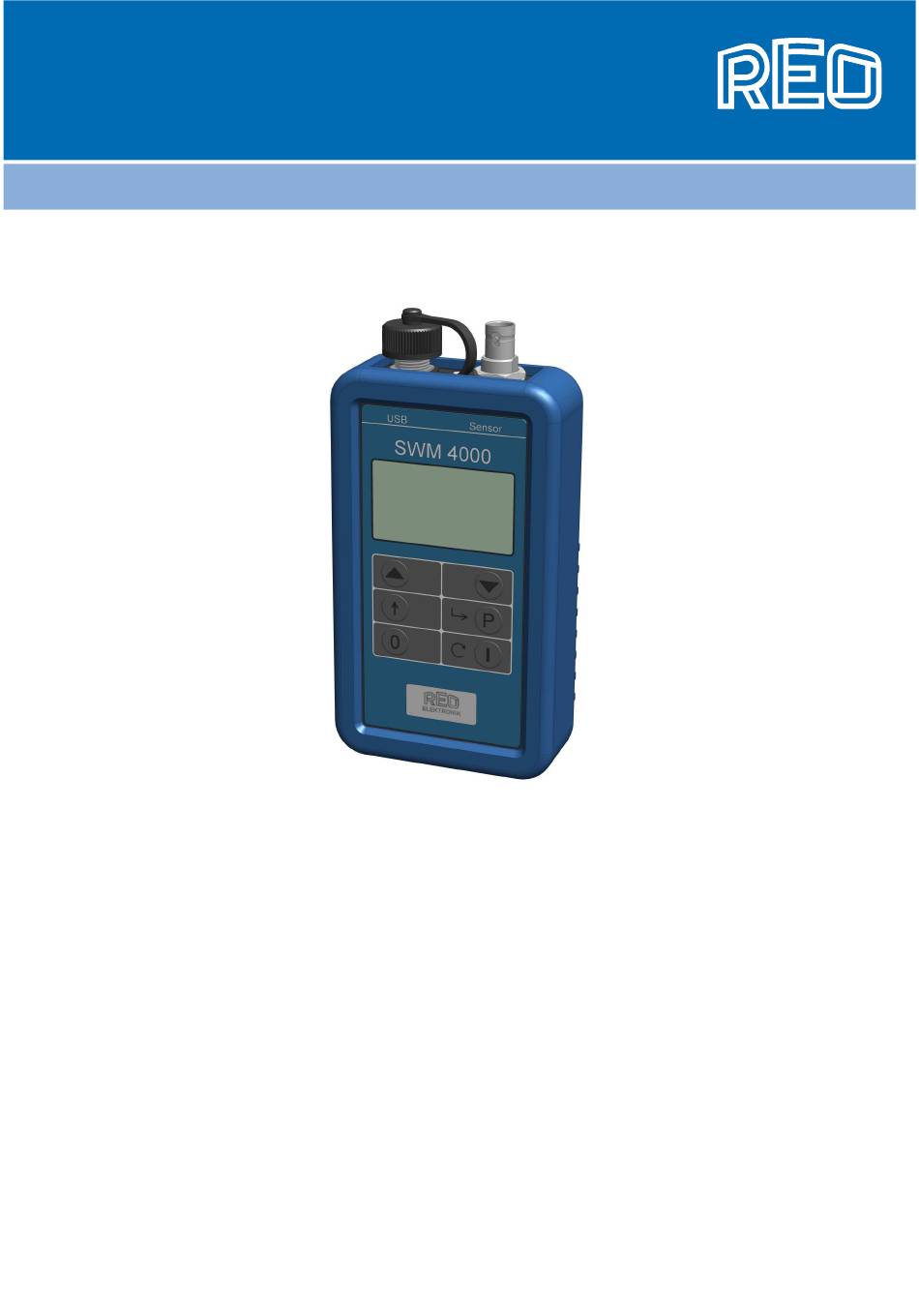

- Page 1 REOVIB For Vibratory Feeder Systems SWM 4000 Handheld measuring instrument for vibratory feeder 6774_EN_ANL_rev00.DOC 23.12.2014...
-
Page 2: Table Of Contents
REOVIB SWM 4000 Operating Instructions Contents Technical Information for the User ....................... 3 1.0 General ..............................4 2.0 Technical Data ............................4 3.0 Control Elements / Display Messages ....................5 4.0 Menu Structure ............................6 5.0 Mounting the accelerometer ........................7 6.0 Calibrating the sensor input ........................ -
Page 3: Technical Information For The User
REOVIB SWM 4000 Operating Instructions Technical Information for the User This description contains the necessary information for the correct application of the product described below. It is intended for use by technically qualified personnel. Qualified personnel are persons who, because of their training, experience and position as well as their knowledge of appropriate standards, regulations, health and safety requirements and working conditions, are authorised to be responsible for the safety of the equipment, at all times, whilst carrying out their nor- mal duties and are therefore aware of, and can report, possible hazards (Definition of specialist according... -
Page 4: General
Reliable and accurate instrument for the installation, testing and servicing of vibratory conveyor equip- ment. This unit supersedes REO‘s popular SMW3000 unit and incorporates many new features. When combined with an appropriate accelerometer, the unit displays, acceleration, speed, vibration amplitude and frequency. -
Page 5: Control Elements / Display Messages
REOVIB SWM 4000 Operating Instructions 3.0 Control Elements / Display Messages Display Indicates that there Acceleration in g is no measurement Speed in cm/sec signal and the sensor Deflection in mm Frequency in Hz is connected Acceleration: --- g Acceleration: --- g Speed: --- cm/s Deflection: --- mm Speed: --- cm/s... -
Page 6: Menu Structure
REOVIB SWM 4000 Operating Instructions 4.0 Menu Structure Symbol Menu option Meaning Adjustment Storage Record Save record 0-39 Records Record Load record 0-39 Acceleration Acceleration Speed Speed Deflection Deflection Frequency Frequency Clear Record Delete selected record Execute Info Soft Software version View only Datum (Only for service purposes) -
Page 7: Mounting The Accelerometer
REOVIB SWM 4000 Operating Instructions 5.0 Mounting the accelerometer Important! Sensor mounting: The accelerometer should generate signals for the movement and acceleration of the feeder, which are fed back to the regulator circuit of the control unit. Therefore it is very important that no other extraneous vibration signals are picked up by the sensor Sensor Sensor... -
Page 8: Saving Your Own Parameter
REOVIB SWM 4000 Operating Instructions 9.0 Saving your own parameter You can save your own settings of the unit. Save: In Menu: Service, Parameter: Code: 143 Set User Params Load: In Menu: Service, Parameter: User Params 10.0 Function „only measure“ or enable and disable Parameter/Menus With this parameter you can protect the saved data sets and unit settings against unauthorised modifying. -
Page 9: Delivery Contents
REOVIB SWM 4000 Operating Instructions 13.0 Delivery contents The measuring instrument "SWM 4000 Set" consists of: Designation Order Number Measuring instrument SWM 4000 USB-charger/power Supply (traveler) incl. USB data/charging cable Silicone protective cover for SWM 4000 677401 Sturdy carry case Sensor mounting bracket Accelerometer (100mv/g) incl. -
Page 10: Dimensions
REOVIB SWM 4000 Operating Instructions 15.0 Dimensions... - Page 11 REOVIB SWM 4000 Operating Instructions...
- Page 12 E-Mail: info@reo.de Internet: www.reo.de China REO Shanghai Inductive Components Co., Ltd No. 536 ShangFeng Road · Pudong, 201201 Shanghai · China Tel.: +86 (0)21 5858 0686 · Fax: +86 (0)21 5858 0289 E-Mail: info@reo.cn · Internet: www.reo.cn France REO VARIAC S.A.R.L.
