Power Plug
Fig.12

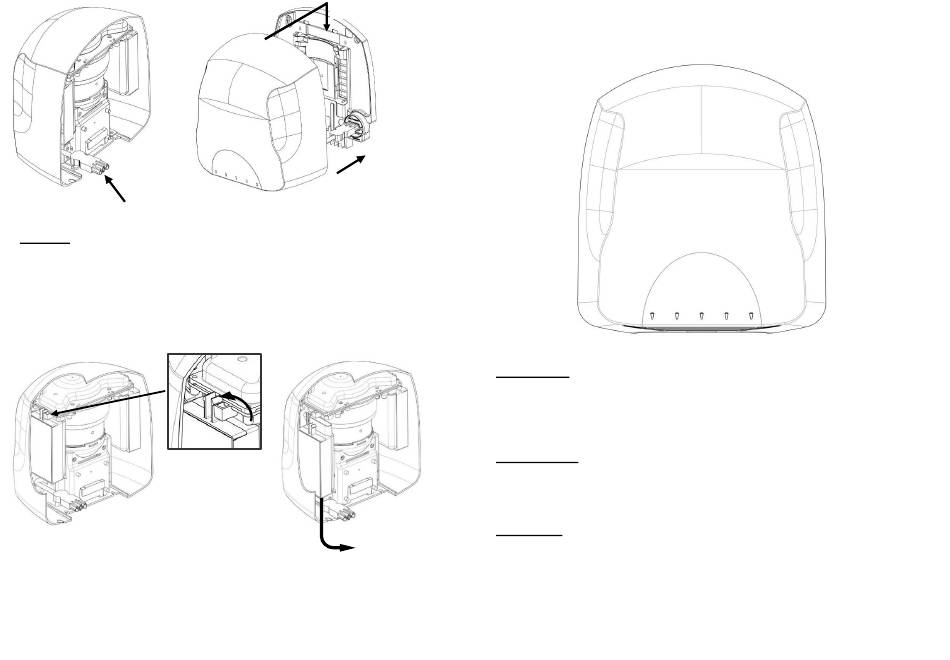

SERVICING

The filter modules need replacing at the recommended service interval. The filter is removed as
follows.
Press the retaining clip forward to disengage.(Fig.14)
Whilst maintaining pressure on the clip pull the filter downward to remove .(Fig.15)
Replace the 2 filter elements by sliding the filters into position ensuring the clip feature is located.
Fig.14
051255-A
2
1
Fig.13

DESCRIPTION:

High speed hand dryer incorporating Hepa grade filtration for truly clean air. Powered by
universal brush motor, delivering 1100 Watts of drying power. This hand dryer runs on 230
Volts AC electrical supply. An infrared sensor is used to automatically turn the dryer on
and off. This model is intended for use in commercial, industrial, office and public facility
environments.

SPECIFICATION:

Rating:
Construction:
Dimensions (mm):
Weight:
Fig.15

IMPORTANT:

This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Warner Howard c/o PHS Group, Claymore, Tame Valley Industrial Estate, Tamworth, Staffs. B775DQ Tel: 08708504352 Fax: 08708504354 www.phs.co.uk
WARNER HOWARD SR1100
1100W at 230V ac 50Hz
ABS
260x282x152
3.2 Kg
