CABASSE THE PEARL User Manual

Hide thumbs Also See for THE PEARL:

Advertisement

Table of Contents

THE PEARL
User guide

Advertisement

Table of Contents
loading

Related Manuals for CABASSE THE PEARL

Summary of Contents for CABASSE THE PEARL

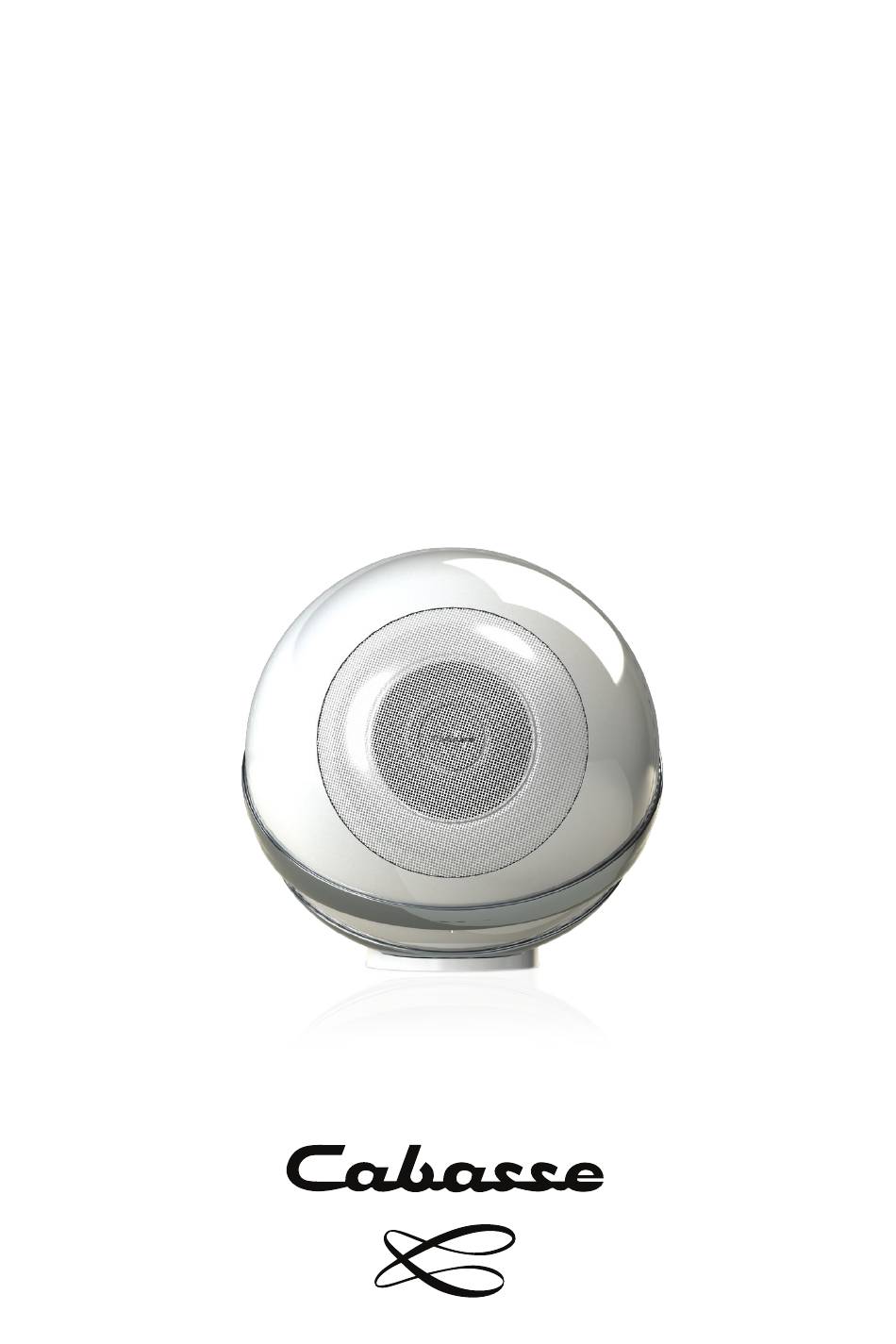

  • Page 1 THE PEARL User guide...

  • Page 2: Safety Instructions

    You have just bought THE PEARL and we thank you for your trust. We recommend reading this leaflet carefully to take full advantage of all the possibilities of THE PEARL. SAFETY INSTRUCTIONS Explanation of symbols Foreign bodies and liquids -...

  • Page 3: Important Safety Instructions

    shock or other. Plastic Bags - Do not leave plastic bags Checks - in the box within reach of children to avoid After any work on the unit, have choking. the technician perform tests to ensure that the unit operates safely. IMPORTANT SAFETY INSTRUCTIONS! 1.

  • Page 4: Installation

    Keep your packaging for possible future transport of your system. INSTAllATION THE COMPONENTS OF YOUR SYSTEM THE PEARL , 1 power cord, 1 remote control, 1 simplified instruction and 1 warranty card. INPUTS of the back of THE PEARl optical ETH/lAN USB Analog...
  • Page 5 REMOTE CONTROL KEYS THE PEARL Volume + Preset access Previous Play / Pause Next Source Selection Volume - FUNCTIONS Bluetooth WIFI/ETHERNET connection via routeur internet / box internet loss less audio broadcast Access to all audio media from the WIFI network (computer ...)
  • Page 6 status Pairing Reset Pairing button button Optical Analog Power Ethernet ON/OFF input input...

  • Page 7: Remote Control Activation

    FIRST USE Connect THE PEARL to the mains with the proper power cord. THE PEARL is operational as soon as the LED on the left of the rear panel opposite is lit in solid blue. A voice announcement, if the volume of THE PEARL is not at a minimum, indicates the...

  • Page 8: Analog Input

    DLNA server included in THE PEARL are then listed in the Stream Audio Control application and can be read by all Cabasse Stream players connected to the same network. The PEARL USB socket has a 5V - 1A DC power supply for use with a portable hard drive without external power supply.

  • Page 9: Bluetooth Connection

    2. The "Pairing" LED on the back should flash 3. Activate Bluetooth on your mobile 4. Select "THE PEARL XXXX Cabasse" from the list of available devices 5. Once the connection is successful, the LED "Pairing" on the back stops flashing...
  • Page 10 ! An update of THE PEARL software can start automatically as soon as an internet connection is made. The beginning and the end of the update are announced by voice. Do not turn off or disconnect THE PEarL during updates that may...
  • Page 11 Start listening to your favorite music from your smartphone, key or hard drive connected to THE PEARL's USB input, or using sources connected to its analog input or optical input. The sources connected to these 2 entries of THE PEARL can be played by other Stream devices connected to the same network.
  • Page 12 STREAM CONTROl APPlICATION FIRST USE Open the Stream Control application and launch the tutorial to discover the main features of the application. Swipe left-right to open the window giving access to sources and settings. Select "parameters" then "see the tutorial" at the bottom of the "settings" page. Here are the main actions detailed here: - Navigation in the application - Stereo mode...
  • Page 13 In order to provide a stable stereo reproduction with a WLAN connection, the standard delay In the firmware of THE PEARL can be up to 1300 ms. This delay can be devided 6 times or more for AV purpose In order to provide a stable stereo reproduction with a WLAN connection, the standard delay in the firmware of THE PEARL can be up to 1300 milliseconds.

  • Page 14: How To Select The Tv Mode

    HOW TO SElECT THE TV MODE Open the Cabasse Stream Control App, sweep the screen from left to right to open the window featuring the sources, the music providers and the icone to access the settings. 1 : select "Settings"...
  • Page 15 5. Scroll down and 6. Scroll down and acti- select "Network" vate "TV mode enable" in "Aux In"". 7. Exit from "Settings".
  • Page 16 DEEE MARKING Information about batteries and accumulators in the equipment Treatment of electrical and electro- (Applicable in the countries of the nic devices at the end of their life European Union). (applicable in the countries of the European Union). This crossed-out wheeled bin sym- bol affixed to a battery or accu- This crossed-out wheeled bin sym- mulator indicates that the battery...

  • Page 17: Automatic Update

    "Settings" + sub-tab "audio players" + THE PEARL ClEANING THE PEARL can be cleaned with a soft cloth, do not use detergent or liquid that can run inside the appliance. Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
  • Page 18 THE PEARl - 1 DLNA input: wired with RJ45 plug or Wi-Fi dual band 2x2 802.11a / b / g / n / ac Digital inputs - 1 Bluetooth 4.2 input - 1 S / PDIF optical input - 1 USB 2.0 input 5V...
  • Page 19 Speakers 1 coaxial medium-high BCI 1 x woofer 25 HELD Active 3-way amplification tweeter: 300 W medium 300 W Distortion rate plus noise woofer 1 000 W (THD + N on the tape Wifi : < 0.2% 20-20 000 Hz for a power of 100 mW Bluetooth : <...
  • Page 20 Cabasse SAS - 210, rue René Descartes - BP 10 - 29280 Plouzané - FRANCE Tel +33 298 05 88 88 - Fax +33 298 05 88 99 www.cabasse.com...
