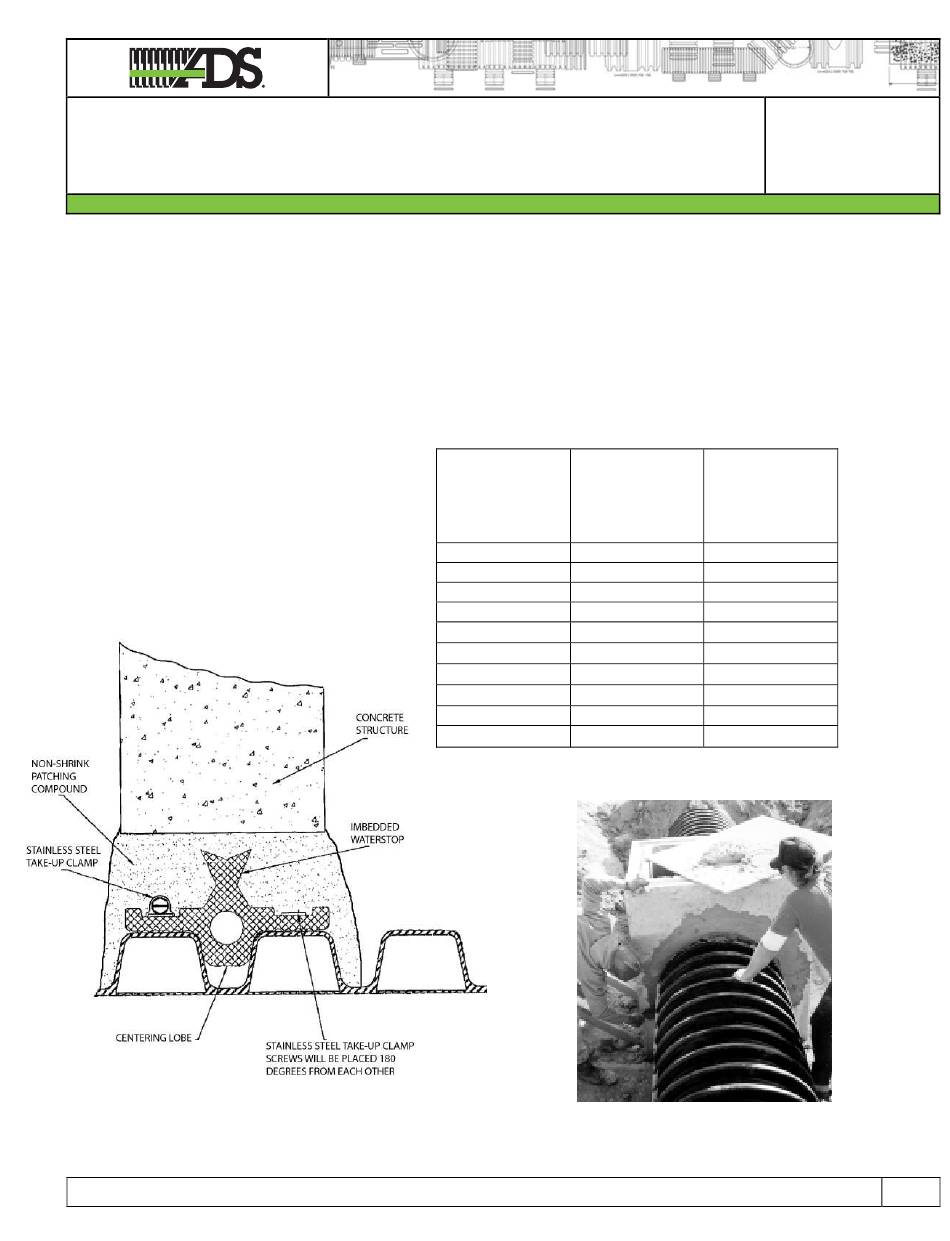

INSTALLATION GUIDE
WaterStop™ Gasket
The WaterStop Gasket is intended to provide a cost-effective, watertight seal between HDPE and HP pipe and
concrete structures. It is currently available for pipe diameters of 12" through 60".
The WaterStop Gasket is a convenient field-installed seal that prevents water infiltration and exfiltration at manhole
connections. It meets the performance requirements of ASTM C923 (Standard Specification for Resilient Connectors
Between Reinforced Concrete Manhole Structures, Pipes and Laterals). The WaterStop Gasket, when grouted,
becomes a monolithic part of the manhole.
When ordering concrete structures, use the table below to select the minimum hole diameter needed to accommodate
the WaterStop Gasket.
IG 1.05
4640 TRUEMAN BLVD.
HILLIARD, OH 43026
Recommended
Pipe Diameter
Minimum Hole
(in)
Diameter (in)
12
19.50
15
23.00
18
26.50
21
30.25
24
33.25
30
40.50
36
47.00
42
53.00
48
59.00
60
72.00
(800) 821-6710
www.ads-pipe.com
IG 1.05
October 2015
Min. Distance,
Pipe Invert to
Structure
Invert
(in)
3.7
4.0
4.2
4.5
4.5
5.2
5.5
5.75
5.75
6.4
© ADS 2015
1
Advertisement
Table of Contents
Related Manuals for ADS WaterStop Gasket
Summary of Contents for ADS WaterStop Gasket
- Page 1 WaterStop™ Gasket October 2015 The WaterStop Gasket is intended to provide a cost-effective, watertight seal between HDPE and HP pipe and concrete structures. It is currently available for pipe diameters of 12" through 60". The WaterStop Gasket is a convenient field-installed seal that prevents water infiltration and exfiltration at manhole connections.
- Page 2 Thoroughly clean 2 feet of pipe section at the insertion end of the pipe. Position the WaterStop Gasket so the center lobe is in the valley of the corrugation. Place the stainless steel take-up clamps in the grooves on each side of the center lobe.
