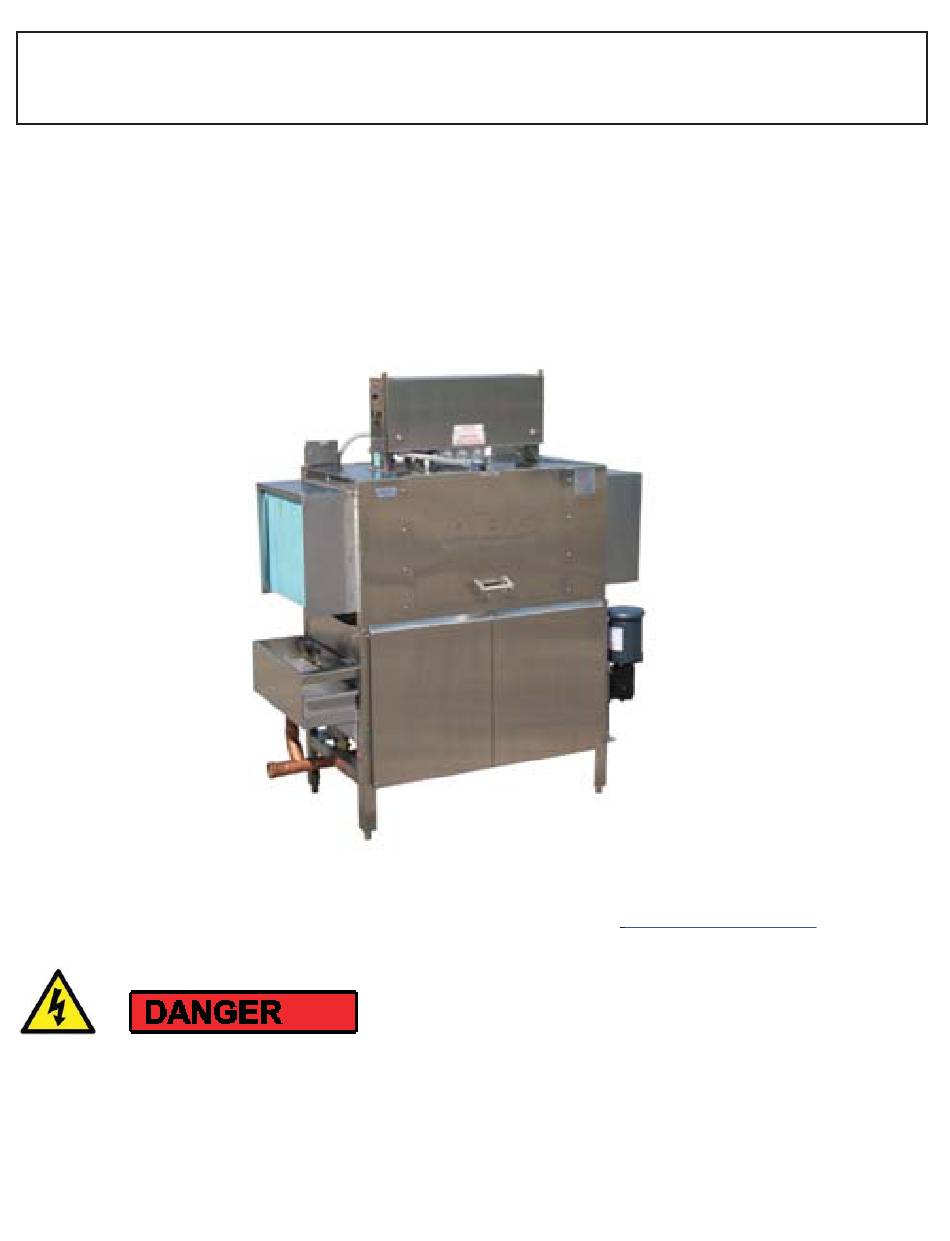

American Dish Service
INSTALLATION INSTRUCTIONS
Model ADC-44 or ADC-66
208/240V, 3-ph, 60a or 90a for 66
High Temp or Chemical Sanitizer Conveyor Dishmachines
Listed by UL #E68594, NSF/ANSI 3, ASSE 1004 #301, LA Test Labs File M-920011, Mass. License P3-0111-306
If you have questions, call 800-922-2178 or visit our website at
www.AmericanDish.com
The electrical power supplied to this machine is an imminent hazard that could result in severe
bodily injury or death if not properly installed or hooked up correctly. When working in the control
box or on electrical parts, always disconnect power and tag-out before servicing. Replace cover
to control box and other protective covers when fi nished servicing this equipment.
Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADS ADS-44
Summary of Contents for ADS ADS-44
- Page 1 When working in the control box or on electrical parts, always disconnect power and tag-out before servicing. Replace cover to control box and other protective covers when fi nished servicing this equipment. Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 2 #1 BEFORE YOU BEGIN— American Dish Service provides this information as a service to our customers. Keep all instructions for future reference. ADS reserves the right to alter or update this information at any time. Should you desire to make sure that you have the most up-to-date information, we would direct you to the appropriate document on our web site: www.americandish.com.
-
Page 3: Electrical Section
The power supply of 208 volts, 60 amps must consist of three 6-gauge wires and a suitable ground. The 60 amp breaker or fuses must be on a clean circuit to the machine. ADS has provided a conduit hole (1 3/8”actual size) for 1” conduit for the electrical service into the back of the control box. Attach the 6-gauge wires to the main distribution block in the control box to terminals marked L1, L2, &... - Page 4 The power supply (208 volt, 90 amps) must consist of three 3-gauge wires, a 10-gauge neutral, and a suitable ground. The 90 amp breaker or fuses must be on a clean circuit to the machine. ADS has provided a conduit hole (1 3/4”actual size) for 1 1/4” conduit for electrical service in the back of the control box.
- Page 5 ADS. Improperly installing ADS equipment in this manner could void the warranty. All costs associated with providing an adequate water supply to the machine is the sole responsibility of the user.
- Page 6 Scrap box and tray ADS provides a 2” copper common drain that exits on the soil side of the dishmachine under the scrap box (ADC-66 drain exits both sides). To prevent clogging, run drain lines as straight as possible. Do not plumb with tight radius elbows or 180°...
- Page 7 ADS provides two (2) ports, 1/8” IPS female threads in the fi nal rinse mixing chamber for dispenser check valves. Probe hole (7/8”) is provided in the wash tank for probe installations (install probe before operating the machine). Detergent hole (7/8”) is provided for bulk-head fi tting (install fi tting before operating machine).
- Page 8 The resulting damage from overusing chlorine is not covered under the ADS warranty. Purpose-built ware-washing dispensers are needed to properly meter chemicals for wash and rinse. These dispensers are not included with this model but must be installed by the company that provides the ware-washing chemicals.
- Page 9 Bolt the tables to the machine and seal. TABLE LIMIT SWITCH—Check clean dish table, if it holds less than four (4) dish racks, install an ADS table limit switch (#288-1044). The switch holder attaches to the back side of the table end. The bumper bar will extend through the table and pin to the rocker plate.
- Page 10 The water stream going into the pumped rinse tank should be about the diameter of a pencil. It is normal for the machine to add more water when the pump turns on if the level has not yet reached the overfl ow. Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 11 If binding occurs, adjust the REAR tray track at all (3) anchor points until the rack binding is eliminated. You must adjust evenly at all three points to maintain proper alignment. Never adjust the front tray track, they contain switching alignments. Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 12 The pump will equalize after being operated once. The power scrapper pump motor is the standard ADS single-phase 1.5HP motor wired for 208v instead of 115v. Make certain replacement motors are fi rst wired for high voltage (see diagram on motor).
- Page 13 Wash tank thermostat, rotate center rod Left to T-stat signal goes to term #6 on heater relay increase under contactor Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 14 200 to 400 CFM draw per side VENTING—If exhaust vents (pant-leg vents) are attached to the dishmachine, do not exceed 400 CFM per individual pant leg. ADS does not specify building HVAC values and only offers this limit as a point of reference.
- Page 15 089-9437---44” Brochure 089-9365---44” & 66” Conveyor Wall Chart 089-9454---44” Wire diagram 089-9388---Installation Manual ADC-44/ADC-66 3 Phase 089-9343---66” Conveyor Parts Manual 089-9423---66” Spec Sheet 089-3408---66” Service Manual 089-9439---66” Brochure 089-9456---66” Wire Diagram Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 16 220 volts 2.515 kW 6.6a 3-ph 240 volts 2.993 kW 7.2 a 3-ph *Normal tank heater ADC-44, 3-phase is 208v, 12kW, --240v, 12kW is special order **Normal tank heater for ADC-66 Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 17 RINSE TANK SUSTAINER HEATER 50 AMP HEATER THERMOSTAT CIR. BRK. TANK HEATER CONTACTOR 2.25 KW Thermostat Relay WASH TANK SUSTAINER HEATER THERMOSTAT TANK HEATER 12 KW, 33 A @ 220v CONTACTOR Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
- Page 18 2.25 KW, 6 AMPS CIR. BRK. TANK HEATER BROWN CONTACTOR 2.25 KW Thermostat Relay WASH TANK SUSTAINER HEATER 60 AMP THERMOSTAT HEATER CIR. BRK. TANK HEATER 18 KW, 48 AMPS BLACK CONTACTOR Copyright ADS Installation Manual Model ADC-44/66 3-PH, Revision 3.0, 6/7/2013...
