M-PACT Plus

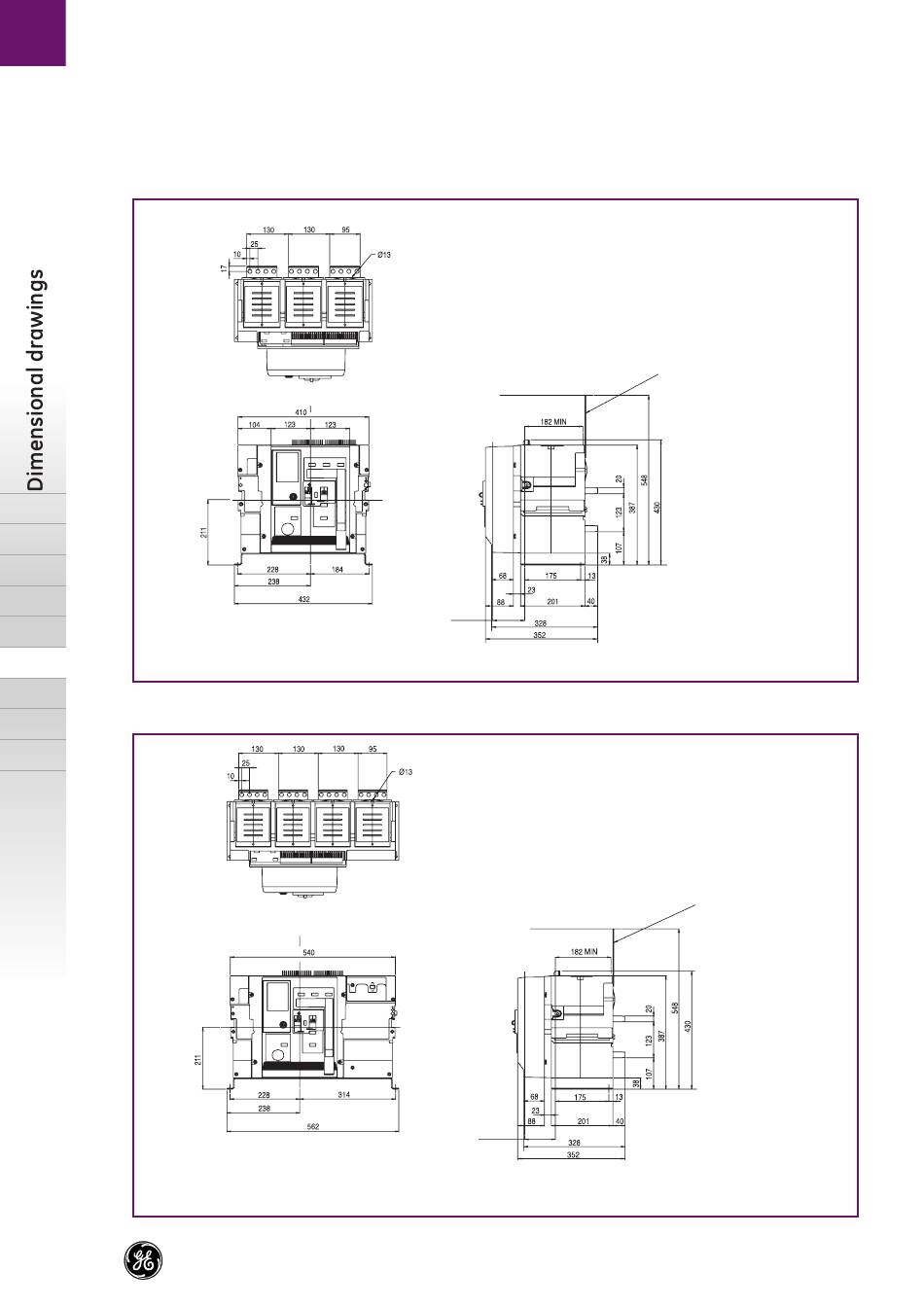

Horizontal, rear access connection
Fixed pattern

Type S, N - 3 pole - Frame size 2, In=3200A to 4000A

Type H - 3 pole - Frame size 2, In=800A to 4000A

A
B
C

Type S, N - 4 pole - Frame size 2, In=3200A to 4000A

Type H - 4 pole - Frame size 2, In=800A to 4000A

X
C.6
Centre line of operating panel
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Centre line of operating panel
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Minimum space to earth metal
and for arc chute removal
Centre line of
operating panel
100 to door
Minimum space to earth metal
and for arc chute removal
Centre line of
operating panel
100 to door
Insulated metal or insulated
sheet (customer supplied)
Insulated metal or insulated
sheet (customer supplied)
