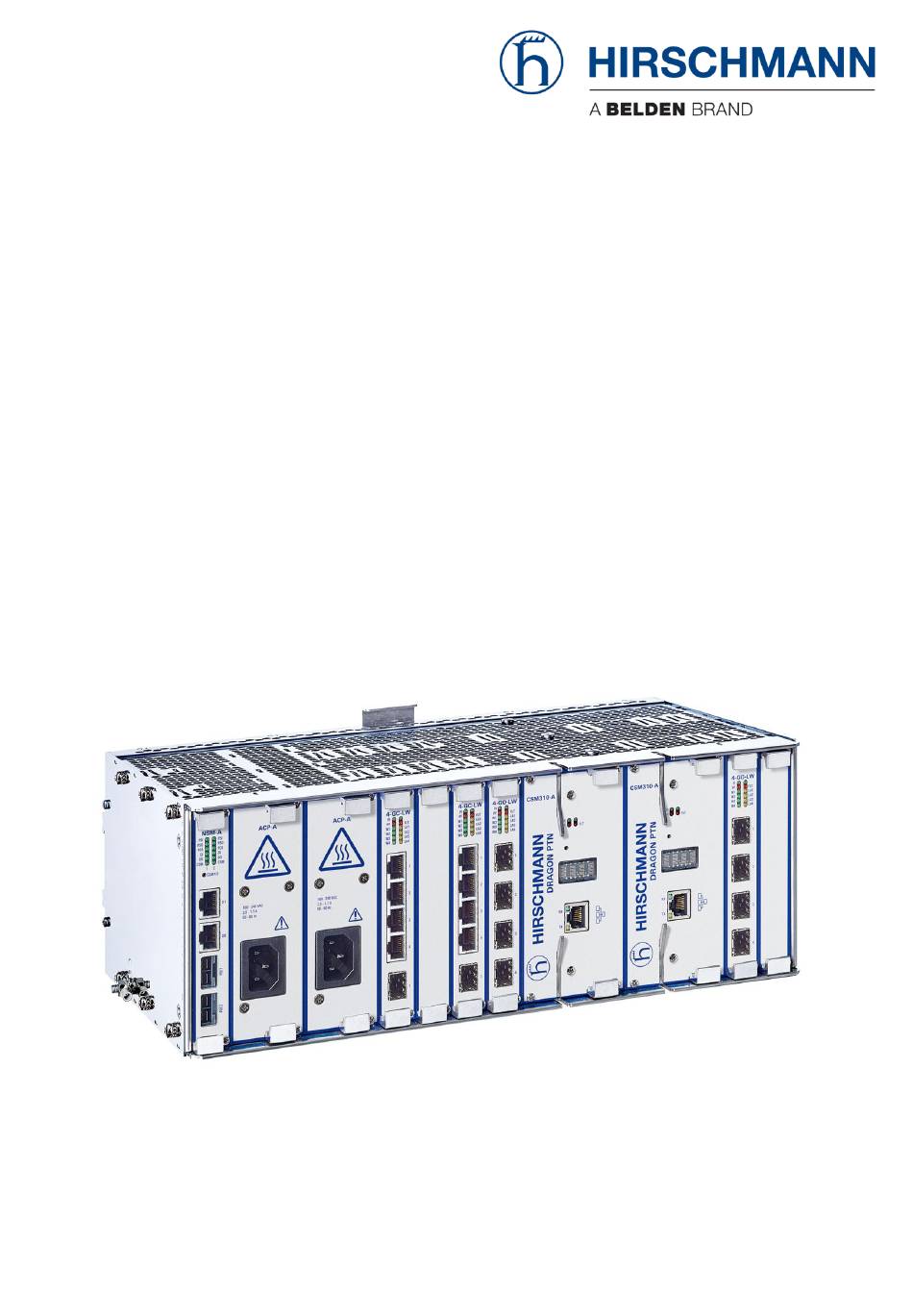

User Manual
User Manual
Installation
Dragon PTN
Node PTN2210: 1 NSM, 2 PSUs, 2 CSMs, 10 IFMs
Node PTN2209: 1 NSM, 2 PSUs, 2 CSMs, 9 IFMs
Node PTN2206: 1 NSM, 2 PSUs, 2 CSMs, 6 IFMs
Node PTN1104: 1 NSM, 1 PSU, 1 CSM, 4 IFMs
Installation Dragon PTN Nodes
Release 01 02/2018
Technical support
https://hirschmann-support.belden.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hirschmann Dragon PTN
Summary of Contents for Hirschmann Dragon PTN
- Page 1 Node PTN2209: 1 NSM, 2 PSUs, 2 CSMs, 9 IFMs Node PTN2206: 1 NSM, 2 PSUs, 2 CSMs, 6 IFMs Node PTN1104: 1 NSM, 1 PSU, 1 CSM, 4 IFMs Installation Dragon PTN Nodes Technical support Release 01 02/2018 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Power Consumption (Empty Node) ........... 27 Dimensions ..................27 Cooling ..................... 28 Input Voltage Range ................. 28 Digital Output Contacts ..............28 Ordering Information ................ 28 INSTALLATION INSTRUCTIONS .................. 28 WEEE GUIDELINES ....................29 ABBREVIATIONS ...................... 29 Installation Dragon PTN Nodes Release 01 02/2018... - Page 4 List of figures Figure 1 Dragon PTN MPLS-TP Network ..................6 Figure 2 XT-2210-A Node ......................8 Figure 3 XT-2209-A Node ......................8 Figure 4 XT-2206-A Node ......................9 Figure 5 XT-1104-A Node ......................9 Figure 6 NSM-A, NSM-B: Front Panel ..................10 Figure 7 NSM-A: Side View ......................
- Page 5 Table 15 Power Consumption ..................... 27 Installation Dragon PTN Nodes Release 01 02/2018...
-
Page 6: Introduction
Nodes can be interconnected via copper cable or optical fiber. An example of a Dragon PTN network can be found in the figure below. The network is man- aged by a HiProvision PC (=Dragon PTN Management System), see also Ref. [1] in Table 1. -
Page 7: Table 1 Manual References
Number Title DRA-DRM821-&-* Dragon PTN and HiProvision Operation DRA-DRM801-&-* Dragon PTN Installation and Operation DRD-DRM803-&-* Dragon PTN Central Switching Module: PTN-CSM310-A DRE-DRM807-&-* Dragon PTN Interface Module: PTN-4-GC-LW/ PTN-4-GCB-LW DRA-DRM810-&-* Dragon PTN General Specifications DRE-DRM823-&-* Dragon PTN Interface Module: PTN-9-L3A-L Table 2 Product Ordering Numbers... -
Page 8: Node Description
2. NODE DESCRIPTION 2.1 General The Dragon PTN node consists of a 3 U (3 U = 132.5 mm = 5.22 inches) high, 19 inches rack or DIN rail mountable stainless steel (*) chassis. The EMC shielding of the chassis complies with the EMC standards listed in Ref.[5] in Table 1. -
Page 9: Node Xt-2206-A
2.2 NSM (=Node Support Module) 2.2.1 General The NSM is required in each Dragon PTN node and performs the functions below via its front panel. Make sure to tighten the NSM fastening screws after plugging in the NSM. Status indication of PSU(s) and CSM(s);... -
Page 10: Functions
The Hardware Edition (labeled as CARD_ID) and Node Number on the NSM are set by rotary DIP switches. In order to access them, the NSM must be partly removed from the node chas- sis. Installation Dragon PTN Nodes Release 01 02/2018... -
Page 11: Figure 7 Nsm-A: Side View
DI1/2 refers to inputs1/2 on the digital input (=DI) connector on the NSM; DO1/2 refers to output contact1/2 on the digital output (=DO) connector on the NSM; CSM1/2 refers to the CSM plugged into CSM1/CSM2; Installation Dragon PTN Nodes Release 01 02/2018... -
Page 12: Table 3 Led Indications In Boot Operation
No alarm is active on DO2 contact, DO2 contact is activated, see §2.2.2g. CSM1/2 Not lit, dark The corresponding CSM is not plugged in or, it is plugged in and in standby/passive mode in case of redundant CSMs. Green The corresponding CSM is active. Installation Dragon PTN Nodes Release 01 02/2018... -
Page 13: Figure 9 Di, Do Rj45 Connector
Inputs a and b are symmetrical. E.g. input1 (=In1), make a shortcut between pin In1a and In1b on the input to activate the input à current flows through the input, see figure below; Installation Dragon PTN Nodes Release 01 02/2018... -
Page 14: Figure 10 Example: Digital Input (=Di): Closed Input
Out Common 2 Out Normal Closed 2 Major Alarms Out Normal Open 2 How the DO contacts behave in a normal (no alarm) and an alarm situation can be found in the figure below: Installation Dragon PTN Nodes Release 01 02/2018... -
Page 15: Poe (=Power Over Ethernet) (Only On Nsm-A)
‘Power Sourcing Equipment’ (=PSE, e.g. the Dragon PTN node). Dragon PTN nodes are able to deliver PoE when one (or two) external PoE PSU(s) is (are) connected to the NSM via the PoE connectors. A possible external PoE PSU and how to con- nect it can be found in §2.3.2. -
Page 16: Figure 13 General Poe Example
Via HiProvision it is possible to enable/disable PoE per port and to verify which ports in each node are PoE enabled. (Future) Power management is supported, i.e. the Dragon PTN node decides in an intelligent way which PoE ports will get power and which ones will not. There are a lot of possible scenarios in which power management must tune its delivered power on each port. -
Page 17: Psu (=Power Supply Unit)
Power cables with locking mechanism are available for Europe, UK and US, Table 2. Handle Fastening screw CAUTION: Some parts within the node can be extremely hot power cable with locking mechanism Figure 14 ACP-A PSU with Power Cable Installation Dragon PTN Nodes Release 01 02/2018... -
Page 18: Figure 15 Dcp-A Psu (18-60Vdc) / Power Cable / Code Keys
PSU Side Cable Side Code Key Code Key Code Key c. DC PSU High Voltage PSU DCP-B, 942 234-003: input voltage 88 to 300 VDC; Power cable (3m) with code keys: 942 256-104; Installation Dragon PTN Nodes Release 01 02/2018... -
Page 19: Figure 16 Dcp-B Psu (88-300Vdc) / Power Cable / Code Keys
Refer to the relevant module manuals for the power consumption of the CSM and IFMs. The tables below show the specifications of the AC and DC PSUs. Installation Dragon PTN Nodes Release 01 02/2018... -
Page 20: Poe Psus (Only On Nsm-A)
Two connected PSUs will operate redundantly. Power aggregation is not supported. When two PSUs are connected, always the lowest power of both PSUs will be taken by HiProvision to calculate the PoE power. Installation Dragon PTN Nodes Release 01 02/2018... -
Page 21: Figure 17 Acpoe-A Psu To Nsm-A Connection
For the configuration in HiProvision, see ‘Power over Ethernet (PoE)’ in the 'Dragon PTN and HiProvision operation manual', see Ref.[1] in Table 1. Following PSUs can be ordered: ACPoE-A DIN Rail PSU (942 235-001), see below; DCPoE-A DIN Rail PSU (942 235-002), see below;... -
Page 22: Figure 18 Output Current, Power Derating
DIN Rail or iron baseplate mountable. The wall plate can be used for better cooling. Cable 942 256-105 (3m) must be used to connect the PoE source to the NSM, see figure below: Installation Dragon PTN Nodes Release 01 02/2018... -
Page 23: Figure 19 Dcpoe-A Psu To Nsm Connection
; +70℃ no derating with external iron base plate, TX class compliance Dimensions WxHxD 97 x 40 x 216 mm / 3.82 x 1.57 x 8.5 inches Protections Auto recover Overload (auto recover) Repower Overvoltage (must be repowered) Overtemperature (autorecover) Installation Dragon PTN Nodes Release 01 02/2018... -
Page 24: Csm (=Central Switching Module)
(=https://hiprovision.hirschmann.com) via Shortcuts à Manuals. Dragon PTN nodes can provide slots for up to ten IFMs. Both low speed (1G) and high speed (10G) IFMs can be used together in the same node. The slot into which the IFM can be plugged depends on the IFM speed type (1G, 4x1G or 10G) and the node type slot speeds. -
Page 25: Backplane
It avoids the risk of an electrical shock if a person touches a device in which an insulation fault has occurred. An insulation fault (a "short circuit") will cause a very high current flow, which will trigger an overcurrent protection device (fuse, circuit breaker) and disconnects the power supply. Installation Dragon PTN Nodes Release 01 02/2018... -
Page 26: Cooling / Temperature Sensing
2) Make sure that all empty slots are covered with cover plates, see Table 2. The Dragon PTN Nodes have a rugged industrial design and operate, except for the 9-L3A-L IFM (see Ref.[6] in Table 1), entirely fanless (no moving parts). The cooling in the Dragon PTN nodes occurs via natural convection. -
Page 27: Specifications
MTBF of the backplane: 665 years at 25°C/77°F. 3.4 Power Consumption (Empty Node) Table 15 Power Consumption Description Node XT-2210-A, Node XT-2209-A Node XT-2206-A Node XT-1104-A AC PSU + backplane + NSM + CSM 35 W 3.5 Dimensions Node XT-2210-A/XT-2209-A Installation Dragon PTN Nodes Release 01 02/2018... -
Page 28: Cooling
Only the mains voltage plug can disconnect the node’s mains voltage. For DC in- put PSUs: never apply an excess input voltage and respect the correct polarity. The PSU might get damaged when an incorrect voltage source has been connected! Installation Dragon PTN Nodes Release 01 02/2018... -
Page 29: Weee Guidelines
5. WEEE GUIDELINES The Dragon PTN nodes are compliant with the European guidelines 2002/96/EG (WEEE = Waste of Electrical and Electronic Equipment). This compliancy is indicated at the back of the node by a crossed-bin symbol in Figure 25. Figure 25 Crossed-Bin Symbol The equipment that you bought required the extraction and use of natural resources for its production. - Page 30 Power Source Equipment Power Supply Input Power Supply Output Power Supply Unit Packet Transport Network SHDSL Symmetrical High Bitrate Digital Subscriber Line Rack Unit Wide Area Network WEEE Waste of Electrical and Electronic Equipment Installation Dragon PTN Nodes Release 01 02/2018...
