HELVAR 322 Installation Manual

High bay multisensor

Advertisement

Quick Links

High Bay Multisensor (322)
Installation Guide
70°
10.5 m
21 m
322 Korkean tilan multisensori
FI
Asennusohje
322 High Bay Multisensor
SV
Monteringsanvisning
322 Multisensore per Grandi Altezze
IT
Guida all'installazione
322 High Bay Multisensor
DE
Installationsanweisung
322 Multi-capteur en baie haute
FR
Guide d'installation
Helvar Ltd
Hawley Mill
Hawley Road
DARTFORD
DA2 7SY
UNITED KINGDOM
www.helvar.com
Helvar 322
High Bay Multisensor
Doc: 7860389, issue 1
Date: 2018-04-25
1
3
4 ×
2
DA+
DA+
DA–
3
4
⌀ 52 mm – 55 mm
DA+
DA–DA–

Advertisement

loading
Need help?

Need help?

Do you have a question about the 322 and is the answer not in the manual?

Questions and answers

Summary of Contents for HELVAR 322

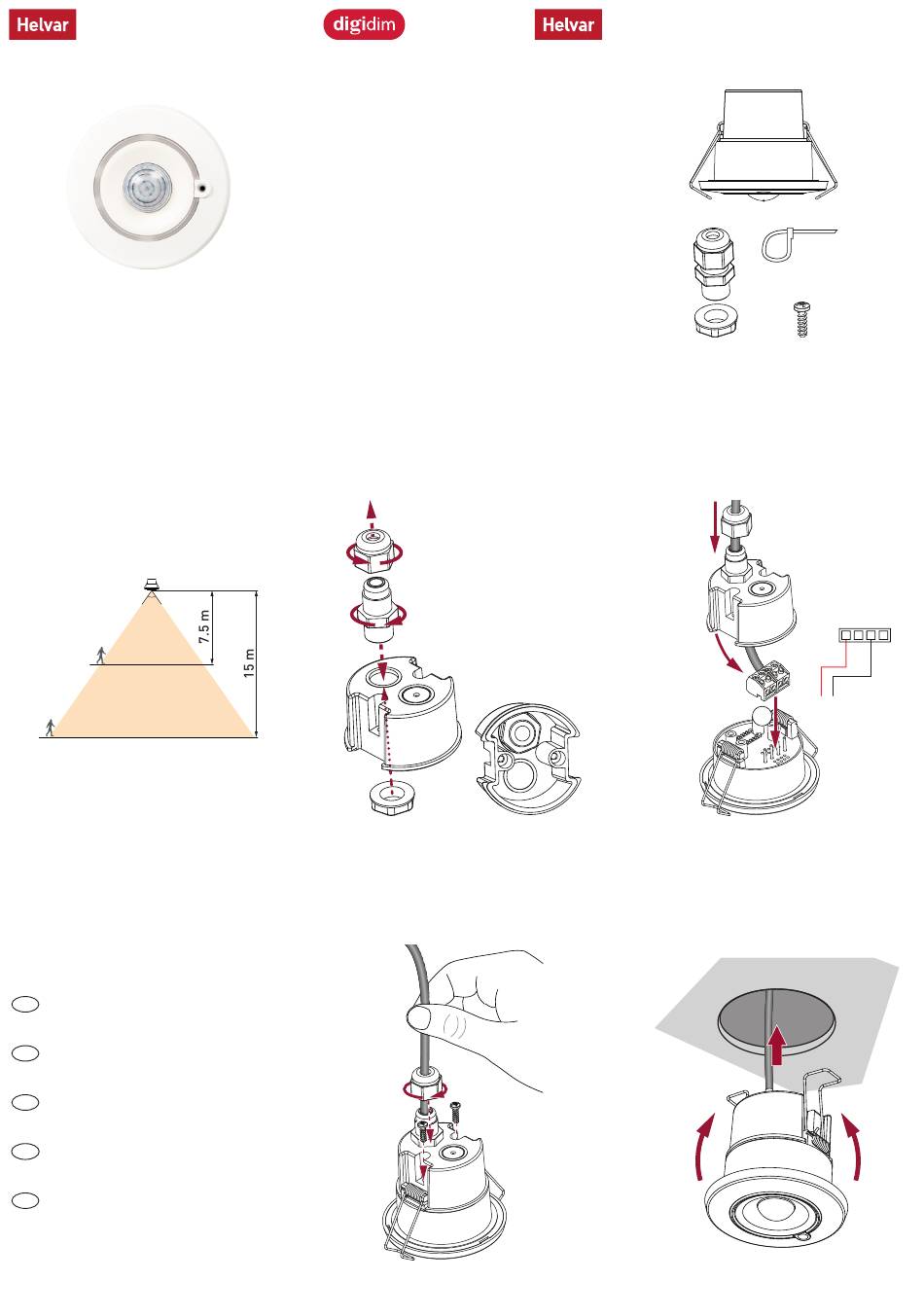

  • Page 1 10.5 m DA– 21 m ⌀ 52 mm – 55 mm 322 Korkean tilan multisensori Asennusohje 322 High Bay Multisensor Monteringsanvisning 322 Multisensore per Grandi Altezze Guida all’installazione 322 High Bay Multisensor Installationsanweisung 322 Multi-capteur en baie haute Guide d’installation...
