4 Installation Notes

• Handle the equipment with care.
• Add threadlocker to all screws before installing.
• Firmly tighten screws.
5 Installation – Mechanical & Electrical
1. Using the supplied hex key, remove the backcase screw from the keypad bottom.
2. Use the drilling template and drill required holes. For surface mounting, drill the 4 holes marked as B in the installation image
below; for single gang box mounting, drill the 2 holes marked as A in the installation image below.
3. Mount backcase on the wall with provided screws. Make sure to pull keypad cable through the center hole (marked C, below).
Keep keypad horizontal to the floor.

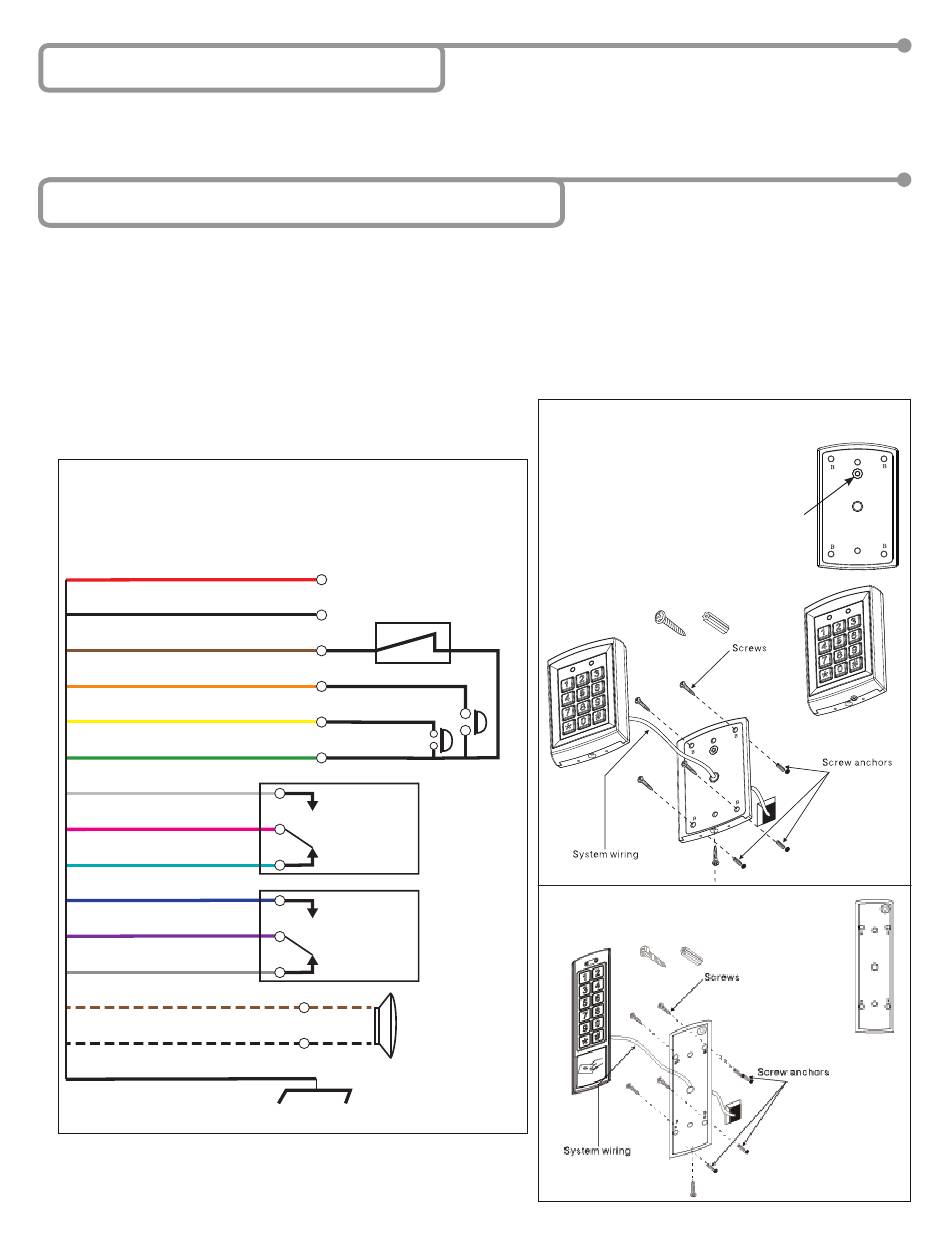

4. Connect the wires based on the following wiring diagram.
5. Mount keypad to the back cover by using the provided screws.
10KEYPADU / 10KEYPADUSL
1 Red (power +)
2 Black (power ground)
3 Brown (door magnet)
4 Orange (zone 1 exit button)
5 Yellow (zone 2 exit button)
6 Green (exit button – COM)
7 White (NO)
8 Pink (COM)
9 Aqua (NC)
10 Blue (NO)
11 Purple (COM)
12 Gray (NC)
13 Brown/White (door bell)
14 Black/White (door bell)
Shielding line
Page 2 of 5 Page 2 of 5
Wiring
}
Input DC: 12V to 24V
Input AC: 12V to 24V
Zone 1
UNLOCK
(dry)
Zone 2
UNLOCK
(dry)
+
8"
- 0.5W recommended
Shield ground
Installation
10KEYPADU
CAUTION: Do not damage
the tamper sensor.
10KEYPADUSL
A
C
A
