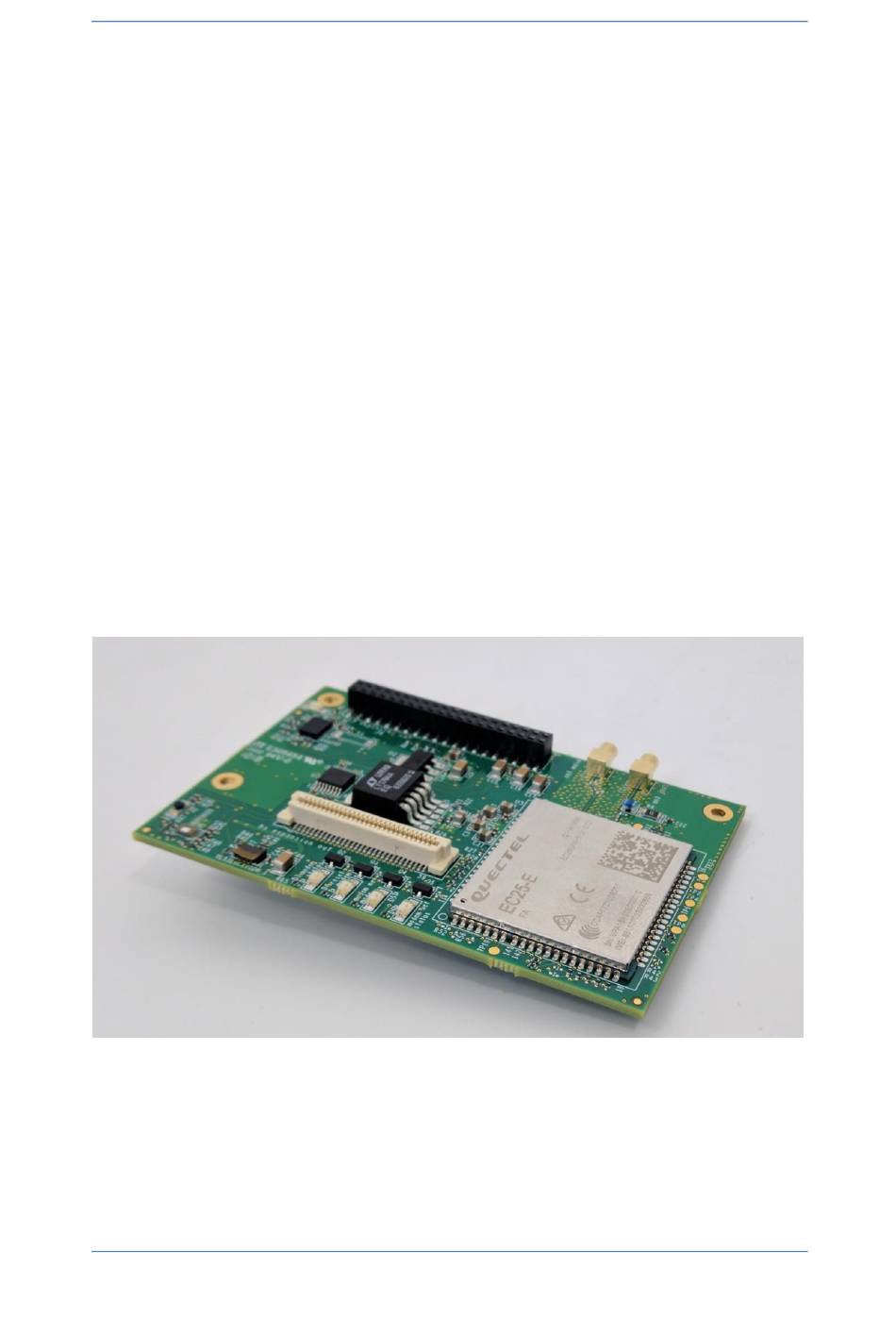

- Page 1 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Shiratech LTE and Sensor Mezzanine User Manual V0.1...
- Page 2 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Introduction Shiratech LTE and Sensor Mezzanine is a 96Boards compatible mezzanine board that adds LTE modem functionality and a set of sensors to any 96Boards compatible board, both consumer addition (CE) and enterprise edition (EE).
-
Page 3: Functional Block Diagram
Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Functional Block Diagram The mezzanine is connected to 96Boards carrier board through Low Speed and High Speed Connectors (left). Expansion connectors (right) allows to plugin additional 96Boards mezzanines as needed. -
Page 4: Power Supply
Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Power Supply The board accepts 5V and 1.8V from the 96Boards connector. There are two low dropout voltage regulators on the board providing 3.3V and 3.8V. Low dropout voltage regulator LD1117S33TR accepts input voltage of 5V and provide 3.3V 0.8A. - Page 5 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Quectel EC25 LTE Modem Quectel EC25 is a series of LTE category 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbit/s downlink and 50Mbit/s uplink data rates.
- Page 6 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual...
- Page 7 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual...
- Page 8 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Bosch BNO055 The BNO055 is a System in Package (SiP) integrating a triaxial 14 bit accelerometer, a triaxial 16 bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32 bit cortex M0+ microcontroller running Bosch Sensortec sensor fusion software, in a single package.
- Page 9 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual...
- Page 10 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Analog Devices ADUX1020 The ADUX1020 is a highly efficient photometric sensor with an integrated 14-bit analog-to- digital converter (ADC) and a 20-bit burst accumulator that works in concert with a flexible light emitting diode (LED) driver.
- Page 11 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual ST VL53L0CX The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance's unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.
- Page 12 Shiratech Solutions LTE and Sensor Mezzanine for 96Boards – User Manual Analog Devices ADT7410 The ADT7410 is a high accuracy digital temperature sensor in anarrow SOIC package. It contains a band gap temperature reference and a 13-bit ADC to monitor and digitize the temperature to a 0.0625°C resolution.
