The C-0703 power distribution module distributes DC power from a
single power supply.
!
2A supply included
!
Ideal when limited AC outlets are available
!
Works with Channel Vision cameras and RF amplifiers
!
Variable voltage source for other items (pre-set to 9 volts DC)
!
Plug-type terminal blocks and right-angle F-connectors for
convenient connections.
!
Four separate regulators for isolation of modules.
!
Regulated outputs short circuit protected
Variable supply voltage adjustment.
Use DMM to set voltage.
To power other modules, the variable output
power supply insures you will be ready.
Adjustable between 6 and 12 DCV, the supply is
factory set to 9VDC. When connecting the +
and - terminals, note the polarity requirement of
what you are powering.
2
Input-Loop Ou
C V
H A N N E L I S I O N
TM
Central
C-0703
Adjustable Output
6-12VDC
1000mA
(max)
F-type Outputs
-
+
12VDC 300mA
Connec ct a second C-0703
or a 15 VDC device
ut
15VDC
3Amps
(max)
Out-2
Out-2 Out-4
Out-1
Auxiliary Outputs
Out-1 Out-3
12VDC 200mA
(max each)
(max each)
Note polarity
CVT-2/4PIA-II
CVT-2/8PIA-II

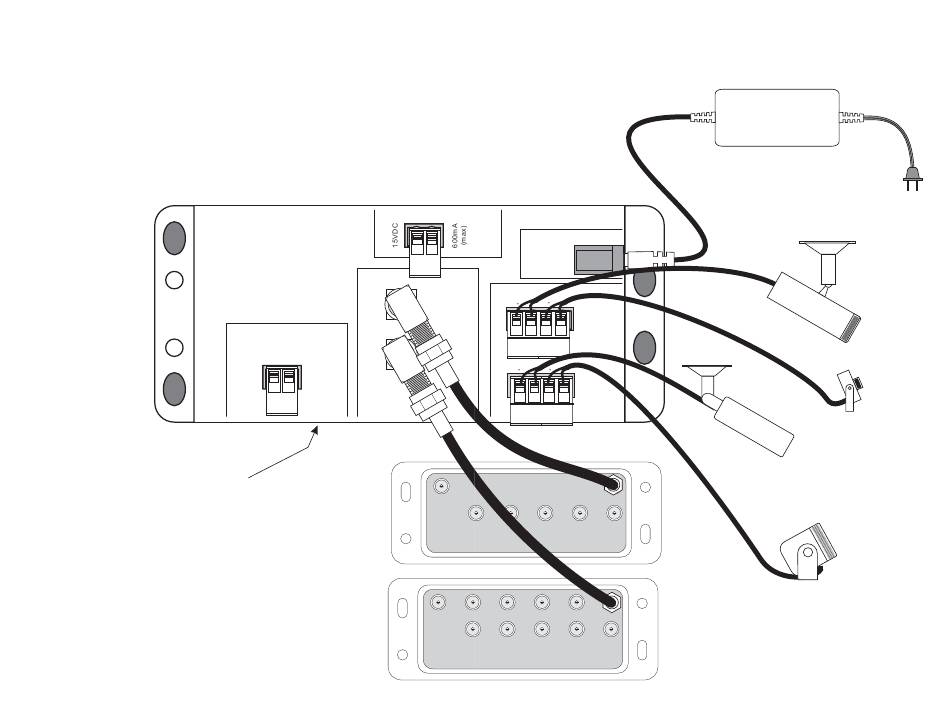

Total current draw must not exceed the rating of the
power supply. A 2amp power supply is included.
Connect up to 4 cameras
(12VDC up to 200mA each)
Input
Power all 12VDC Channel Vision
RF amps and amplified splitters
6010
5025
6005
5125
