ASSEMBLY

JACKSTAND

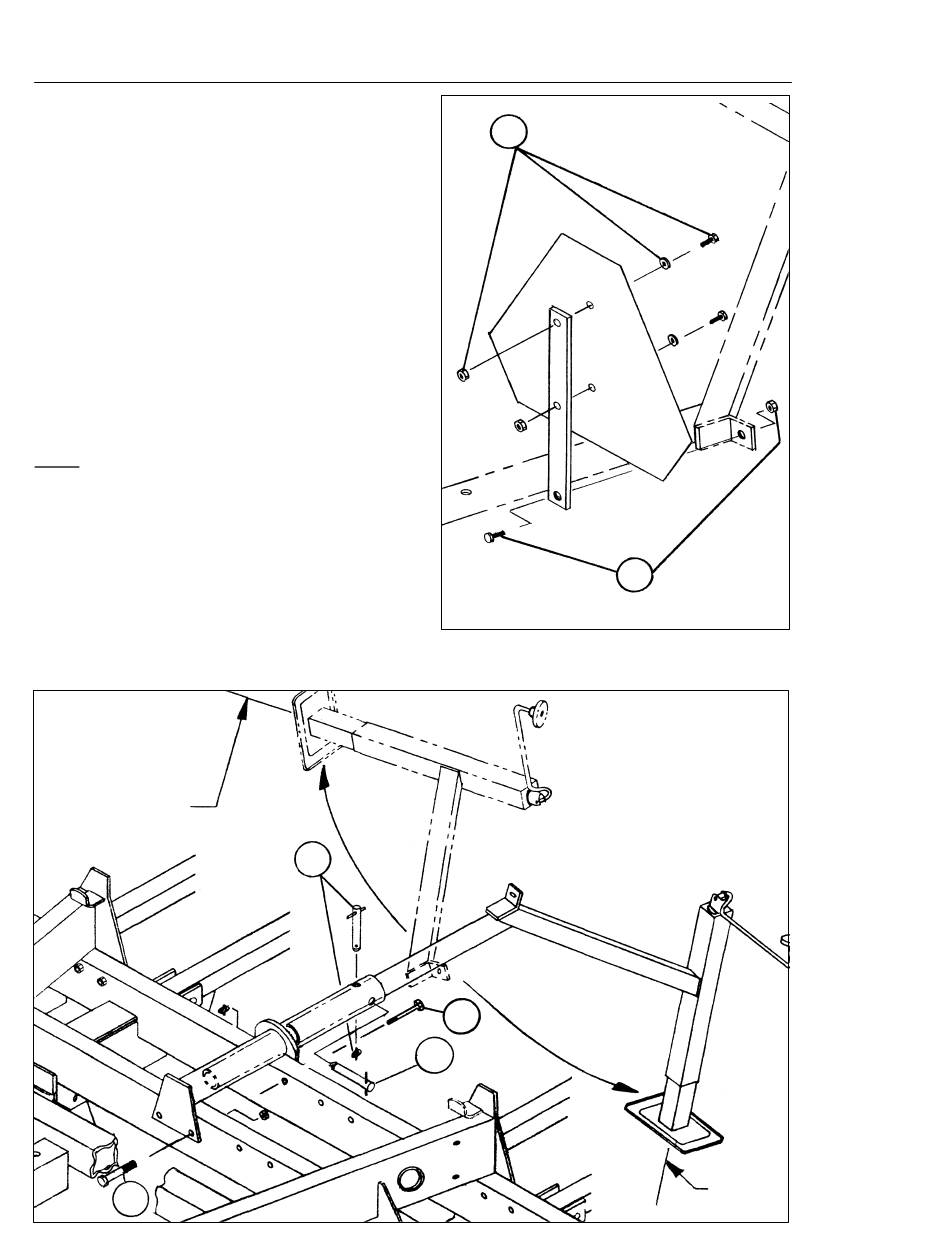

51. Position jackmount (82303) to rear of main
frame at the center of unit (Fig. 3-20).
Retain into position with four 5/8-11 x 3"
lg. capscrews (9390-128) and locknuts
(9801).
52. Insert jackstand (82307) into mount and
retain with 3/4" dia. x 5 1/4" pin (82412)
and klik-pin (91058) in desired position:
A. Align vertical holes and install pin for
"PARKED" position.
B. To maintain in "TRANSPORT" posi-
tion, ALIGN HORIZONTAL HOLES.

SMV EMBLEM

NOTE: For illustration purposes, jackstand
shown in transport position.
53. Install bracket strap (81952) to support
arm of jackstand (Fig. 3-21). Retain into
position with 1/4-20 x 1" lg. capscrew
(9390-005) and locknut (9936).
54. Install SMV Emblem (9829) to bracket
with two 1/4-20 x 3/4" lg. capscrews
(9390-003), flatwashers (9405-066), and
locknuts (9936).
FIG. 3-20
Transport
Position
51
FIG. 3-21
A
51
B
54
53
OM-00849
OM-00847
Parked
Position
