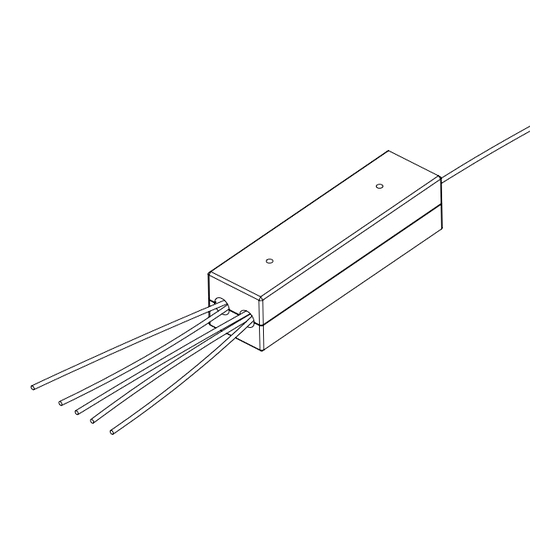

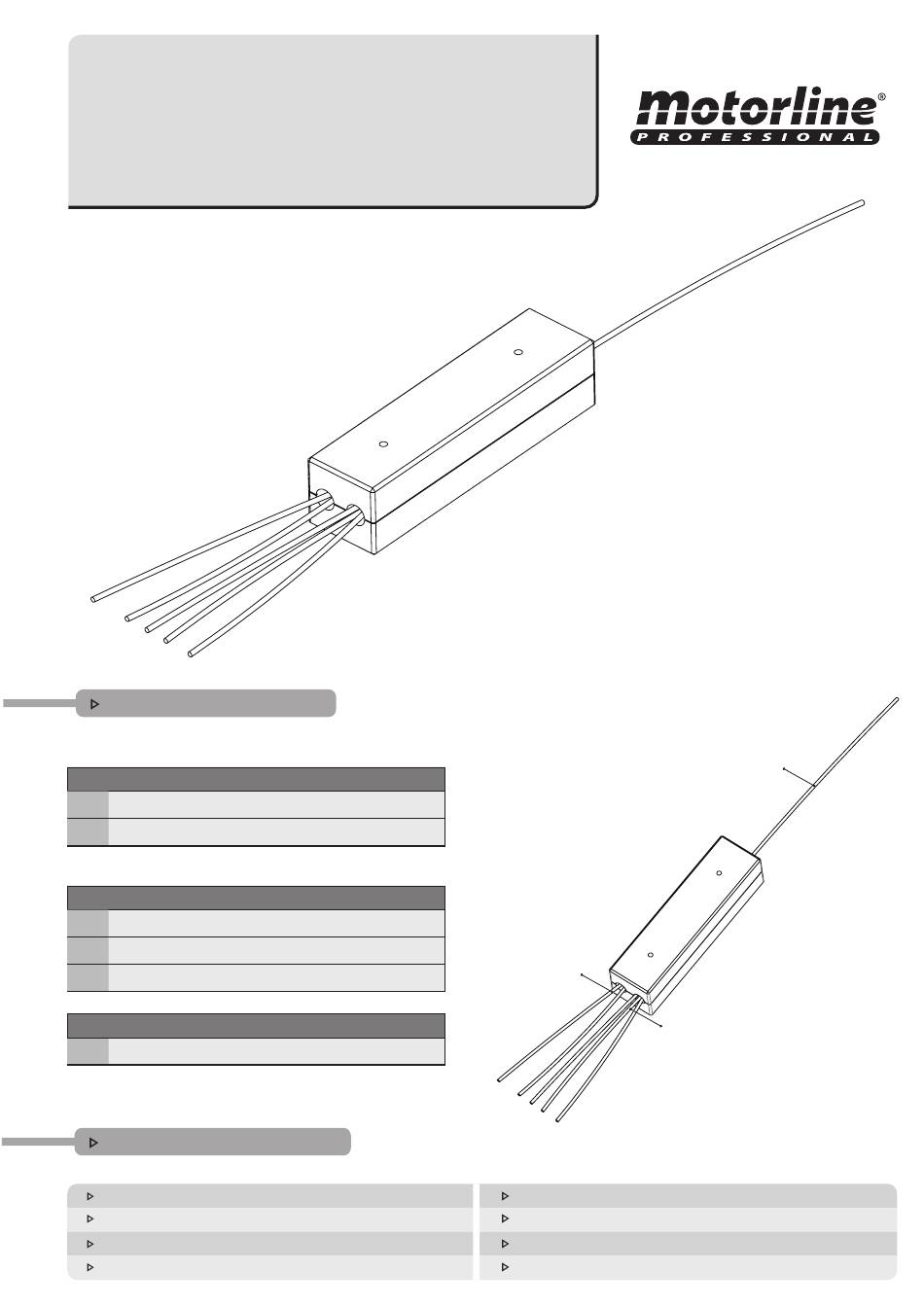

CONTROL BOARD
MC4SP
OPERATION MANUAL / PROGRAMMER
TECHNICAL INFORMATION
A
CN1: CONNECTORS OF CENTRAL'S POWER
1
Blue - Line Input AC230V (neutral)
2
Brown - Line Input AC230V (phase)
B
CN2: MOTOR'S CONNECTIONS
3
Black - Motor's Output AC230V (UP)
4
Blue - Motor's Output AC230V (COMUM)
5
Brown - Motor's Output AC230V (DOWN)
C
6
Antenna
TECHNICAL SPECIFICATIONS
Power Supply
Motor's Output
Operating Temperature
Frequency Transmission
AC230V; 50-60Hz
Nº of Channels
AC230V; 350W Máx
Code Type
-10°C to 65°C
Protection Level
433,92 MHz
Dimensions
A
B
C
15
Rolling Code
IP44
100x26x24mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Motorline MC4SP
Summary of Contents for Motorline MC4SP
- Page 1 CONTROL BOARD MC4SP OPERATION MANUAL / PROGRAMMER TECHNICAL INFORMATION CN1: CONNECTORS OF CENTRAL’S POWER Blue - Line Input AC230V (neutral) Brown - Line Input AC230V (phase) CN2: MOTOR’S CONNECTIONS Black - Motor’s Output AC230V (UP) Blue - Motor’s Output AC230V (COMUM) Brown - Motor’s Output AC230V (DOWN)
- Page 2 [MXS4SP] [MX4SP] PROGRAMMING The control board MC4SP has capacity for 15 different controllers. Once out of memory, 4 beeps will signal that the memory is full. Start each the following settings with the central disconnected from the mains. Add new controller Press and hold the "UP"...
