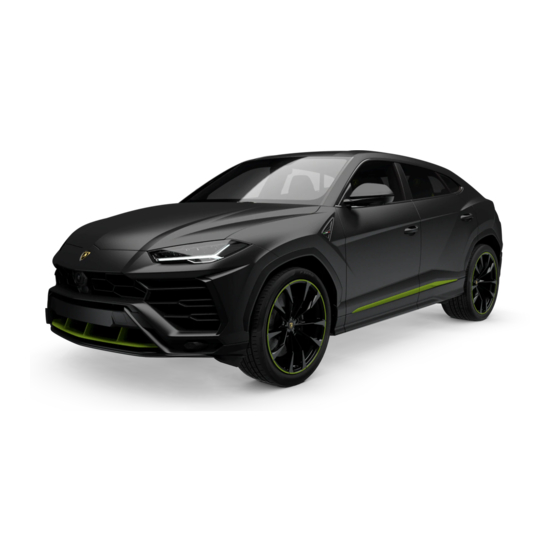

LAMBORGHINI URUS Installation Manual
  1. Manuals
  2. Brands
  3. LAMBORGHINI Manuals
  4. Automobile
  5. URUS
  6. Installation manual

LAMBORGHINI URUS Installation Manual

Hide thumbs Also See for URUS:

Advertisement

Table of Contents

For
:
LAMBORGHINI
URUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the URUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LAMBORGHINI URUS

Summary of Contents for LAMBORGHINI URUS

  • Page 1 INSTALLATION MANUAL LAMBORGHINI URUS...
  • Page 2 Package contents cable loom • Electronics • Bridge plug • Installation manual • Requested Tools side cutter • small screwdriver • ratch with 13‘ nut • Important! To be able to take the benefits of all technical advantages of your newly purchased additional electronics, please consider the following advices.
  • Page 3 Preparation for installation Do not perform the installation when the ignition is on! Switch off your vehicle! Open the hood. Lock all doors and close your vehicle. LOCK Wait 5 minutes after locking!!! Do not open any doors during this time. During this time all sensors of the vehicle switch off.
  • Page 4 PREPARATION Preparation Loosen the both clips to remove the engine cover. •...
  • Page 5 PREPARATION Preparation Loosen the both hose clamps to remove the air filter box. •...
  • Page 6 PREPARATION A: Manifold air pressure 1* B: Manifold air pressure 2* C: Camshaft sensor * +: Power supply* * Colors correspond to the marking on the wiring harness...
  • Page 7 INSTALLATION A. Manifold air pressure sensor 1 The manifold air pressure sensor 1 is located lower. •...
  • Page 8 INSTALLATION A. Manifold air pressure sensor 1 Disconnect the 3-pin plug-in connection at the manifold air pressure sensor 1 • and insert the supplied cable loom which is marked with (A) in between.
  • Page 9 INSTALLATION B. Manifold air pressure sensor 2 Disconnect the 3-pin plug-in connection at the manifold air pressure sensor 2 • and insert the supplied cable loom which is marked with (B) in between.
  • Page 10 INSTALLATION C. Camshaft sensor The camshaft sensor is located on the front of cylinder bank. • Disconnect the 3-pin plug-in connection at the camshaft sensor and insert the • supplied cable loom which is marked with (C) in between.
  • Page 11 INSTALLATION +. Power Supply Connect the red wire to the power supply. •...
  • Page 12 INSTALLATION Check again if all connections are seated correctly and reassemble the parts of the vehicle, if • necessary, in the reverse order. You can now close the engine hood and start the vehicle. • Function of the bridge plug With the bridge plug, you can return your vehicle to the serie state without removing the cable loom.
  • Page 13 Error description Solution tips • "The vehicle does not start" Repeat the installation step by step and check the proper fit of the connectors. • If the problem persists -> Instead of the electronics, insert the supplied bridge plug and restart the vehicle. •...
  • Page 14 Notes ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ———————————————————————————————...
  • Page 15 Notes ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ——————————————————————————————— ———————————————————————————————...
  • Page 16 V1.0...
