Basic clamping methods to rear bumpers
"C" Shape
Rear Bumper
F
or extended bumpers - Use the supplied extension plat to extend the
a s
s hown below for clamping

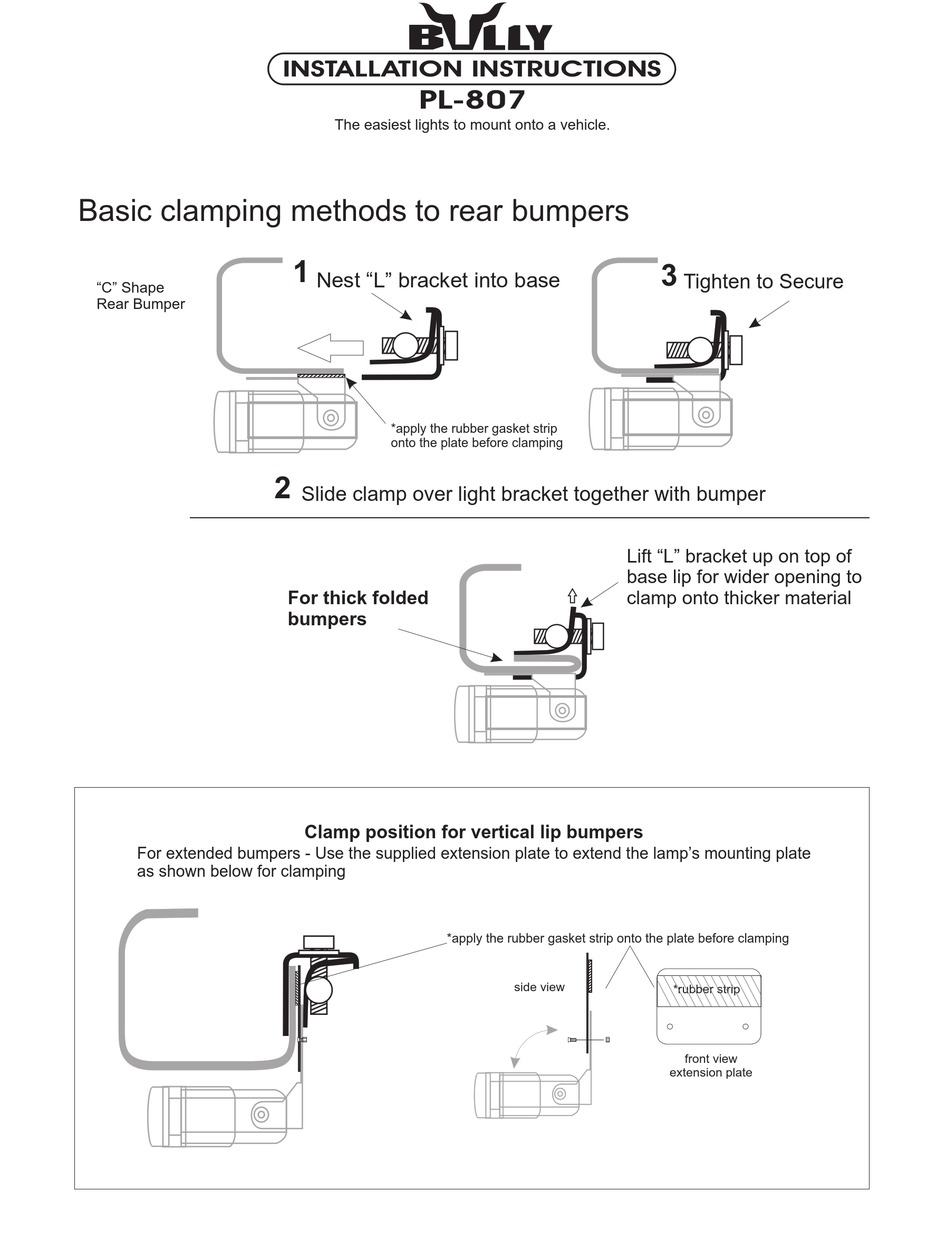

INSTALLATION INSTRUCTIONS
PL-807
The easiest lights to mount onto a vehicle.
1
Nest "L" bracket into base
*apply the rubber gasket strip
onto the plate before clamping
2
Slide clamp over light bracket together with bumper
For thick folded
bumpers
Clamp position for vertical lip bumpers
*apply the rubber gasket strip onto the plate before clamping
3
Tighten to Secure
Lift "L" bracket up on top of
base lip for wider opening to
clamp onto thicker material
e
lamp's mounting plate
side view
*rubber strip
front view
extension plate
Advertisement
Related Manuals for Bully PL-807
Summary of Contents for Bully PL-807
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS PL-807 The easiest lights to mount onto a vehicle. Basic clamping methods to rear bumpers Nest “L” bracket into base Tighten to Secure “C” Shape Rear Bumper *apply the rubber gasket strip onto the plate before clamping Slide clamp over light bracket together with bumper Lift “L”... -
Page 2: Parts List
After you have securely clamped your PL-807 backup lights onto your rear bumper. Locate your vehicle’s reverse light wires from the underside of your vehicle. Check behind your tail lights, find the (positive and negative ground) wires.
