5.8.
Move handle (3) down.
5.9.Move the sheet and align it agains the lower part of guide 5Â.
5.10.Perform next creasing.
5.11.Move handle (3) up.
5.12. Repeat the steps 5.7-5.11 with guide 5A.
5. Maintenance
(fig. 3).
Your creasing machine is designed to work for a long time.
Creasing machine does not require professional maintenance and greasing.
To adjust the gap between the creasing blade and the table use nuts Ì10 at the bottom
of the table (1).
To adjust the gap between the creasing blade and the table at th
blade use screw M8 at the bottom of the table (1) between the nuts Ì10.
IMPORTANT!
Do not release four M5 nuts marked with red paint.
Your creasing machine will serve longer if you move the handle (3) into upper
position after the work is finished.
Ì8
Ì5
Ì10
Ì5
Manufacturer:
Maping Co
Atomitie 5F, 00370 Helsinki, Finland
tel: +358 9 562 6022
fax: +358 9 562 6215
e-mail: support@maping.com
http://www.maping.com
e central part of the
Ì5
Ì10
Ì5

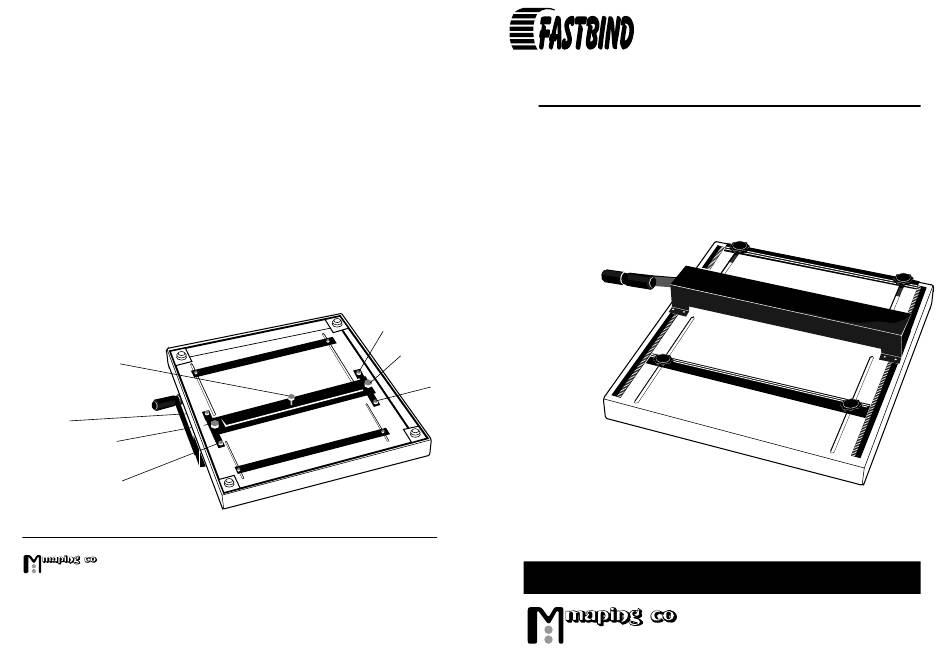

fig. 3
FASTBIND C400
Manual creasing machine
USER'S
MANUAL
