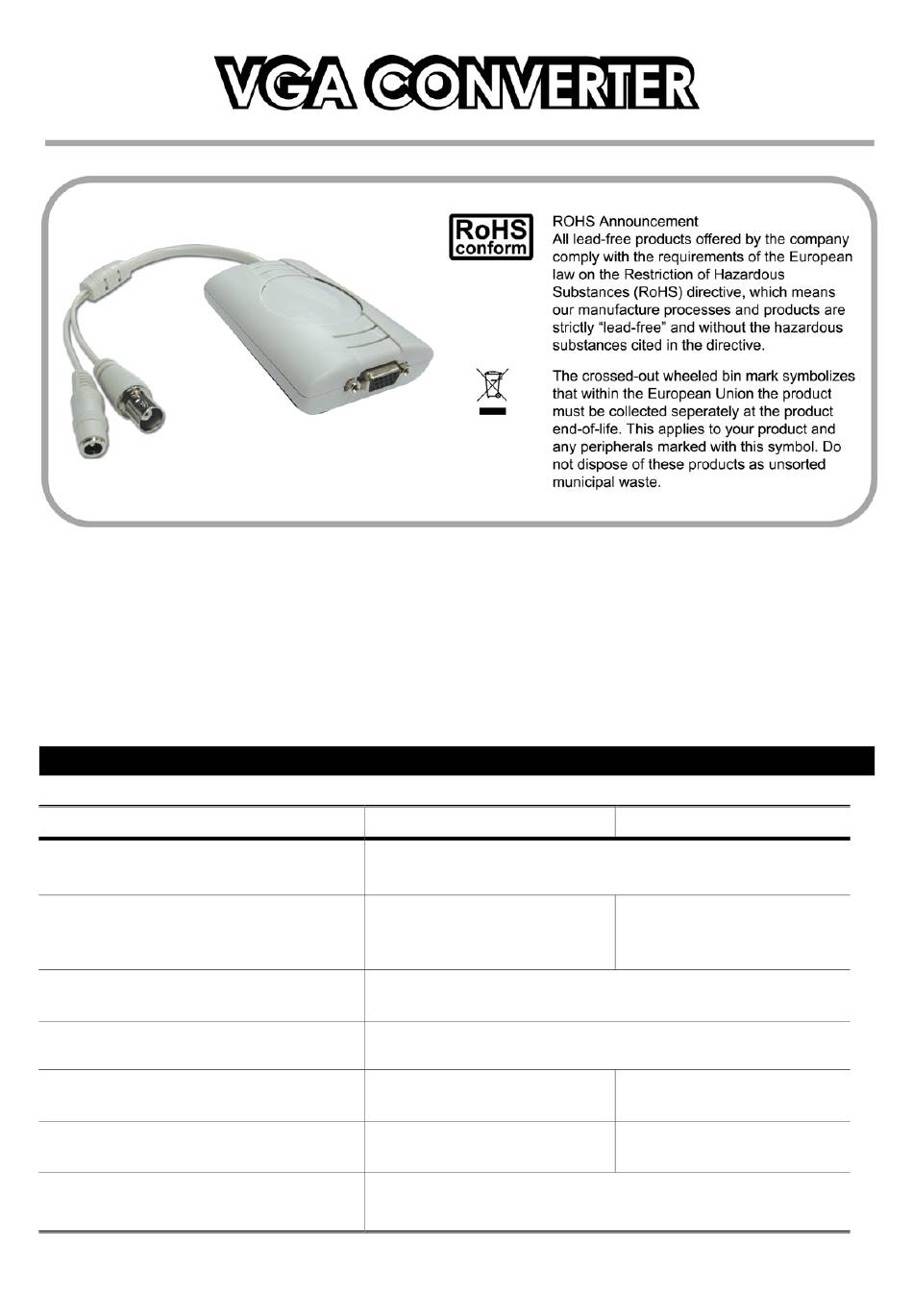

* Please read instructions thoroughly before operation and retain it for future reference.

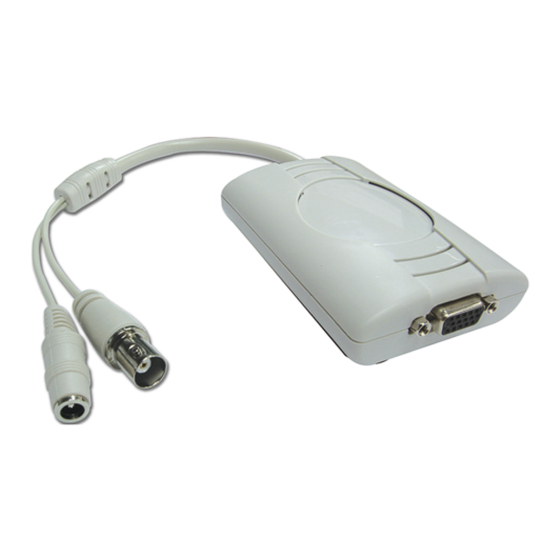

SPECIFICATIONS
Connection
Output Resolution
Analog non-interlaced RGB Output
Support
NTSC / PAL System Auto Detection
Power
Power Consumption
Dimensions (mm)**
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
Two Options selectable:
> 1024×768@60Hz
> 1280 x 1024@60Hz
External adaptor DC12V
(±10%)
MODEL 1
DVR Side: MONITOR OUT
Monitor Side: D-Sub (VGA)
YES
YES
@ 0.5A
2.5W
87(L) × 64(W) × 24(H)
MODEL 2
Up to 1024×768@60Hz
External adaptor DC5V
@ 0.5A
2 W
VGA02A_02_V1.3
27Z
Advertisement
Related Manuals for Avtech VGA02A
Summary of Contents for Avtech VGA02A
- Page 1 * Please read instructions thoroughly before operation and retain it for future reference. SPECIFICATIONS MODEL 1 MODEL 2 DVR Side: MONITOR OUT Connection Monitor Side: D-Sub (VGA) Two Options selectable: Output Resolution > 1024×768@60Hz Up to 1024×768@60Hz > 1280 x 1024@60Hz Analog non-interlaced RGB Output Support NTSC / PAL System Auto Detection...
- Page 2 CONNECTION STEP1: Monitor Connection Connect the monitor’s VGA D-Sub connector to the VGA jack of the VGA converter (A to A). STEP2: DVR Connection Connect the VGA converter with a RCA cable with BNC connector, or a coaxial cable to DVR’s main monitor output jack (B to B).
