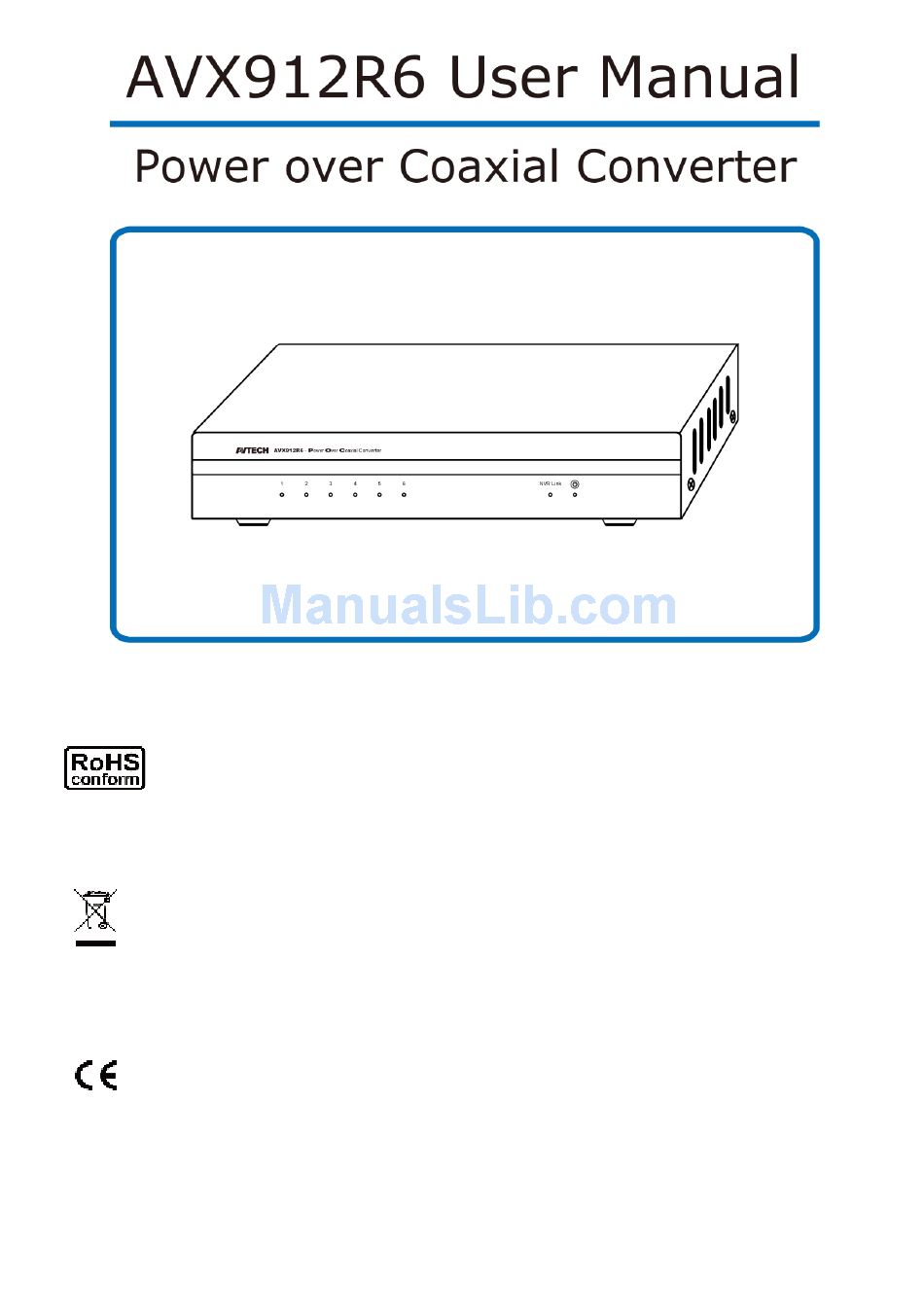

337Z
`
All lead-free products offered by the company comply with requirements of the
European law on the Restriction of Hazardous Substances (RoHS) directive, which
means our manufacture processes and products are strictly "lead-free" and without
the hazardous substances cited on the directives.
The crossed-out wheeled bin mark symbolizes that within the European Union the
product must be collected separately at the product end-of-life. This applies to your
product and any peripherals marked with this symbol. Do not dispose of these
products are unsorted municipal waste. Contact your local dealer for procedures for
recycling this equipment.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error right to
revise or remove any content in this manual at any time.
X912r6_V0.9
Advertisement
Table of Contents
Related Manuals for Avtech AVX912R6
Summary of Contents for Avtech AVX912R6
- Page 1 337Z All lead-free products offered by the company comply with requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited on the directives. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
- Page 2 GENERAL DESCRIPTION AVX912R6 is a Power over Coaxial converter, which is capable of signal conversion, so that users can get network system functionality over existing coaxial cabling. The device is a right solution to upgrade the analog system to current digital system with low setup costs. What’s more, it also enables users the ability to connect multiple IP cameras to NVR, and meanwhile supply power to the connecting cameras.
- Page 3 Note: The other LAN port on AVX912R6 is to connect AVX912R6 to another one to expand the number of cameras in use. Step 2: Plug the existing coaxial cables into PoC ports of AVX912R6 and coaxial port of AVP IP cameras. (One camera requires one coaxial cable and up to 6 AVP IP cameras) Step 3: Connect power adapters to NVR and AVX912R6.
- Page 4 Data transmission * Please see “Product Overview” to see where LED status indicators are located on AVX912R6 ** If you power a camera from 48V DC adapter in the first place, and then, you connect 12V DC adapter to the camera as well, the camera will receive power via coaxial cables and the camera adapter at the same time;...
