Connecting Cables

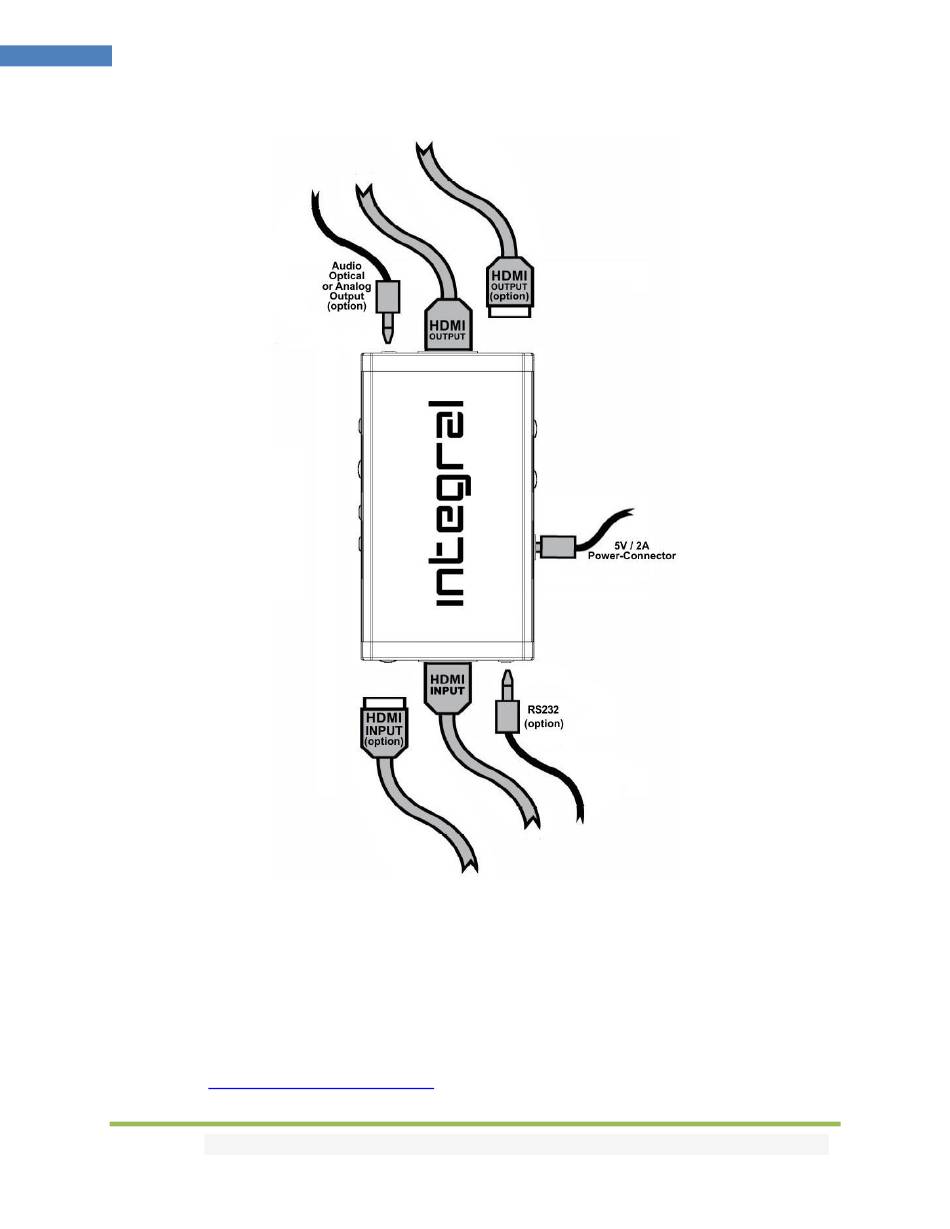

To use your 4K Integral 2:

• Connect a HDMI input cable to the HDMI input.
• Connect a HDMI output cable to the HDMI output.
• Connect the Integral 2 power supply.
• Connect any additional HDMI input/output cable, RS232 or any audio output cable (optional).
HDMI/HDCP 1.x devices at output must be connected to TOP (Downscale) Output port. Make sure that
you are using 600MHz certified HDMI 4K cable
600MHz 18Gbps link in your setup.
rd
Disclaimer: 3 party and/or custom firmware providing extra features are not covered in this manual.
if you plan to set up a 4K60 4:4:4 8b or 4K60 4:2:2 12b
