Summary of Contents for Sim2 Grand Cinema HTL40 LINK

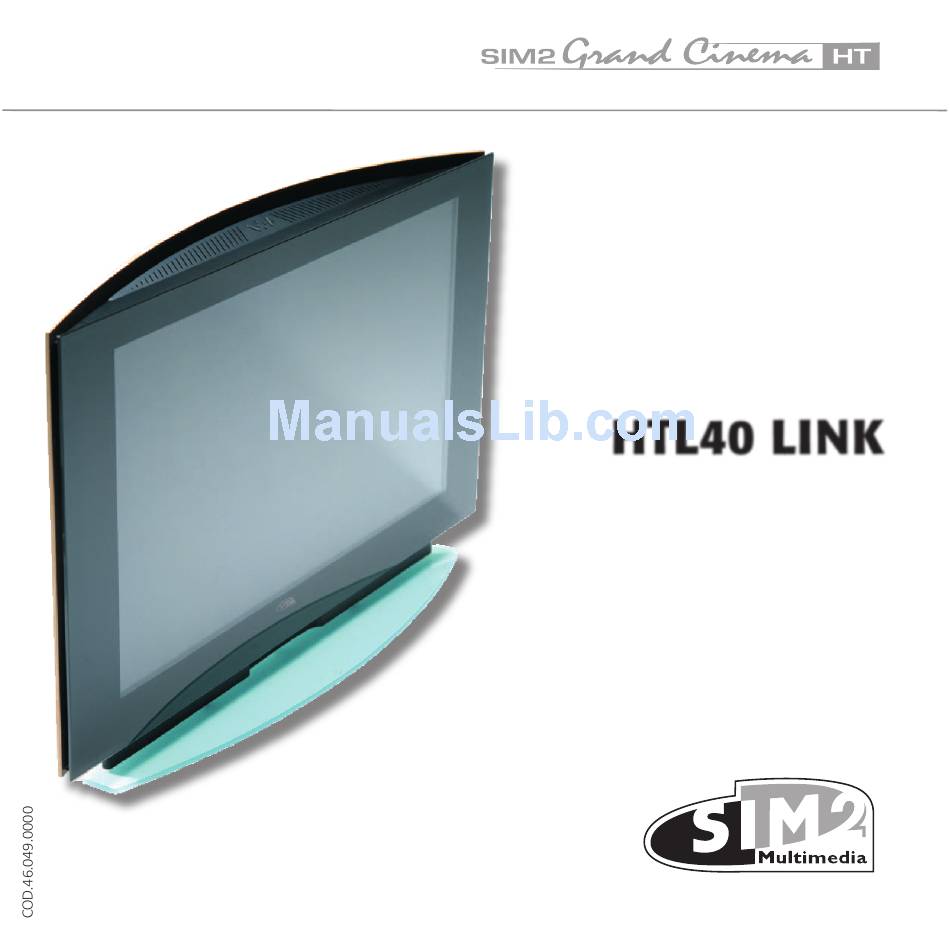

- Page 1 User and installation manual HTL40 LINK...
- Page 2 ������� BACKLIGHT Illuminates the keys on the remote control INPUT Displays the Source Selection menu. Not active in this model. MENU - Activates the On Screen Display menus and allows navigation though the various pages. FREEZE Freezes a moving picture. Programmable function key Programmable function key AUTO...
-
Page 3: Introduction
������� 1 INTRODUCTION Congratulations on your choice of the innovative SIM2GrandCinema HTL40 Link system! - Page 4 TFT-LCD technology and an expert system for digital processing of video signals. Your HTL40 LINK system is composed of two refined and elegant units. The 40’’ screen reflects the state of the art of TFT-LCD tech- nology, with 1366x768 pixel resolution and the ability to display up to 16.7 million colours.
-
Page 5: Important Safety Instructions
The HTL40 LINK system consists of two parts connected by a fibre optic cable: the DigiOptic™ Image Processor and the screen. In this manual references to the DigiOptic™ Image Processor unit and to the screen unit refer to the two units that make up the system. -
Page 6: Parts List
������� PARTS LIST SCREEN � � DIGIOPTIC™ IMAGE PROCESSOR � ON/OFF power switch Mains power supply Motorised screen outputs Inputs Fibre optic cable connectors Fibre optic cable connectors. � Fused power socket. Threaded bushes. Keypad Curved rear panel. Screen Mains power switch �... - Page 7 • Read this manual carefully and keep it in a safe place for future consultation. This manual contains important information on how to install and use this equipment correctly. Before using the equipment, read the safety prescriptions and instructions carefully. Keep the manual for future consultation.
- Page 8 ������� • Disconnect the unit from the mains power supply in the event of electrical storms and when not in use. To avoid damage that could be caused by lightning striking in the vicinity of your home, disconnect the units in the event of electrical storms or when the system will remain unused for prolonged periods.
-
Page 9: Unpacking
������� 3 UNPACKING To remove the HTL40 LINK system from its carton follow the figures on the left (Fig. 4). � � The carton and packaging should be � retained for future use and in the unlikely event that your system needs to be re- turned for repair. -
Page 10: Pack Contents
������� PACK CONTENTS Three-core fibre optic cable The packing carton contains the following parts: - Screen - Curved rear panel - DigiOptic™ Image Processor - remote control - four 1.5V AAA batteries (for remote control) - DigiOptic™ Image Processor power supply unit - three power cables (EU, UK, USA) for the screen - three power cables (EU, UK, USA) for the DigiOptic™... -
Page 11: Installation
Otherwise the structure must be reinforced before installing the unit. Fix the HTL40 LINK screen to the VESA interface system by means of 4 screws (M8), as shown in (Fig.7). - Page 12 ������� � � � � � The fixing system is not supplied with the HTL40 LINK system Make sure the components listed below are readily available: - TFT-LCD flat screen - curved rear panel. - the fixing screws. - spacers for installation with VESA interface...
- Page 13 ABLETOP INSTALLATION WITH SUPPORT BASE For tabletop installation of the unit you will need the tabletop support, which is sold separately from the HTL40 LINK system. For more details on the tabletop support and the various models available contact your nearest dealer.
-
Page 14: Connecting The Two Units
������� Caution! When fitting the rear panel make sure it is always kept parallel to the screen. Ensure that the central opening of the curved rear panel is well aligned with the correspond- ing metal parts located in the rear of the flat panel screen: excessively forceful insertion of the curved rear panel could damage the edges of its internal openings. -
Page 15: Connecting The Video Sources
DigiOptic™ Image Processor. To obtain the best performance from the HTL40 LINK system, con- nect the various signal sources using good quality cables designed for video applications (rated impedance 75 [IMG]). -
Page 16: Graphics Rgb
HTL40 LINK system rather than on the source because the HTL40 LINK system is equipped with Faroudja’s sophisticated directional correlation deinterlacing technology (DCDi™). - Page 17 Power supply unit Motorised projection screen � Television receiver HDTV receiver DVD player Videorecorder Game console Television receiver DVD player Videorecorder Video camera Game console Television receiver DVD player Videorecorder Video camera Game console ������� Computer Home automation HDMI systems �...
-
Page 18: Switching On And Off
������� 5 SWITCHING ON AND OFF The HTL40 LINK system consists of the Screen and the DigiOptic™ Image Processor (which is also the system control centre). The DigiOptical Image Processor sends commands to the screen and receives operating status information from the screen and function commands from the user. -
Page 19: Switching On/Off From Stand-By
If power is disconnected from the Screen unit (e.g. setting the mains power switch to the “O” position or inadvertently unplugging the power cable), to restart the HTL40 LINK system also power-off the DigiOptic™ Image Processor unit and repeat the power-up sequence described at points 1 and 5. -
Page 20: Keypad
������� 6 KEYPAD The keypad on the top of the screen features eight keys providing the facility for complete control of the unit even without the remote control. Sets screen to stand-by. Displays information concerning the displayed video/graphic signal and the operating status of the system. -
Page 21: On Screen Menus
8 ON-SCREEN MENU All system functions can be activated from the keypad or remote control with the aid of a practical and comprehensive system of on screen menus. INPUTS The input selection menu is called by pressing 0 on the remote control and, when no other menu is displayed, also using the ▲... -
Page 22: Picture
������� Some adjustments (e.g. BRIGHTNESS and CONTRAST) are associated with a numerical value that can be varied within the set limits us- ing the ▶ and ◀ keys. For others (e.g. VIDEO TYPE) you can choose between two options presented on the same line (and selectable using the ▶... -
Page 23: Image
SHARPNESS MODE This allows you to select the type of processing associated with sharpness adjustment. In the case of a progressive or interlaced video signal VIDEO mode is advisable; with PC graphic signals use GRAPHIC mode . FILTER This allows you to select the mode in which the input signal is processed. -
Page 24: Colour Temperature
������� PANORAMIC: stretches the 4:3 image, slightly cropping the upper and lower parts. Panoramic is ideal for displaying a 4:3 image on the 16:9 screen of the Display. PIXEL TO PIXEL: displays the image as it is input without adapting it to the screen. -
Page 25: Setup
LANGUAGE Lists the languages available for the On Screen Display menus. INPUTS LIST In order to make the HTL40 LINK system increasingly flexible, the � functions described below make it possible to modify the inputs selection menu and adapt it so that it matches the requirements �... -
Page 26: Source Information
������� TEXT INSERT Characters are entered using a specific text input menu (Fig.25). This menu provides the facility to store text strings easily and quickly. ����� ���������������� � ��������������������� ��� � ���� � � ������ � ������� Text input mode is same whether you are editing an existing name or entering a name for the first time. -
Page 27: Memories
OSD TIMEOUT Determines the On Screen Display timeout. When the On Screen Display appears it will remain displayed for the time set in this parameter starting from the time the last key was pressed. The adjustment is made using the ◀ (decrease) and ▶(increase) keys within a 5-60 second timeframe. -
Page 28: Info
������� RECALL MEMORIES To retrieve memories select the required line and press the ▶ key. The parameters stored in the selected memory will be applied to the displayed image, while a confirmation message will be displayed to confirm the operation ‘MEMORY 1 RECALLED. ’ . The retrieved memory is associated with the specific source and signal type and called automatically whenever that specific combination of source and signal type is selected. -
Page 29: Cleaning And Maintenance
• Make sure the video or graphic signals supplied by the source are compatible with the HTL40 LINK technical specifications and, in particular, with the selected DigiOptic™ Image Processor input. • Check the condition of the cables used to connect the DigiOpti- cal™... -
Page 30: Optional Accessories
• Adjust FREQUENCY and PHASE parameters in the IMAGE menu to optimise the vertical detail of the displayed image. 11 OPTIONAL ACCESSORIES You can purchase the HTL40 LINK screen support base from your dealer as optional accessory. Use only original or SIM2 Multimedia approved accessories. -
Page 31: Additional Information
12 ADDITIONAL INFORMATION A TECHNICAL SPECIFICATIONS Screen ISPLAY Technology Thin Film Transistor - Liquid Crystal Dis- play Resolution: 1366x768x3 pixel, 3147264 pixels for high definition images Dimensions : 40 ‘’, image aspect 16:9 native Brightness: 600 cd/m2 Contras : 1000:1 Vertical viewing angle: +/- 85 °... - Page 32 ������� Input/Output: 3-channel fibre optic link Control: Panel (keypad), remote control, via RS232 from PC or home automation devices Horizontal frequency: from 15 to 80 kHz (up to UXGA, 60 Vertical frequency: 48 -100 Hz Video standards: automatically selected (PAL, B,G,H,I,M,N,60, 3.58 and 4.43) High definition video: ATSC HDTV (480p, 720p, 1080i,...
-
Page 33: B Dimensions
������� B DIMENSIONS SCREEN ����� ���� ���� ��� ��� Unit of measurement: mm DIGIOPTIC™ IMAGE PROCESSOR � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... -
Page 34: C On-Screen Menus Layout
������� C ON SCREEN MENU LAYOUT �������� ��������������� ������ ���������� ���������� ��������� ��������� ���������� ���������� �������� �������� ����� ����� ���� ��������� ��������� ������ ������ ������ ������������ ���������� ���������� ��������������� ��������������� ���������������������������������� �������������������������������������� ������ Video • S-Video ������ ������ ����������������� ����������������� �����������������... - Page 35 �������������� ������ �������� ���� ������������� �������� � ���������������� ���� �������� ����������� � � ���������� ����������� ��������� �������������� ������������ ����������� ���������� � ��������� � ����������� � ����������� � �������������������� � �������������������� ��� ���������������� � ������������������� � ������������������� � ��������������� � ��� �� ������������...
- Page 36 ������� �������� �������� ������� �������������������� ��������������������� ����������������������� ��������������������� ������ �������������������� ����� ���������������� � ��������������������� ��� � ���� � ������ � ������� � ���� ���� � � ���� ��� � � ���� ���� � � � �...
-
Page 37: Table Of Contents
SUMMARY 1 INTRODUCTION 2 IMPORTANT SAFETY INSTRUCTIONS 3 UNPACKING Pack contents 4 INSTALLATION Positioning the two units Connecting the two units Connecting the video sources 5 SWITCHING ON AND OFF Switching on/off from stand-by 6 KEYPAD 7 REMOTE CONTROL 8 ON SCREEN MENUS Inputs Main Menu Picture... - Page 38 Little Horsted Nr. Uckfield, East Sussex TN22 5TT Phone +44.01825.750850 • Fax +44.01825.750851 www.sim2.co.uk • e-mail: kate.buckle@sim2.co.uk SIM2 Multimedia è certificata • In accordance with the manufacturer’s constant product development programme, product specifications and design are subject to changes without...
