Summary of Contents for Sim2 Grand Cinema HTL40

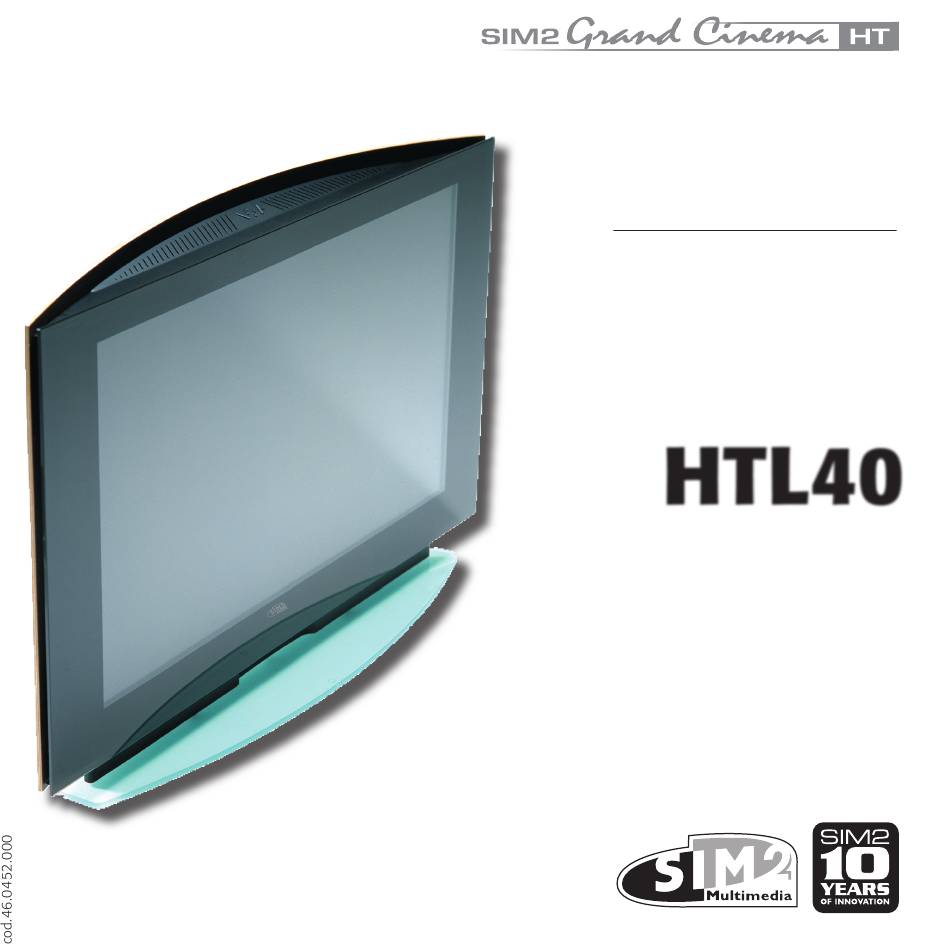

  • Page 1 Manual and installation guide HTL40...
  • Page 2 �� BACKLIGHT Illuminates the keys on the remote control STAND-BY LIGHT Switches system to stand-by. 0-9 Keys Switch the projector on from stand-by and allow direct source selection. SOURCE Displays the Sources Selection menu. ESCAPE Deactivates the On Screen Display. Up/Down/Left/Right Arrow keys Not active in this model.
  • Page 3: Introduction

    �� 1 INTRODUCTION Congratulations on your choice of the innovative SIM2 GrandCinema HTL40 system!
  • Page 4 �� The new HTL40 flat screen offers the ideal combination between eliminate the swirl effects that can sometimes mar the performance top TFT-LCD technology and an expert system for digital processing of LCD screens when displaying moving images. of video signals. All image adjustments can be performed from the remote control with the aid of the On Screen Display;...
  • Page 5: Important Safety Instructions

    �� 2 IMPORTANT SAFETY INSTRUCTIONS CAUTION! To reduce the risk of electric shock, disconnect the power supply cable on the rear panel before removing the cover of the screen. For technical assistance refer to trained personnel authorised by the manufacturer. This symbol indicates the possible electric This symbol indicates the presence of impor- shock hazard associated with uninsulated live...
  • Page 6 �� PARTS LIST 1 Fused power socket. 2 Bushes. 3 Keypad. 4 Curved rear panel 5 Screen. � 6 Main power switch � ��� ��� ��� � � � ��� ��� � ���� ��� � ��� �� � � � �...
  • Page 7 �� • Read this manual and keep it safe This manual contains important information on how to install and � use this equipment correctly. Before using the equipment, read the ����� safety prescriptions and instructions carefully. Keep the manual for �����...
  • Page 8 �� • Position the unit on a stable surface. The screen must be positioned on a suitable stable surface or be installed using a bracket for fixed ceiling or wall installation. Never use the screen by resting it on either of its sides or on the rear panel. •...
  • Page 9: Unpacking

    �� 3 UNPACKING To remove the HTL40 system from its carton follow the figures on the left (Fig. 3). � � The carton and packaging should be retained for future use and in the unlikely event that your � system needs to be returned for repair. �...
  • Page 10: Pack Contents

    �� PACK CONTENTS Curved rear panel Screen Instruction manual Remote control HDMI cable TM-DVI 1.5 V AAA batteries Power cables HDMI TM-HDMI TM cable Europe, UK, US Fig.4 The carton should contain the following: - screen - curved rear panel - remote control - four 1.5V AAA batteries (for remote control) - three power cables (EU, UK, USA) for the screen...
  • Page 11: Installation

    345 N, 35 kg) wall mounting operations should be carried secured, thus making it possible to position the display freely. Finally, out with at least two people. Sim2 Multimedia declines all secure the rear panel to your VESA interface (not included).
  • Page 12 �� TABLETOP INSTALLATION WITH SUPPORT BASE (OPTIONAL) Caution! Do not supply power to the panel by plugging the power For tabletop installation of the unit you will need the tabletop sup- cable into the mains socket outlet until you have finished port, which is sold separately.
  • Page 13: Connecting The Video Sources

    �� CONNECTING THE VIDEO SOURCES The video signal inputs and the RS-232 port are located at the rear of the panel. Cables from video sources and the cable from an external control device (if present) must be connected to these inputs. To obtain the best performance from the HTL40 system, con- nect the various signal sources using good quality cables designed for video applications (rated impedance 75 ).
  • Page 14 PC or home automation device. video signal from a source equipped with an SCART connector can Ask SIM2 for the drivers to install on your PC and documentation be connected to this input.
  • Page 15: Switching On And Off

    �� 5 SWITCHING ON AND OFF Unit HTL40 can be controlled either from the remote control or Table 2 from the keypad located on the top of the screen. ������� ����� POWER-UP SEQUENCE ������� 1) Set the LCD screen power switch at the bottom of the rear ������...
  • Page 16 �� Switching off the system (Fig.12): • from the remote control (key • from the screen keypad (key Fig.11 To allow the unit to cool down do not set the mains power switch to the “O” position or unplug the power supply cable immediately after having set the system to stand-by mode.
  • Page 17: Keypad

    �� 6 KEYPAD The keypad on the top of the screen features eight keys providing the facility for complete control of the unit even without the remote control. Menu Activates the On Screen Display menus Sets screen to stand-by. and allows navigation though the vari- ous pages.
  • Page 18: On-Screen Menu

    �� 8 ON-SCREEN MENU All system functions can be activated from the keypad or remote the < symbol. control with the aid of a practical and comprehensive system of on In general, the selection become operational for all inputs after screen menus.
  • Page 19: Picture

    �� of ambient lighting. In low ambient light conditions the screen may using the keys). appear too bright; in this case it is advisable to reduce backlighting Other adjustments (identified by the symbol <) are associated with intensity. On the other hand, in very bright ambient light conditions submenus, which appear as a superimposed window in which the backlighting intensity should be increased.
  • Page 20: Image

    Video mode is advisable; with PC graphic signals use Dinamically increases preceived contrast according to pictures dis- Graphic mode . played. Puronero is a SIM2 proprietary features. FILTER Table 3 This allows you to select the mode in which the input signal is ������...
  • Page 21 �� NORMAL: projects the image occupying the full height of the screen the global perception of contrast while attenuating the visibility of while maintaining the aspect ratio of the input signal. When the input details in darker areas of the picture. With the most common video signal aspect ratio is 4:3 black vertical bands are displayed on the sources a parameter value of 2.2 will give high quality pictures with right and left of the picture.
  • Page 22: Setup

    �� Y/C DELAY MENU In the case of Video and S-Video signals, it may be necessary to correct horizontal colour misalignment within the projected image. LANGUAGE For a given video standard (e.g. PAL or NTSC) the stored value Lists the languages available for the On Screen Display menus. does not normally require further fine-tuning, unless the source or connection cable is changed.
  • Page 23 �� ���� ����� ���� ���� ���������������� � � � �������� ������� ��������������������� ����������� ��� ���� ��� ����������� � � � �� �� ����������� ������������� �������������� ���� ���� ���� ����� � � � ������������ � ������������������ ������ ����������� ���������������� � � �������...
  • Page 24: Memories

    �� OSD TIMEOUT Some of these parameters may not be available for certain inputs Determines the On Screen Display timeout. When the On Screen or certain input signals, in accordance with the definitions in Tables Display appears it will remain displayed for the time set in this 3 and 4.
  • Page 25: Info

    �� the displayed image, while a confirmation message will be displayed BACKLIGHTING, Brightness, Contrast, Colour, Tint, Sharpness and to confirm the operation Memory 1 recalled. The retrieved memory Filter adjustments appear at the bottom of the screen one after the is associated with the specific source and signal type and called other when the keys are pressed.
  • Page 26: Cleaning And Maintenance

    �� 9 CLEANING AND MAINTENANCE The Display does not require any internal adjustments and it does Avoid direct cleaning of the rear panel’s screen-printed captions. not contain any user-servicable parts. For any service requirements seek qualified technical assistance from your nearest Dealer. To clean the exterior of the unit use a soft cloth moistened slightly with water and a small amount of neutral detergent if necessary.
  • Page 27: Optional Accessories

    11 OPTIONAL ACCESSORIES You can purchase the HTL40 screen support base from your dealer as optional accessory. Use only original or SIM2 Multimedia approved accessories. CAUTION: for wall installation, by means of suspension bracket, carefully follow the instructions and safety in- structions provided by the Manufacturer and supplied together with the bracket.
  • Page 28: Additional Information

    �� 12 ADDITIONAL INFORMATION A TECHNICAL SPECIFICATIONS Display Electronics Technology: Thin Film Transistor - Liquid Crystal Input Signals: VBS on RCA/Phono type connector Display S-VIDEO on mini-DIN connector Matrix: 1366x768x3 pixels, 3147264 pixels RGBHV on DB15HD connector for high definition images RGBS/YCrCb on RCA connector Dimensions : 40’’, image aspect 16/9 native...
  • Page 29: B Dimensions

    �� B DIMENSIONS Screen ����� ���� ���� ��� ��� Unit of measure: mm...
  • Page 30: C On-Screen Menus Layout

    �� C ON SCREEN MENU LAYOUT �������� ��������������� ������ ���� ��������������� ���������� ������������� ������������ ����� ���������� ����� ��������� ��������� ��������� ��������� ���������� ���������� ���������� ���������� �������� �������� �������� �������� ����� ��������� ����� ����� ���� ��������� ��������������� ���� �������� ��������� ������ ���������...
  • Page 31 �������������� ���������� �� �������� �������������� ������ �������� ���� ������������� �������� � ���������������� ���� ������� �������� �������� ������ ������� ��������� �������� ����������� � � ���������� �� �� ����������� ������������� ��������� �������������� ����� ������������ ����������������� ����������� ���������������� ���������� ��������� � ����������� ����������� �...
  • Page 32 ������ � � ������� � � �� �������� �������� ������� �������������������� ��������������������� ����� ���� ���� ���������������� � � � ����������������������� ��������������������� ��������������������� ��� ���� ��� ������ �������������������� � � � ���� ���� ���� � � � ������ � � ������� �...
  • Page 33: Table Of Contents

    �� SUMMARY Image 1 INTRODUCTION 2 IMPORTANT SAFETY INSTRUCTIONS Set up UNPACKING Menu Pack contents Memories INSTALLATION Info Positioning the unit Quick menus Connecting the video sources Messages SWITCHING ON AND OFF CLEANING AND MAINTENANCE Switching on/off from stand-by 10 TROUBLESHOOTING GUIDE 6 KEYPAD 11 OPTIONAL ACCESSORIES 7 REMOTE CONTROL...
  • Page 34 SIM2 Multimedia S.p.a. • Viale Lino Zanussi, 11 • 33170 Pordenone - ITALY Phone +39.434.383.253-256 • Fax +39.434.383260-261 www.sim2.com • e-mail: info@sim2.it SIM2 USA Inc. • 10108 USA Today Way • 33025 Miramar FL - USA Phone +1.954.4422999 • Fax +1.954.4422998 www.sim2usa.com • e-mail: sales@sim2usa.com SIM2 Deutschland GmbH •...
