CHAPTER 1: INTRODUCTION
ticonductor cables (such as Belden
cable to carry both audio and DC power from the
MPS-488HP to the loudspeakers. Longer cable lengths are
possible for moderate applications that don't drive the loud-
speakers to maximum output, as well as for installations with
heavier wire gauges.

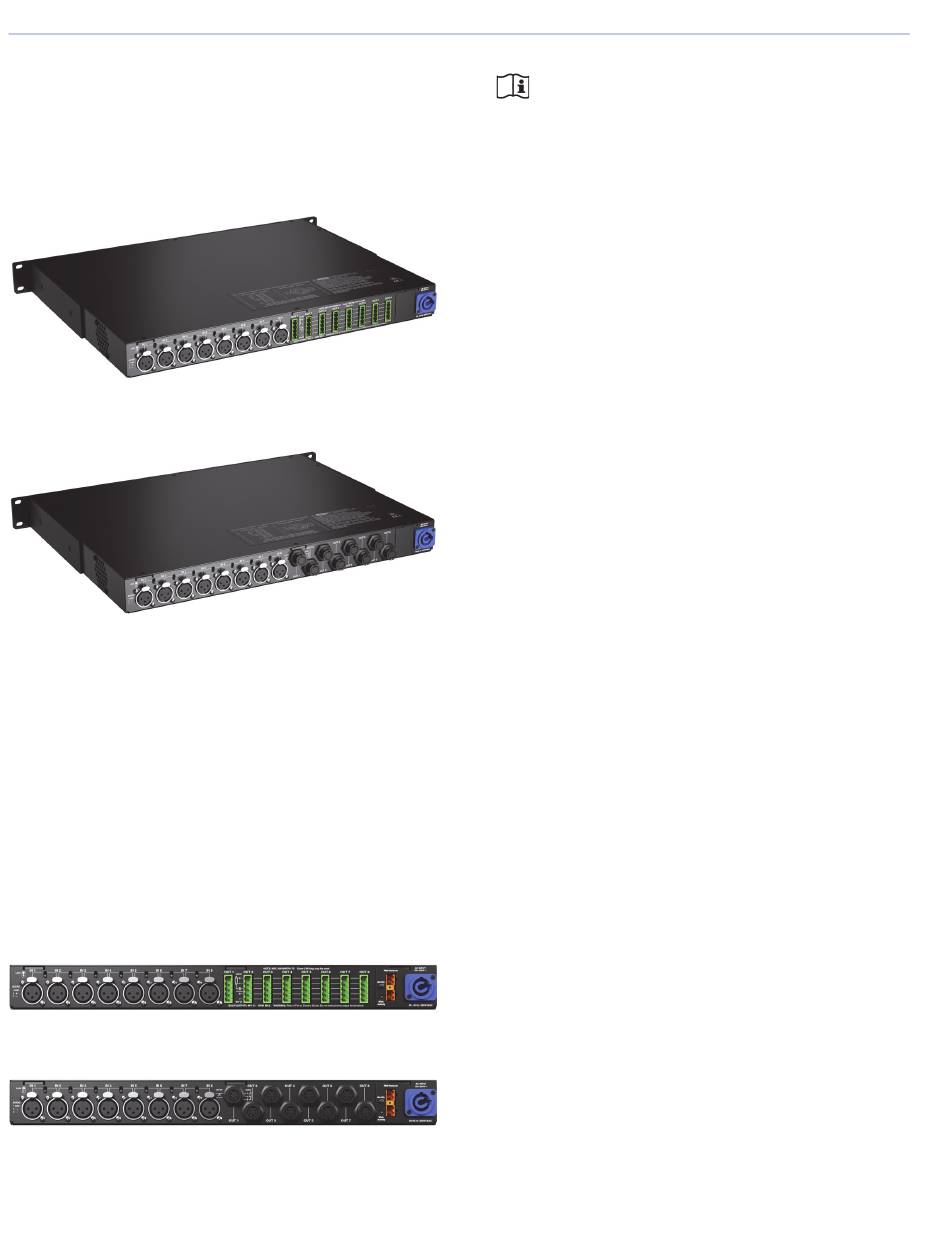

MPS-488HP Model with Phoenix Output Connectors
P
MPS-488HP Model with EN3 Output Connectors
E
The power supply's front panel has two LEDs per channel
output that provide useful feedback on the status of the sys-
tem. The blue voltage LEDs indicate when voltage is present
for each channel output. The green load current LEDs indi-
cate when a loudspeaker is connected to a channel output,
glow brighter as the signal level increases, and flash when a
short circuit is encountered.
Available as a factory-installed option is the RMS™ remote
monitoring system module, which provides loudspeaker
muting and monitoring of output voltage and load current
®
parameters from a Mac - or Windows
For more information, see Chapter 4, "MPS-488HP RMS
Option."
MPS-488HP with Factory-Installed RMS Option
P
MPS-488HP with Factory-Installed RMS Option
E
6
®
1502) allows a single
®
-based computer.
NOTE: The MPS-488HP external power supply
replaces the MPS-488 model, which was origi-
nally designed for use with MM-4XP loudspeakers.
The MPS-488 is also compatible with larger Intelli-
gentDC models, but can only power a maximum of
four of these loudspeakers; when powering these
loudspeakers with the MPS-488, they should only be
connected to channel outputs 1, 3, 5, and 7 (do not
use the even-numbered channel outputs).
