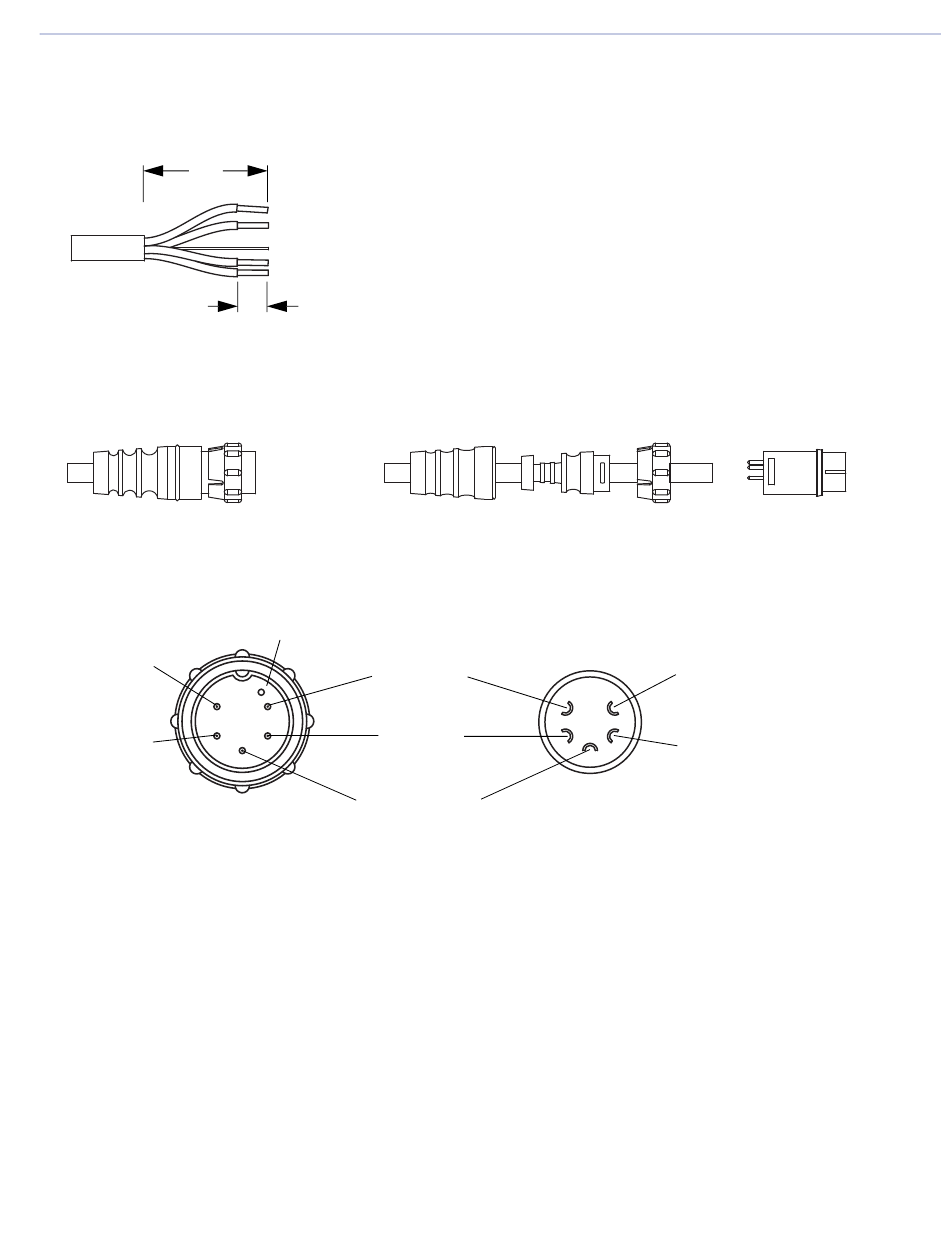

To assemble an EN3-to-EN3 loudspeaker cable:
1. If the cable has not yet been stripped, strip one end of the cable. Strip the outer shielding by 1 inch and then strip the
black, red, blue, and white wires by 0.275 inch.
1"
2. Disassemble the EN3 5-pin male connector and feed the stripped cable through the boot, cable clamp housing, and
coupling ring.
EN3 5-Pin Male Cable Mount Connector, Assembled (Left), Disassembled (Right)
3. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme.
Pin 5, White,
audio (+)
Pin 4, Blue,
audio (–)
FRONT
Pin Destinations for EN3 5-Pin male Cable Mount Connector
4. Reassemble the EN3 5-pin male connector:
■ Align the coupling ring's side notches with the cord connector's side notches and slide the couple ring onto the cord
connector.
Carefully insert the end of the cable clamp housing into the cord connector until it locks into place. Snap the cable
■
clamps in the cable clamp housing into their compartments.
■ Slide the boot forward so it covers the cable clamp housing completely.
0.275"
Boot
Dimple identifies Pin 1
Pin 1, Black,
48 V DC (–)
Pin 2, Red,
48 V DC (+)
Pin #3, Shield drain,
audio shield
MPS-488HP OPERATING INSTRUCTIONS
Coupling
ring
Cable clamp
housing
Pin 5, White,
audio (+)
Pin 4, Blue,
audio (–)
REAR
Cord
connector
