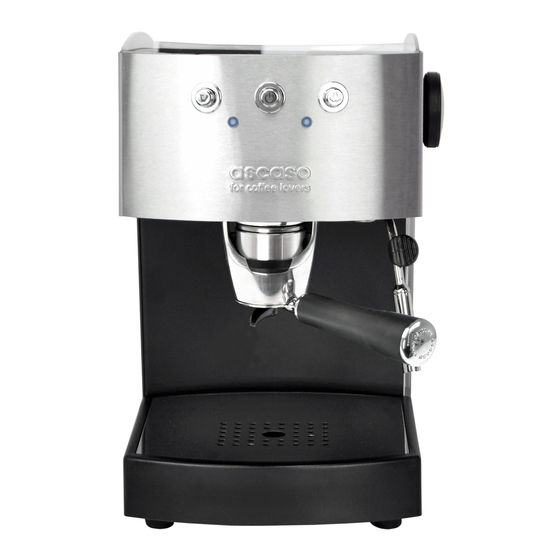

Ascaso Arc Quick Manual For Correct Use

All manuals and user guides at all-guides.com
Quick guide for correct use

1. Starting up

2. Making a espresso

1. Starting up
1 2
Check the voltage
Put water
(220V or 110V) and in the tank.
plug into the wall socket.
Do not use the machine without water in the tank.
This could damage the heating element and the pump. See the instruction book.
Always use filtered water. This will minimize problems caused by lime
deposit.
Consult our distributor about our special filters.
2. Making a espresso
Before making a espresso coffee, press the coffee switch (the filter holder should
always be attached to the machine in closed position) and let water run out (one
cup). This will remove residue and balance the temperature in order to create
optimum working conditions.
1
1. Fill the doser with ground coffee or insert
the pod into the specific holder.
Always remove the ground coffee or pod from the doser. The coffee will leave a
rancid flavour in the holder.
If this does happen, operate the coffee switch using just water.
After cleaning the filter holder, replace it to the unit so that it can heats up again.
FILLING THE DOSER
With only ground coffee system: up to
¾, when pressed.
In the versatile system (ground coffee):
Fill to the top, press and refill to the top.
TAMPING
The resulting cup of coffee depends
on pressing correctly.
THE THERMOMETER.
The thermometer will show you the machine
temperature. It has to be in between 80ºC/180ºF
and 110ºC/230ºF for coffee and above
100ºC/212ºF degrees for steam.
3. Making a cappuccino
4. Maintenance
3 4
Check that the steam Press the on-off switch. The
switch is turned off. TEMPERATURE pilot light will come
on. When the pilot light goes off, the
coffee machine will have reached its
i d e a l w o r k i n g t e m p e r a t u r e .
2 3
Press the coffee switch. Let the Wait for 10-15 seconds before
coffee come out according to making another coffee to allow
your selection (short/regular/long). the accumulated pressure to
Turn off the coffee switch. dissipate.
10’
