XP95 Interfaces Product Guide
MAN 3040
1
MAN3040-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ampac XP95

Summary of Contents for Ampac XP95

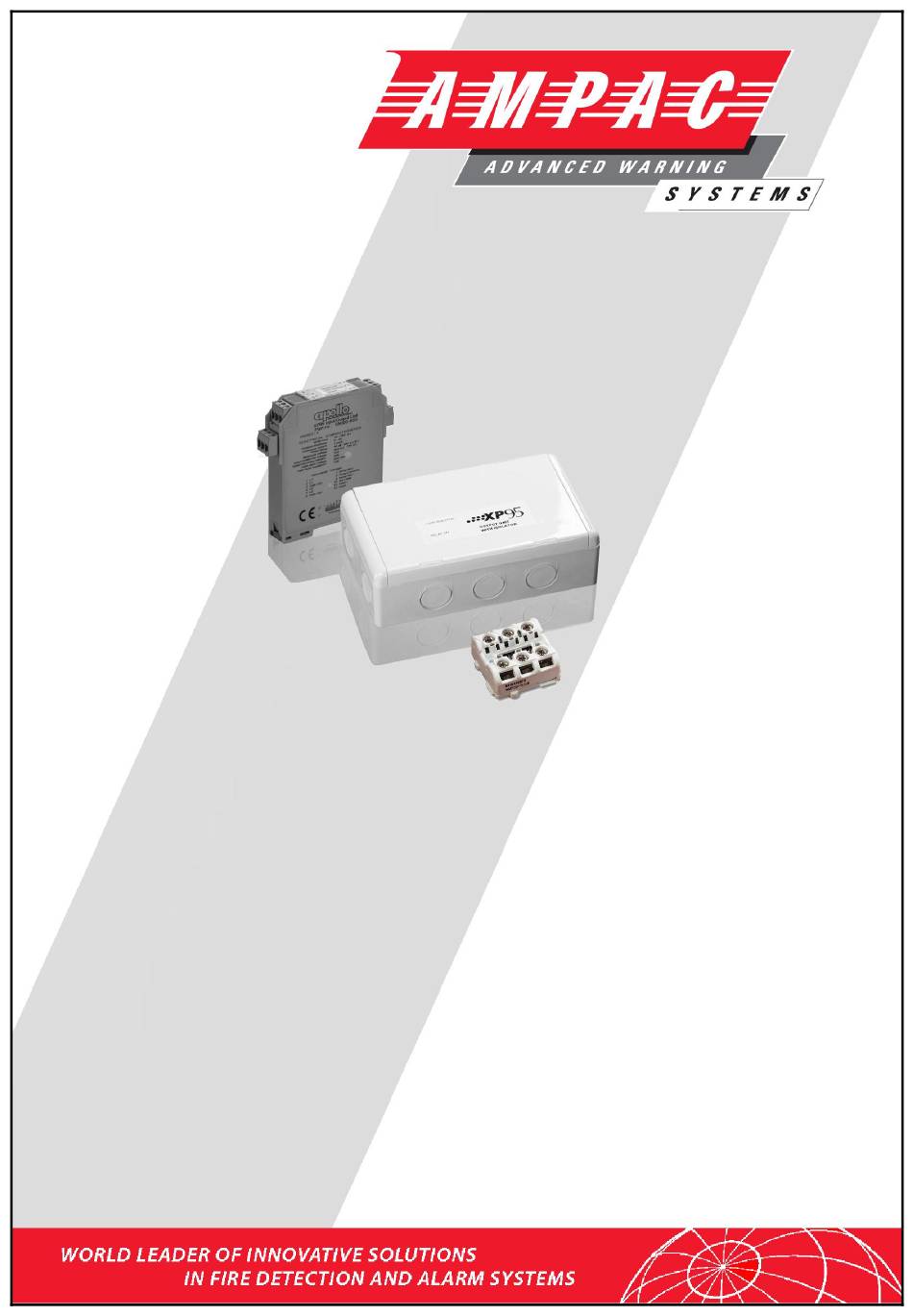

  • Page 1 XP95 Interfaces Product Guide MAN 3040 MAN3040-1...
  • Page 2 APOLLO INTERFACES GUIDE Modular Interfaces Fire protection systems can be engineered simply and effectively without the need for custom designed equipment. A variety of interfaces for intelligent systems are available to suit individual applications. Standard interfaces are designed to be surface mounted to walls and consist of three parts: a backbox with knockouts for cable entry, a PCB assembly and a protective front cover.

  • Page 3: Switch Monitor

    Built in Isolator  Interrupt/non-interrupt  Pre-alarm status Item No Package Description 55000-760AMP XP95 Mini Switch Monitor with Isolator Technical Data 55000-760AMP Voltage 17-28V dc Quiescent current 200µA at 24v dc LED Operated alarm 3.4mA + Quiescent Remote and LED alarm 6.2mA + Quiescent...

  • Page 4: Zone Monitor

    Item No Package Description 55000-845AMP XP95 Zone Monitor Unit with Isolator 55000-812APO XP95 DIN Rail Zone Monitor with Isolator Technical Data 55000-845AMP Voltage 17-28V dc Quiescent current 4mA + detector load Max switch on surge 3.5mA (150ms)
  • Page 5 Item No Package Description 55000-852AMP XP95 Sounder Control Unit with Isolator 55000-182APO XP95 DIN Rail Sounder Control Unit rated 5A Technical Data 55000-852AMP Voltage 17-28V dc Quiescent current 1.95mA at 24V dc Loop current max 5.5mA...

  • Page 6: Output Unit

    Capable of switching 250V ac up to 5A max Item No Package Description 55000-875AMP XP95 Mains Switching Input/Output Unit 55000-797APO XP95 DIN Rail Mains Input/Output Unit Technical Data 55000-875AMP Voltage 17-28V dc Quiescent current 3.5mA at 24V dc Rated load...
  • Page 7 Fax: +44 (0) 1302 835 021 Email: info.nz@ampac.net Email: info.nz@ampac.net Email: info.eu@ampac.net Web: www.ampac.net Web: www.ampac.net Web: www.ampac.net (HEAD OFFICE) Assessed to ISO9001 LPCB ref. no 952 (AMPAC Europe) UNCONTROLLED DOCUMENT NOTE: Due to AMPAC’s commitment to continuous improvement specifications may change without notice. MAN3040-1...
