Ampac XP95 Installation Manual

XP95 Analogue Base
Installation guide

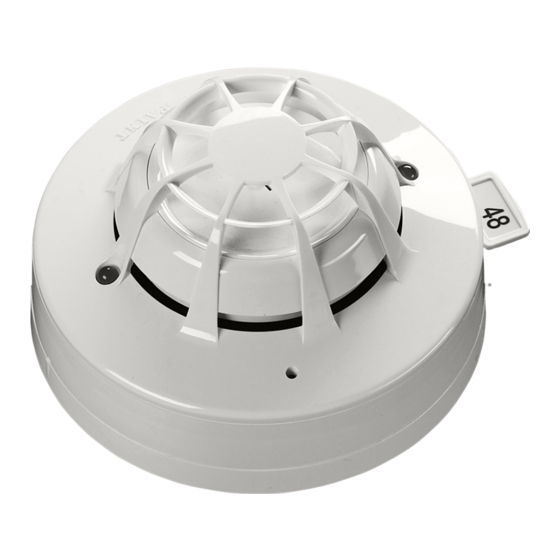

Description

The XP95 base has been designed to have a 'one way
only' fit.
By means of a unique, patented 'XPERT card' the
address information is held in the base while keeping
the base entirely free of electronic components. This
coded plastic card is inserted into the base, so that the
address remains the same, no matter how often the
detector is replaced by similar devices.
-VE
FROM FACP
O R
PREVIOUS
DETECTOR
+VE
-VE
FROM FACP
O R
PREVIOUS
DETECTOR
EARTH
+VE
65
R +
R-
L1
L2
E
EARTH

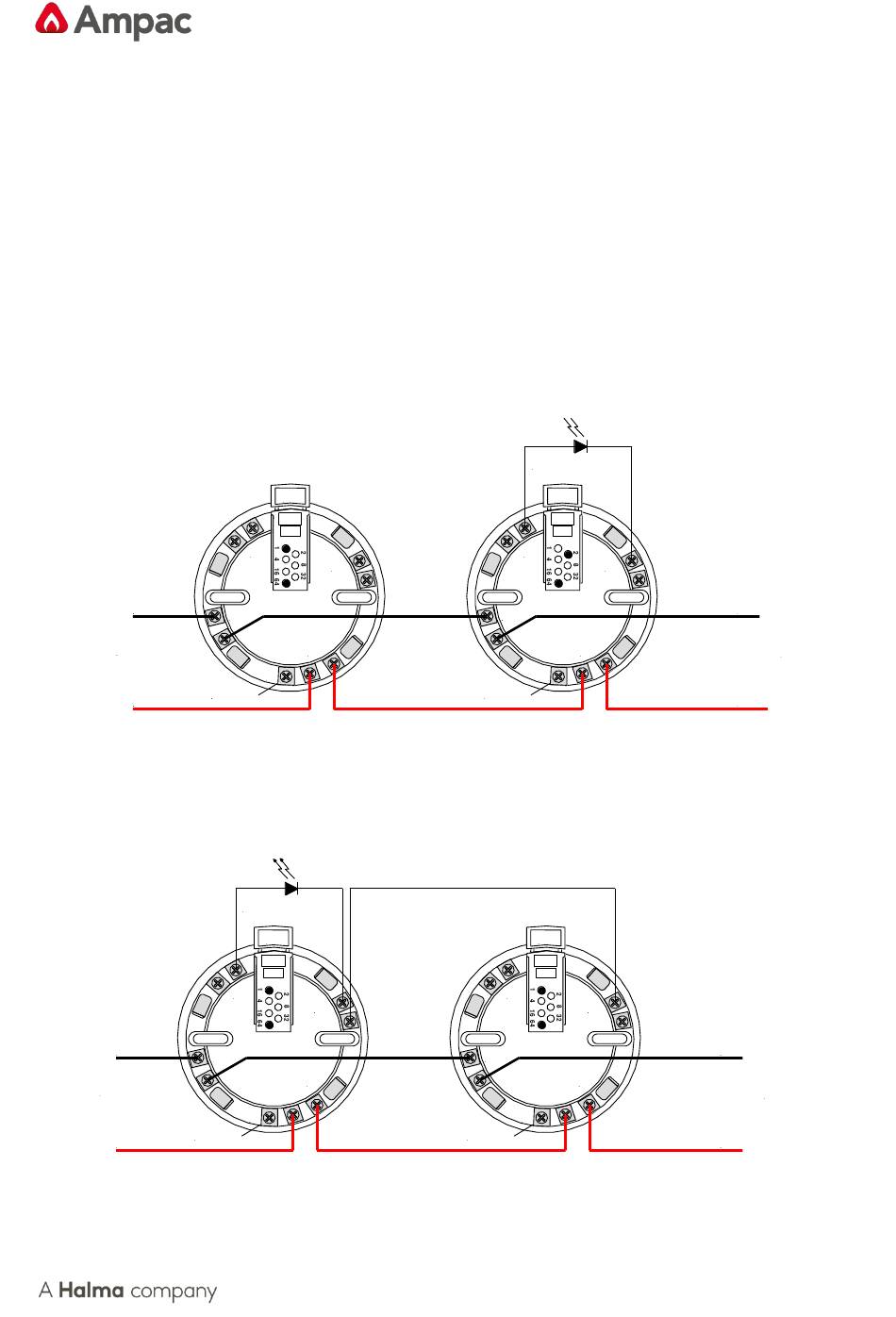

Figure 1: General Wiring Diagram
Remote LED
65
R +
R-
L1
L2
E
Figure 2: General Wiring Diagram c/w Common Remote LED

Installation

Observe anti-static precautions at all times
Wire as shown in Figure 1 and Figure 2 for
1.
Common Remote LED
Notes
Polarity must be observed on detectors beyond
1.
the one driving the remote indicator
The earth terminal is provided for easier
2.
installation and is not required by the detector
head.
Remote LED
66
R +
R-
L1
L2
E
EARTH
66
R +
R-
L1
L2
E
EARTH
MAN1547-2
Item Number: 201-0004
-VE
TO FACP
O R
NEXT
DETECTOR
+VE
-VE
TO FACP
O R
NEXT
DETECTOR
+VE
1
