Wagner Titanus PRO•SENS®
Conventional Line Interface (CLI)
Installation guide
Please observe anti-static precautions at all times.

Installation:

To complete installation you will need at least:
• A PRO•SENS® Unit
One or two Detector Heads
Note: 2 Head setups trigger the common Zone
An Air Filter Unit per Detector Head
• A Balanced Pipe System
Refer to the PRO•SENS®
MAN3046, and the "TranspTimeTITANUS"
pipe transport time calculator.
• A 27V Power Feed
Wiring to a Conventional Detection Zone
PRO•SENS®
Setup Detector Head(s) & Base Board:
1. Ensure power is not connected to the

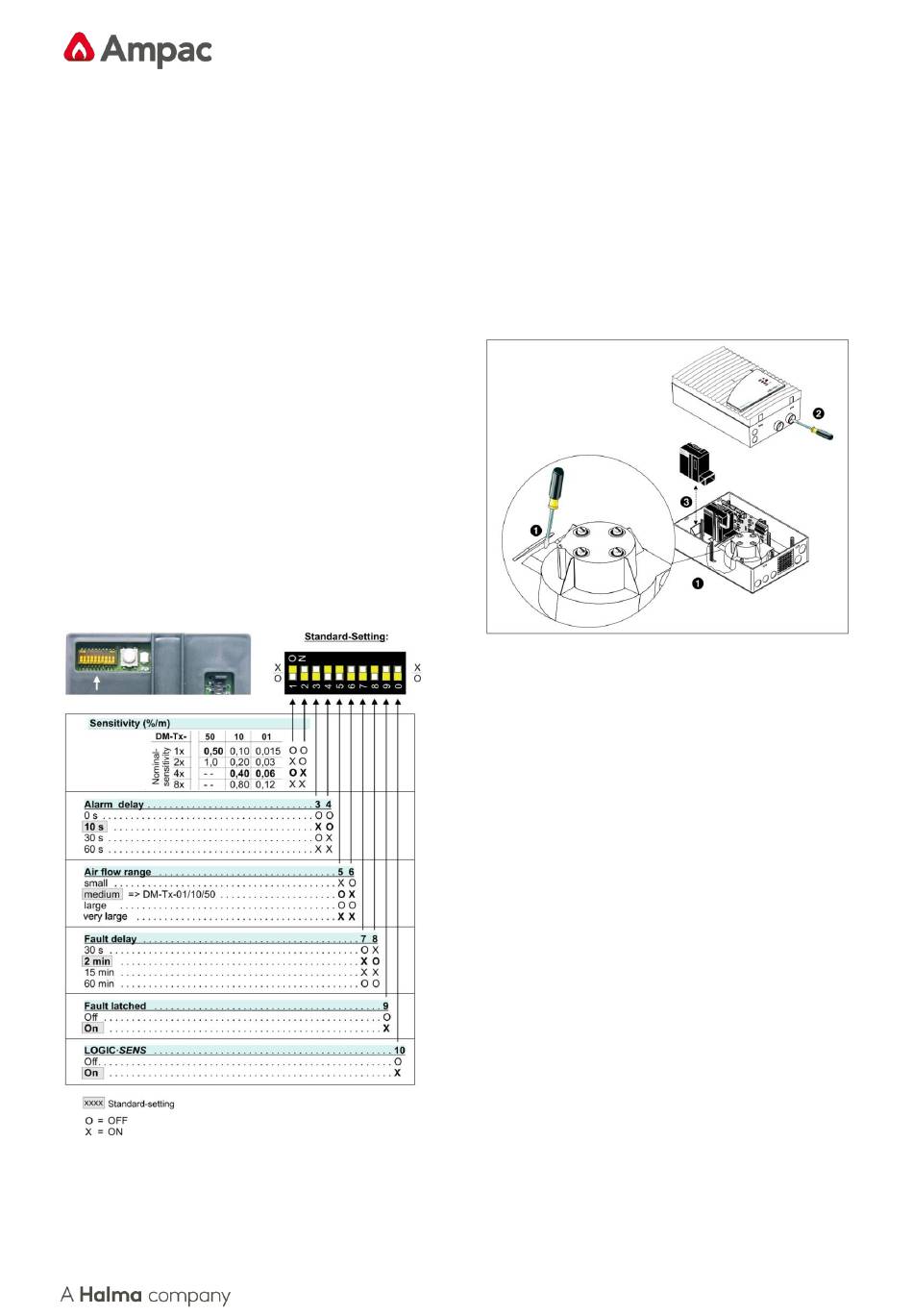

2. Set the Detector Head DIP switches as required (see
the PRO•SENS® Technical Manual Section 4.3.1.1)
General recommended Detector Head settings are:
Sensitivity: As required for the installation.
Alarm Delay: As required to suit the installation.
Air Flow Range: Medium.
Technical Manual
PRO•SENS®.
Item Number: 7010-1010 & 7010-1110
Fault Delay: 30 Seconds.
Fault Latched: As Required.
LOGIC•SENS:
Off for Transit Time testing.
Note: Before selecting suitable settings consult
applicable local standards, regulations and job
specifications requirements.
3. Install the of the Detector Head(s):
Figure 2: Detector Head Installation
3.1 With a flat blade screwdriver, carefully undo
the snap-in
simultaneously pressing in the clips located on
the top or bottom of the unit. Carefully lift the
housing lid. Pull the cable from the display
board and remove the lid.
3.2 If fitting the 2 detector carefully remove the
nd
plastic self-adhesive cover(s) on the aspirator
chamber to allow air flow to the detector head.
If necessary use a screwdriver to assist. (The
1 st position ventilator
removed).
NOTE: The right hand side location is for when
only one detector is fitted. The left is for a
second detector.
3.3 Carefully break the corresponding knockouts
for the pipe system(s) required, again using a
screwdriver if required. (Marked as "I" and "II"
on the enclosure).
3.4 Note the correct detector head orientation
(figure 2) and install the detector by spreading
the support clamps and placing the detector
head between them. Both clamps should fit
tightly against the module and snap in audibly.
Press the support clamps together.
3.5 If two detector heads are being fitted, remove
the jumper JU4 from the base board (see Fig
MAN3057-3
