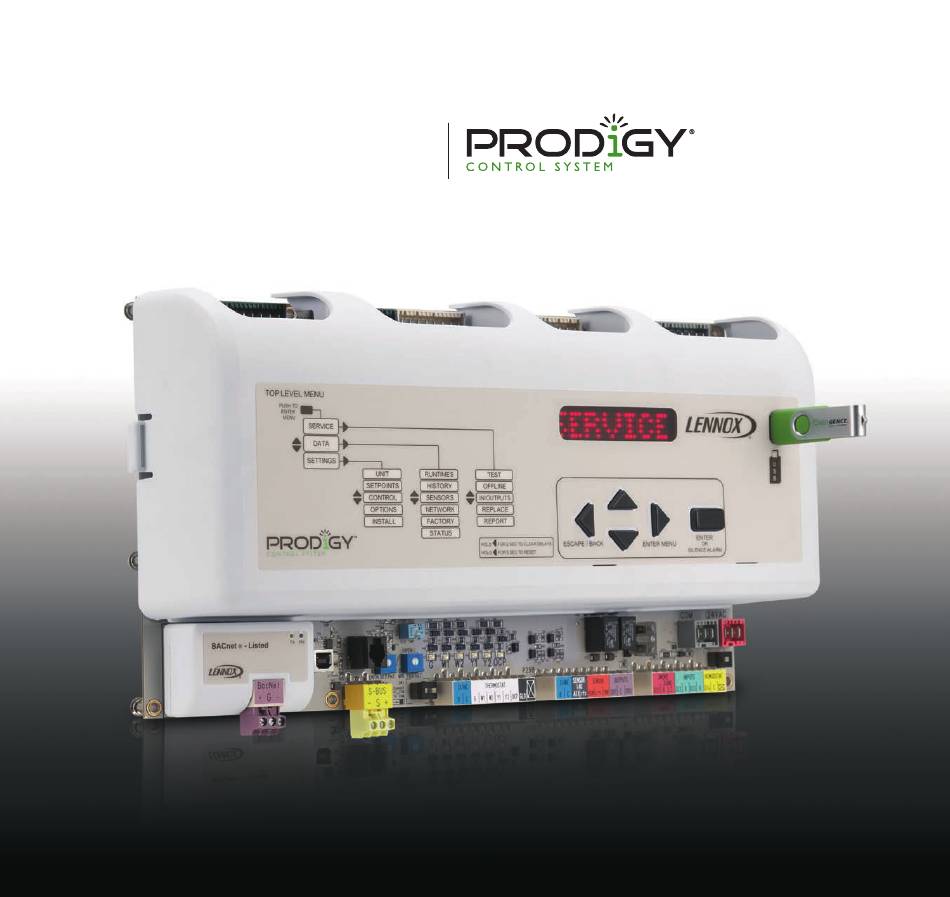

- Page 1 OPERATION MANUAL www.lennoxcommercial.com...

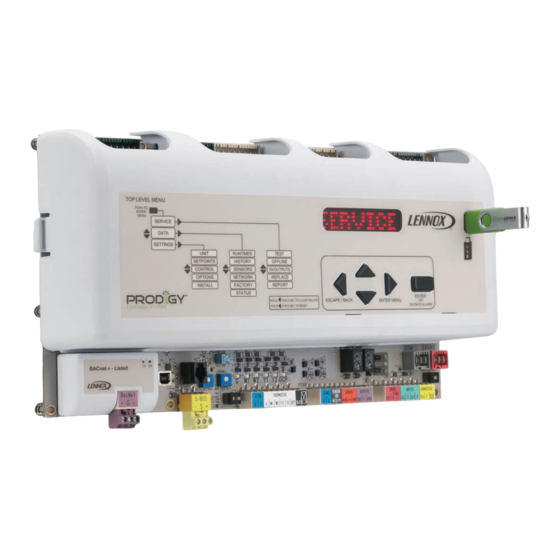

- Page 3 Lennox’ commitment ® to advanced HVAC technology. Standard on every Strategos rooftop unit, ® the Prodigy control system makes setup, troubleshooting and servicing easier than ever. The Prodigy control system includes: • Prodigy unit controller • SmartWire system ™...
- Page 4 NAVIGATION www.lennoxcommercial.com...
- Page 5 1. Navigation is performed by using the arrowed keys and the enter button • To reset the Prodigy unit controller, press the left arrow ® hold for 5 seconds — You will now be at the beginning of the menu structure •...
- Page 6 DISPLAY • Display shows the controller’s current state — It will show either the current mode of operation or an alarm/ status message • To exit the display mode, press enter • You are now in the menu structure • Notice that the first level of the menu structure is located on the controller English, French or Spanish language can be selected.
- Page 7 ALARMS The Prodigy unit controller displays alarms in descriptive, actionable text. ® • To simulate an alarm, press the left arrow until you are in the display mode • Flip down the switch to the right of the controller labeled Compressor 1HP (s4).
- Page 8 USB SERVICE REPORTS www.lennoxcommercial.com...
- Page 9 1. The Prodigy controller’s USB port can download service reports ® • To generate a report, insert a USB memory stick into the USB port then press enter REPORT • With displayed, press enter to write the report • The display will show it is writing the report and then indicate when it is complete •...
- Page 10 www.lennoxcommercial.com...
- Page 11 USB SERVICE REPORTS The reports at left are an example of a service call. 1. The first report shows the status of a unit with a faulty compressor and dirty filter • The sensor data illustrates the issue 2. The second report shows the same unit with a new compressor and filter •...
-
Page 12: Usb Profiles
USB PROFILES www.lennoxcommercial.com... - Page 13 You can also save a unit profile which can be uploaded to another similar unit. • To save or upload a unit profile, insert a USB memory stick in the USB port • Press enter when the screen reads then scroll PROFILES down to and press enter...
- Page 14 SELF-TEST The Prodigy unit controller features a self-test function. This allows the user to ® individually test critical component operation. SERVICE • First, navigate to the menu and press enter TEST • Then, press enter again to access the menu COOL •...
- Page 15 REPLACE The replace function is used to reset component runtime information. To demonstrate, we will use a filter replacement. SERVICE • First, navigate to the menu and press enter REPLACE • Press the down arrow to scroll to press enter FILTER •...
- Page 16 RUNTIMES www.lennoxcommercial.com...
- Page 17 The Prodigy unit controller contains runtime information on all key components. ® DATA • Navigate to the menu and press enter RUNTIMES • Press enter again on to access the menu • You can scroll through all the runtimes using the up and...
-
Page 18: Data History
HISTORY and press enter ALARMS • Press enter on the screen • The Prodigy unit controller will display the last five alarms ® • Press the left button three times to return to DATA screen www.lennoxcommercial.com... -
Page 19: Sensor Data
SENSOR DATA The Prodigy unit controller can also display important sensor data. ® DATA • Once on the screen, press enter and scroll SENSORS then press enter • You can scroll through all the sensors and their current readings • This data can be critical in diagnosing a problem DATA •... - Page 20 SETPOINTS www.lennoxcommercial.com...
- Page 21 Changing setpoints on the Prodigy unit controller is quick and easy. ® SETTINGS • First, navigate to the menu and press enter SETPOINTS • Press the down arrow to scroll to the menu and press enter COOLING • Press enter...
- Page 22 SMARTWIRE SYSTEM ™ www.lennoxcommercial.com...
- Page 23 The SmartWire system is designed to simplify field wiring and sensor ™ installation. 1. Advanced connectors are color-coded, labeled and keyed to prevent miswiring and ensure units are installed and set up correctly • The wire-coloring scheme is standard across all units •...
- Page 24 • Indoor Coils © 2018 Lennox Industries Inc. Visit us at www.lennox.com, or contact us at 1-877-726-0024 (64W34)-01/18 Litho U.S.A. For a complete list of the registered and common law trademarks owned by Lennox Industries Inc., please visit www.lennox.com. PC67865...
