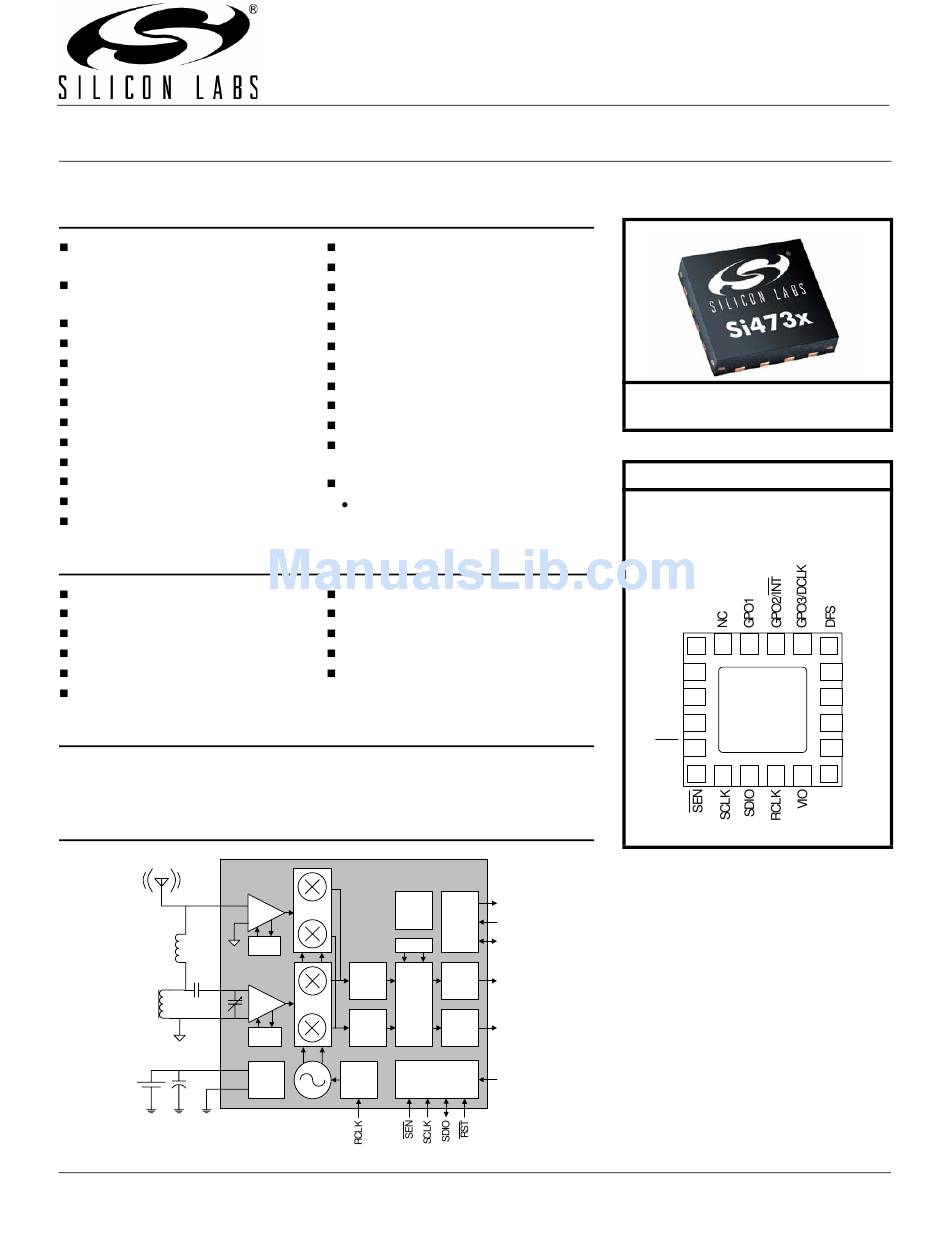

B
ROADCAST
Features
Worldwide FM band support
(64–108 MHz)
Worldwide AM band support
(520–1710 kHz)
SW band support (2.3–21.85 MHz)
LW band support (153–279 KHz)
Excellent real-world performance
Freq synthesizer with integrated VCO
Automatic frequency control (AFC)
Automatic gain control (AGC)
Integrated LDO regulator
Digital FM stereo decoder
Programmable de-emphasis
Adaptive noise suppression
AM/FM/SW/LW digital tuning
Applications
Table and portable radios
Stereos
Mini/micro systems
CD/DVD players
Portable media players
Boom boxes
Description
The Si4734/35 is the first digital CMOS AM/FM/SW/LW radio receiver IC that
integrates the complete tuner function from antenna input to audio output.
Functional Block Diagram
FM / SW
ANT
FMI
AM / LW
AMI
ANT
RFGND
2.7 - 5.5 V
VDD
GND
Rev. 1.0 4/08
AM/FM/SW/LW R
No manual alignment necessary
Adjustable channel filters
EN55020 complaint
Programmable reference clock
Digital volume control
Adjustable soft mute control
RDS/RBDS processor (Si4735 only)
Optional digital audio out (Si4735 only)
2-wire and 3-wire control interface
2.7 to 5.5 V supply voltage
Wide range of ferrite loop sticks and air
loop antennas supported

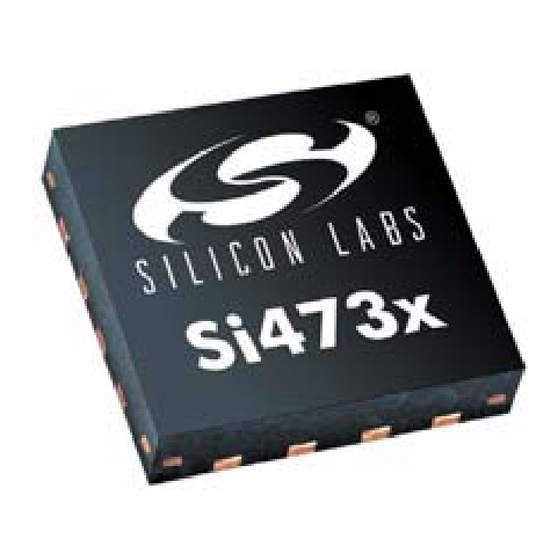

3 x 3 x 0.55 mm 20-pin QFN package
Pb-free/RoHS compliant
Cellular handsets
Modules
Clock radios
Mini HiFi
Entertainment systems
Si4734/35
RDS
LNA
(Si4735)
LOW-IF
AGC
ADC
LNA
DSP
ADC
AGC
CONTROL
LDO
AFC
INTERFACE
Copyright © 2008 by Silicon Laboratories
S i 4 7 3 4 / 3 5 - B 2 0
R
ADIO
DOUT
DIGITAL
AUDIO
DFS
(Si4735)
GPO/DCLK
DAC
ROUT
DAC
LOUT
VIO
1.5-3.6V
ECEIVER
Ordering Information:
See page 31.
Pin Assignments
Si4734/35-GM
(Top View)
20
19
18
17
NC
1
FMI
2
RFGND
3
GND
PAD
AMI
4
RST
5
6
7
8
9
10
Patents pending
Notes:
1. To ensure proper operation and
receiver performance, follow the
guidelines in "AN383: Antenna
Selection and Universal Layout
Guide." Silicon Laboratories will
evaluate schematics and layouts for
qualified customers.
2. Place Si4734/35 as close as
possible to antenna jack and keep
the FMI and AMI traces as short as
possible.
Si4734/35-B20
16
15 DOUT
14
LOUT
13
ROUT
12
GND
11
VDD
