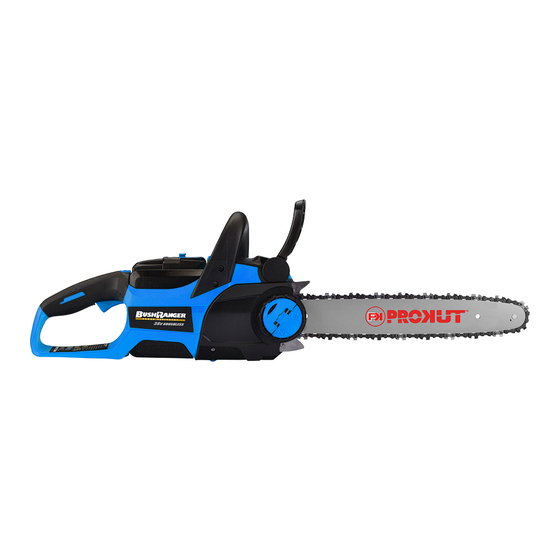

Bushranger BRU36v9201 Operator's Manual

36v battery powered chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
36V BATTERY POWERED CHAINSAW
BRU36v9201
1

Advertisement

Table of Contents
loading

Related Manuals for Bushranger BRU36v9201

Summary of Contents for Bushranger BRU36v9201

  • Page 1 OPERATOR’S MANUAL 36V BATTERY POWERED CHAINSAW BRU36v9201...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Chainsaw Know Your Product Introduction Introduction Safety Rules & Precautions Safety 05 - 06 06 - 07 Battery Tools Use And Care 07 - 10 Service / Safety Warnings Personal Protective Equipment 11 - 12 Residual Risks 12 - 13 Safety Devices Using The Product...

  • Page 3: Know Your Product

    KNOW YOUR PRODUCT Know Your Product Trigger Release (Refer To Page 17 Onwards) Throttle Trigger 1. Front Hand Guard/Chain Brake 10. Sprocket Cover 2. Front Handle 11. Chain Tensioner Adjustment Ring 3. Rear Handle English | 12. Chain Tensioner Knob 4.

  • Page 4: Introduction

    We are sure you shall appreciate the quality and performance of this ® machine, which will facilitate your task for a long period of time. Remember that you can contact your Bushranger service dealer for any queries regarding assembly and maintenance, as ®...
  • Page 5 SAFETY RULES & PRECAUTIONS Safety, performance, and dependability have been given top priority in the design of your cordless chainsaw. Intended Use • The product is only intended for use outdoors. For safety reasons the product must be adequately controlled by using two handed operation at all times.

  • Page 6: Safety

    SAFETY RULES & PRECAUTIONS Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 7 SAFETY RULES & PRECAUTIONS Battery Tools Use And Care (continued) • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. • Use the power tool, in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 8 SAFETY RULES & PRECAUTIONS Additional General Safety Warnings (continued) • Do not modify the machine in any way or use parts and accessories which are not recommended by the manufacturer. WARNING If the machine is dropped, suffers heavy impact or begins to vibrate abnormally, immediately stop the machine and inspect for damage or identify the cause of the vibration.
  • Page 9 SAFETY RULES & PRECAUTIONS Causes And Operator Prevention Of Kickback • Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. •...
  • Page 10 SAFETY RULES & PRECAUTIONS • The operator may be tempted to remove the helmet if there is no danger of falling objects in the work area, but remember the helmet, particularly with the mesh visor, can help reduce the potential for injury to the face and head if kickback occurs.

  • Page 11: Personal Protective Equipment

    SAFETY RULES & PRECAUTIONS Personal Protective Equipment Good quality, personal protective equipment as used by professionals will help to reduce the risk of injury to the operator. The following items should be used when operating your chainsaw (refer to page 22, figure 1): SAFETY HELMET Should comply with Australian Standards.

  • Page 12: Safety Devices

    A low-kick-back saw chain helps to reduce the possibility of a kickback event. The rakers (depth gauges) ahead of each cutter can minimize the force of a kick-back reaction by preventing the cutters from digging in too deeply. Only use replacement guide bar and chain combinations recommended by your Bushranger ®...
  • Page 13 SAFETY RULES & PRECAUTIONS Chain Brake Chain brakes are designed to quickly stop the chain rotating. When the chain brake lever/hand guard is pushed towards the bar, the chain should stop immediately. A chain brake does not prevent kick-back. It only lowers the risk of injury should the chain bar contact the operator’s body during a kick-back event.

  • Page 14: Recommended Chain Lubricating Oil

    USING THE PRODUCT Operation Adding Chain Lubricating Oil • See page 22, figure 7. WARNING Never work without chain lubricant. If the saw chain is running without lubricant, guide bar and saw chain can be damaged. It is therefore essential to check the oil level in the oil level gauge frequently and every time before starting to use the chain saw.

  • Page 15: Transportation And Storage

    Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty. WARNING Servicing requires extreme care and knowledge and should be performed only by a qualified Bushranger service technician. ®...

  • Page 16: Replacing Guide Bar And Saw Chain

    • After each use, clean the product with a soft dry cloth. Remove battery from the chainsaw. • Check all nuts, bolts and screws at frequent intervals for security to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorized Bushranger service centre.

  • Page 17: Inspecting And Cleaning Chain Brake

    MAINTENANCE AND CARE Inspecting And Cleaning The Chain Brake (Refer To Page 23) • Always keep the chain brake mechanism clean by lightly brushing the linkage free from dirt. • Always test the chain brake performance after cleaning. Refer to “Operation - Checking and Operating Chain Brake” earlier in this manual for additional information.
  • Page 18 To ensure that the chainsaw works safely and efficiently, it is essential that the cutting components are well-sharpened. Any work on the chain and bar require specific experience and special tools. For safety purposes we recommend you contact your Bushranger dealer to ensure work is done correctly.
  • Page 19 MAINTENANCE AND CARE A specialised centre will sharpen the chain using the right tools to ensure minimal removal of material and even sharpness on all cutting edges. If you sharpen the chain yourself, use special round-section files with the right diameter depending on the type of chain (see chain maintenance table).
  • Page 20 MAINTENANCE AND CARE To avoid premature wear of the bar make sure it is turned over periodically. If it should be necessary to turn the bar over or replace it, follow the instructions below: • Remove the casing, the chain and the bar, carefully following the instructions provided. Remove the screw using a cross-head screwdriver and remove the tension adjuster.

  • Page 21: Check List

    CHECK LIST English |...
  • Page 22 KNOW YOUR PRODUCT RECOMMEND BEFORE USE CHAIN DIRECTION Fig. 1 Fig. 2 ADDING CHAIN LUBRICATING OIL ADDING CHAIN LUBRICATING OIL English |...

  • Page 23: Installing Battery Pack

    KNOW YOUR PRODUCT INSTALLING BATTERY PACK 3-4 mm 3-4 mm HOLDING THE CHAINSAW HOLDING THE CHAINSAW HOLDING THE CHAINSAW CLEANING AND STORAGE...
  • Page 24 KNOW YOUR PRODUCT REPLACING BAR AND CHAIN + ASSEMBLING BAR AND CHAIN 3-4 mm...

  • Page 25: Adjusting Chain Tension

    KNOW YOUR PRODUCT ADJUSTING THE CHAIN TENSION 3-4 mm...
  • Page 26 KNOW YOUR PRODUCT...

  • Page 27: Technical Data

    TECHNICAL DATA CORDLESS BLOWER BATTERY AND CHARGER Model BRU36v9201 Battery pack (Recommended) BRAT36v6500 Rated Voltage 36 v Weight 1.3kg No-load Speed Charger 12 m/s BRAT36v6525 & BRAT36v6250 Guide Bar Length 355mm(14’’) Compatible Battery Packs BRU36v6251 Usable Cutting Length 310 mm Chain Pitch 9.525 mm (0.375”)

  • Page 28: Warranty

    WARRANTY 1. Australian Consumer Law (REG. 90): The benefits to the consumer given by this warranty are in addition to other rights and remedies of the consumer under a law in relation to the good or services to which this warranty relates. Our goods come with guarantees that cannot be excluded under the Australia Consumer Law.
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 Copyright © Roy Gripske and Sons Pty. Ltd. 2018. All rights reserved. 1041. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
