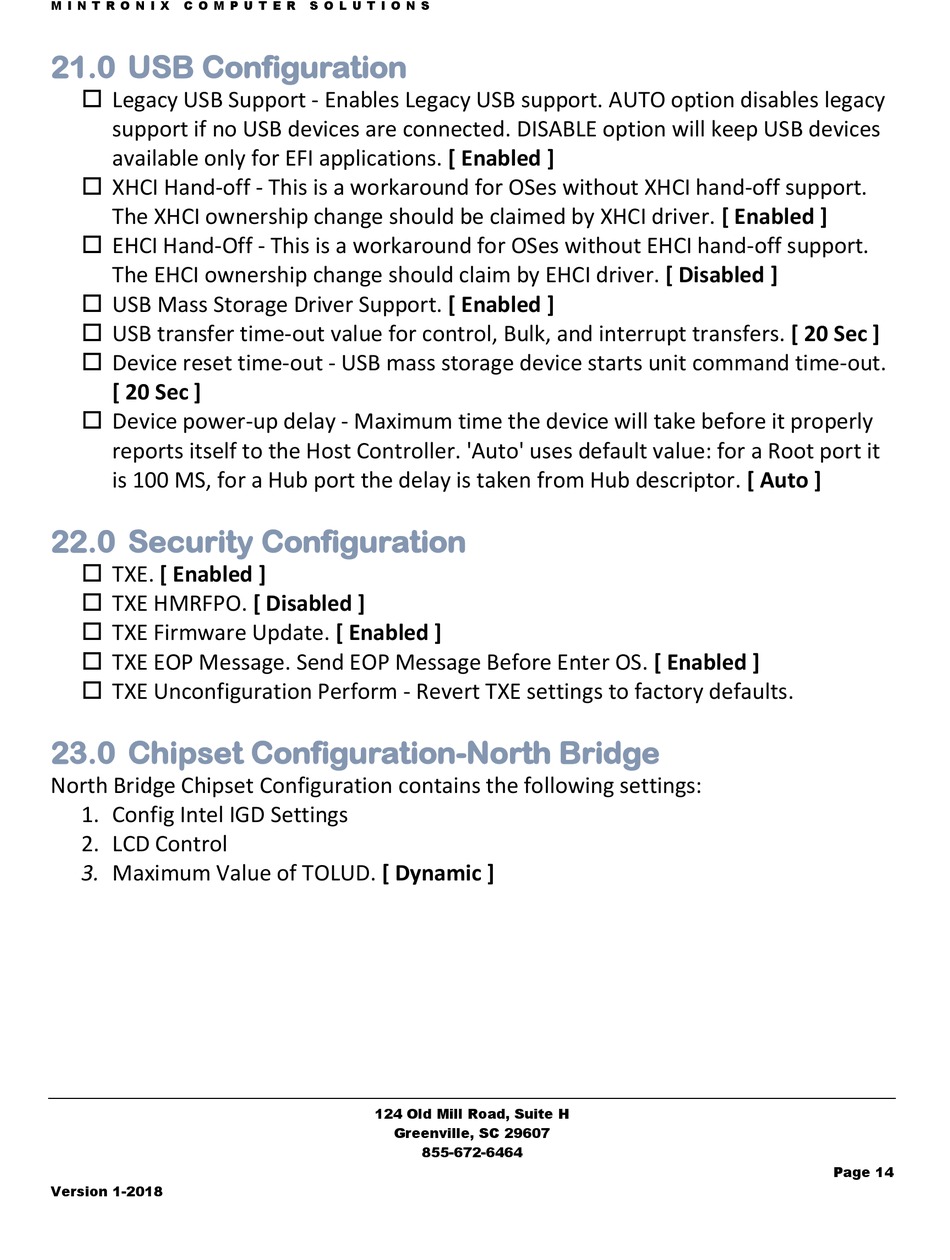

21.0 USB Configuration

 Legacy USB Support - Enables Legacy USB support. AUTO option disables legacy
support if no USB devices are connected. DISABLE option will keep USB devices
available only for EFI applications. [ Enabled ]
 XHCI Hand-off - This is a workaround for OSes without XHCI hand-off support.
The XHCI ownership change should be claimed by XHCI driver. [ Enabled ]
 EHCI Hand-Off - This is a workaround for OSes without EHCI hand-off support.
The EHCI ownership change should claim by EHCI driver. [ Disabled ]
 USB Mass Storage Driver Support. [ Enabled ]
 USB transfer time-out value for control, Bulk, and interrupt transfers. [ 20 Sec ]
 Device reset time-out - USB mass storage device starts unit command time-out.
[ 20 Sec ]
 Device power-up delay - Maximum time the device will take before it properly
reports itself to the Host Controller. 'Auto' uses default value: for a Root port it
is 100 MS, for a Hub port the delay is taken from Hub descriptor. [ Auto ]

22.0 Security Configuration

 TXE. [ Enabled ]
 TXE HMRFPO. [ Disabled ]
 TXE Firmware Update. [ Enabled ]
 TXE EOP Message. Send EOP Message Before Enter OS. [ Enabled ]
 TXE Unconfiguration Perform - Revert TXE settings to factory defaults.

23.0 Chipset Configuration-North Bridge

North Bridge Chipset Configuration contains the following settings:
1. Config Intel IGD Settings
2. LCD Control
3. Maximum Value of TOLUD. [ Dynamic ]
