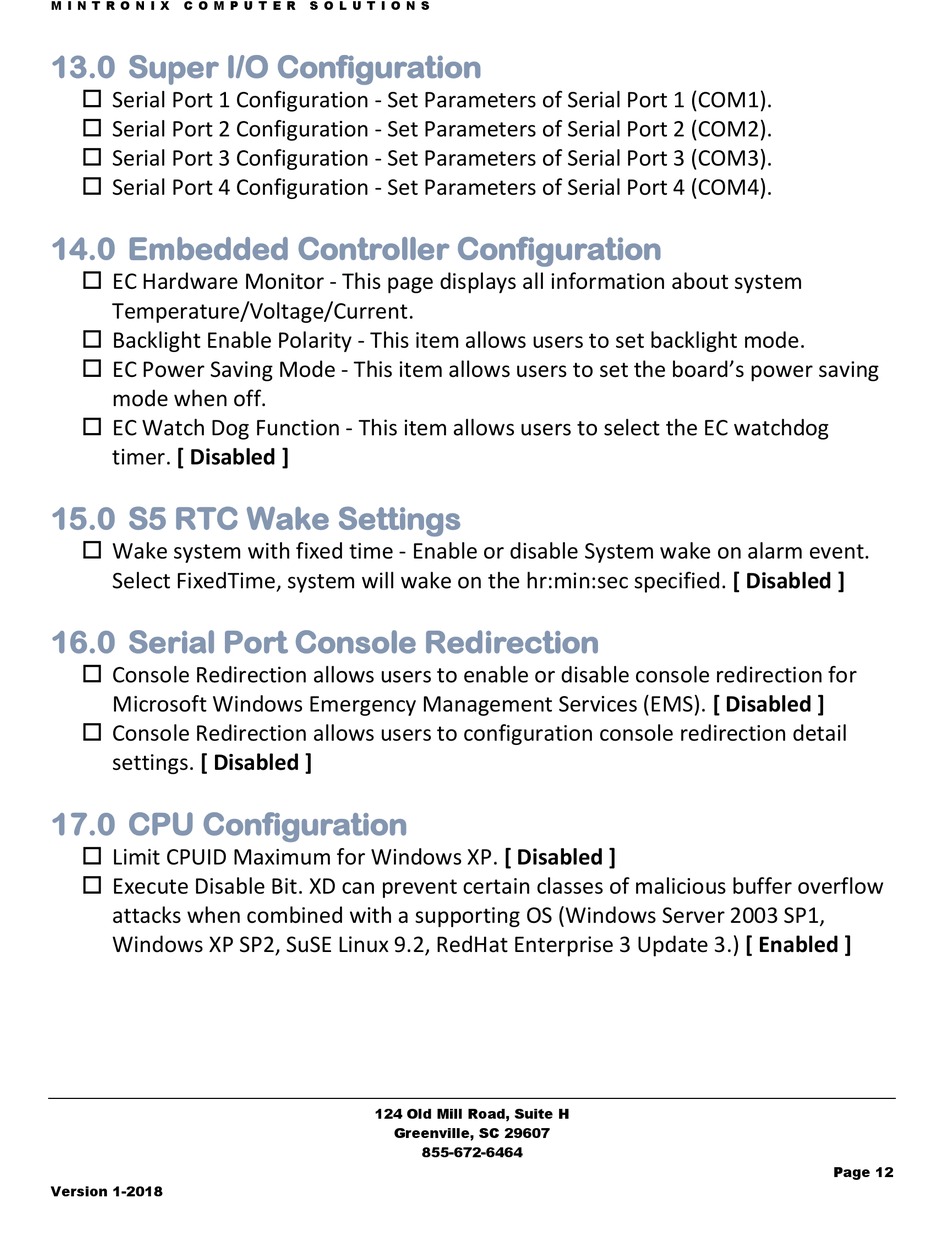

13.0 Super I/O Configuration

 Serial Port 1 Configuration - Set Parameters of Serial Port 1 (COM1).
 Serial Port 2 Configuration - Set Parameters of Serial Port 2 (COM2).
 Serial Port 3 Configuration - Set Parameters of Serial Port 3 (COM3).
 Serial Port 4 Configuration - Set Parameters of Serial Port 4 (COM4).

14.0 Embedded Controller Configuration

 EC Hardware Monitor - This page displays all information about system
Temperature/Voltage/Current.
 Backlight Enable Polarity - This item allows users to set backlight mode.
 EC Power Saving Mode - This item allows users to set the board's power saving
mode when off.
 EC Watch Dog Function - This item allows users to select the EC watchdog
timer. [ Disabled ]

15.0 S5 RTC Wake Settings

 Wake system with fixed time - Enable or disable System wake on alarm event.
Select FixedTime, system will wake on the hr:min:sec specified. [ Disabled ]

16.0 Serial Port Console Redirection

 Console Redirection allows users to enable or disable console redirection for
Microsoft Windows Emergency Management Services (EMS). [ Disabled ]
 Console Redirection allows users to configuration console redirection detail
settings. [ Disabled ]

17.0 CPU Configuration

 Limit CPUID Maximum for Windows XP. [ Disabled ]
 Execute Disable Bit. XD can prevent certain classes of malicious buffer overflow
attacks when combined with a supporting OS (Windows Server 2003 SP1,
Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.) [ Enabled ]
