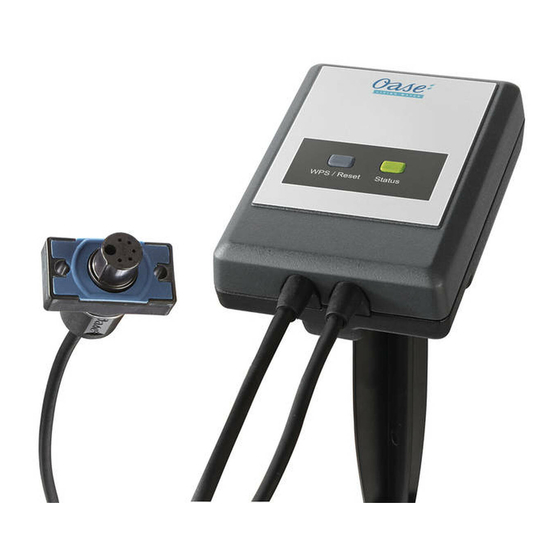

Oase InScenio Operating Instructions Manual

Oase InScenio Operating Instructions Manual

Egc controller home/cloud
Hide thumbs Also See for InScenio:
Table of Contents

Advertisement

Quick Links

Download this manual
Downloaded from www.watergardeningdirect.com
InScenio
EGC Controller Home/Cloud

Advertisement

Table of Contents
loading

Related Manuals for Oase InScenio

Summary of Contents for Oase InScenio

  • Page 1 Downloaded from www.watergardeningdirect.com InScenio EGC Controller Home/Cloud...
  • Page 2 Downloaded from www.watergardeningdirect.com -  - EGC0004 EGC0005 EGC0006...
  • Page 3 Downloaded from www.watergardeningdirect.com -  - EGC0007 EGC0008 EGC0009...
  • Page 4 Downloaded from www.watergardeningdirect.com - EN - - EN - Translation of the original Operating Instructions Version of the instructions for use: 1.0 W AR N I N G • This unit can be used by children aged 8  and above and by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand...

  • Page 5: Table Of Contents

    Connecting an EGC-compatible device ..................39 Connecting the power supply ......................39 Commissioning/start-up ..........................40 Installing the "OASE Easy Control" app ..................40 Establishing a WLAN connection ....................40 6.2.1 Establishing a connection to the WLAN router via WPS (router/cloud mode) ....40 6.2.2...
  • Page 6 Downloaded from www.watergardeningdirect.com - EN - Spare parts ..............................62 Disposal ............................... 62 Technical data ..............................643 Symbols on the unit ............................644...

  • Page 7: Information About This Operating Manual

    - EN - Information about this operating manual Welcome to OASE Living Water. You made a good choice with the purchase of this product InScenio EGC Controller. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

  • Page 8: Safe Operation

    OASE Easy Control app. The controller is available in the versions Home and Cloud. EGC-compatible end devices can only be con- trolled via the OASE web portal using the InScenio EGC Controller Cloud. The web portal can be accessed at https://oec.oase-livingwater.com Features: Connection options for EGC-compatible end devices.

  • Page 9: Installation And Connection

    The EGC connection cable is available as an accessory in the lengths 2.5 m (47038), 5 m (47039) and 10 m (47040). The EGC connection cable and the connection cable of the InScenio EGC Controller are connected to the EGC cable connector.

  • Page 10: Commissioning/Start-Up

    The WLAN router must support WPS. Prerequisite: The range of the WLAN connection between the router and InScenio EGC Controller can span a distance of up to 80 m provided there is unobstructed signal transmission and there are no sources of interference.

  • Page 11: Establishing A Direct Wlan Connection (Access Point Mode)

    Press the WPS button on the router to activate WPS. Follow the information given in the router operating instructions. WPS is only active for a limited time. Activate WPS on the InScenio EGC Controller during this time.  H On the EGC Controller: 1.

  • Page 12: Operating Status Display

    The app automatically selects the language used by the operating system. If the app does not support that language, it will use English. When establishing the connection to the InScenio EGC Controller for the first time, it is necessary to define a device password to protect the InScenio EGC Controller from unauthorised access.

  • Page 13: Operation

    For updating the firmware. Status of the WLAN connection ONLINE: Smartphone/tablet is connected to the InScenio EGC Controller. OFFLINE: Smartphone/tablet is not connected to the InScenio EGC Controller. 15:51 System time of the InScenio EGC Controller. The system time can be updated to the time shown on the operating device.

  • Page 14: Operating The Pump Via Egc

    7.1.1 Operating the pump via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. FMR0037 Tiles for operation and display of current values.
  • Page 15 Downloaded from www.watergardeningdirect.com - EN - Seasonal Flow Control (SFC) Only available for pumps supporting this function. The SFC function is described in the in- structions for use of the pump. Tap "On" or "Off" to switch the SFC function on or off. If the SFC function is on, the current mode is displayed.

  • Page 16: Operating Proficlear Units Via Egc

    7.1.2 Operating ProfiClear units via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. FMR0039 Tiles for operation and display of current values.
  • Page 17 Downloaded from www.watergardeningdirect.com - EN - Current water temperature in °C Display only. Number of cleaning cycles in the past 24 hours The total of the automatic and time-dependent cleaning cycles is displayed. The value is saved in the filter control system. N O T E : The filter system self-diagnostics monitor automatic cleaning.
  • Page 18 Downloaded from www.watergardeningdirect.com - EN - Cleaning time ʺCleaningʺ (CL) This setting changes the duration of the cleaning cycle. If the water does not carry away all dirt, a longer cleaning time is required. This may become necessary if, for instance, very long drain pipes or drain pipes with many bends were installed or there is a particularly large amount of sticky dirt (e.g.

  • Page 19: Operating Profilux Units Via Egc

    7.1.3 Operating ProfiLux units via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. EGC0020 Tiles for operation and display of current values.
  • Page 20 Downloaded from www.watergardeningdirect.com - EN - Colour settings The colour is adjusted for all selected LED lamps. How to proceed: 1. Tap A dialogue field will open. 2. Tap the desired colour of a colour circle or swipe across the colour circle to select the col- our.

  • Page 21: My Devices" Screen

    When the list is opened, the InScenio EGC Controller automatically searches for connected EGC devices. The EGC devices must be correctly connected to the EGC network and switched on so that the InScenio EGC Controller can find the EGC devices. Found devices are displayed in colour in the list and the mes- sage "Device found"...

  • Page 22: Proficlear Premium Filter - Upgrade To Egc

    ProfiClear Premium Filter – upgrade to EGC "My devices" screen To connect a ProfiClear Premium filter with the InScenio EGC Controller, ensure that the control system is EGC-compatible. For older ProfiClear Premium filters this compatibility can be established with a separately available upgrade control system (article number 47723).

  • Page 23: Removing An Egc-Compatible Device

    When the list is opened, the InScenio EGC Controller automatically searches for connected EGC devices. The EGC devices must be correctly connected to the EGC network and switched on so that the InScenio EGC Controller can find the EGC devices. Found devices are displayed in colour in the list and the mes- sage "Device found"...

  • Page 24: Settings" Screen

    The device makes a wireless network (WLAN) available under the specified network name with which the smartphone/tablet is directly connected. The network name in the factory default settings is specified on the InScenio EGC Controller on the adhesive label. The network name is changed via the touch symbol .

  • Page 25: Establishing A Connection To The Wlan Router Via Wps (Router/Cloud Mode)

    WPS is activated. Activate WPS on the WLAN router within 2 minutes. Read the router instructions if neces- sary. The connection is established when the LED on the InScenio EGC Controller flashes green slowly (2 sec- onds on, 1 second off).

  • Page 26: Manually Establishing A Connection To The Wlan Router (Router/Cloud Mode)

    The InScenio EGC Controller indicates that it is establishing a connection by showing a yellow flashing LED. The connection is established when the LED on the InScenio EGC Controller flashes green slowly (2 sec- onds on, 1 second off). 5. Connect the smartphone/tablet to the WLAN of the router.

  • Page 27: Activating The Cloud Connection

    EGC devices connected to the InScenio FM-Master WLAN EGC can be controlled from anywhere via the OASE web portal. For this the InScenio FM-Master WLAN EGC has to be connected to the OASE cloud and then added to the web portal. The device series number and device password are required for adding the In- Scenio FM-Master WLAN EGC in the web portal.

  • Page 28: Changing The Device Password

    How to proceed: 1. Touch next to "Update time". The touch symbol is active when the system time of the InScenio EGC Controller differs from the time on the operating device, The time is only updated when the touch symbol is active.

  • Page 29: Updating The Firmware

    Updating the firmware "Settings" screen For a firmware update, the InScenio EGC Controller changes to the firmware update mode and provides a new network. Your smartphone/tablet has to be connected to this network for installing the update. Prerequisites for a malfunction-free firmware update: Other WLAN connections to the InScenio EGC Controller are disconnected.

  • Page 30: 7.3.10 Resetting The Network Settings

     H 1. Keep the reset button pressed for approx. 5 seconds. The LED on the InScenio EGC Controller first flashes green fast and is then lit yellow to acknowledge dele- tion of the network settings. The network settings have been reset when the green LED on the InScenio EGC Controller is lit.
  • Page 31 The green LED is lit. The green LED flashes when the WLAN connection is established. The receiver in the InScenio EGC Controller is de- Contact the OASE service. fective. The "OASE Easy Control" app is outdated. Install the latest version of the "OASE Easy Control"...

  • Page 32: Manually Starting The Firmware Update Mode

    3. Connect to the power supply again while pressing the reset button. 4. Release the reset button after approx. 2 seconds. The InScenio EGC Controller changes to the firmware update mode. The LED on the InScenio EGC Con- troller is lit yellow 5.
  • Page 33 Downloaded from www.watergardeningdirect.com Anschluss/Schnittstelle Anschlussspannung Länge Netzkabel Länge 12-V-Kabel Länge EGC-Kabel Frequenz WLAN / max. Reichweite Abmessungen Gewicht Connection /interface Mains voltage Length of power cable Length of 12-V-cable Length of EGC cable WLAN frequency / max. range Dimensions Weight Raccord/Interface Tension de raccorde- Longueur du câble...
  • Page 34 Downloaded from www.watergardeningdirect.com Staubdicht. Wasserdicht bis 0.1 m Tiefe Nicht mit normalem Hausmüll entsorgen! Lesen Sie die Gebrauchsanleitung Dust tight. Submersible to 0.1 m depth. Do not dispose of together with household Read the operating instructions waste! Imperméable aux poussières. Etanche à Ne pas recycler dans les ordures ména- Lire la notice d'emploi l'eau jusqu'à...
  • Page 35 Produkt / Product: Controller Controller Typ / Type: InScenio EGC-Controller Home InScenio EGC-Controller Cloud den folgenden Richtlinien der Union entspricht: complies to the following directives of the Union: 2014/53/EU, 2011/65/EU Die vollständige EU-Konformitätserklärung ist unter der folgenden Internetadresse abrufbar: The complete Declaration of EU-conformity is available at the following internet address: www.oase-livingwater.com/ce...
