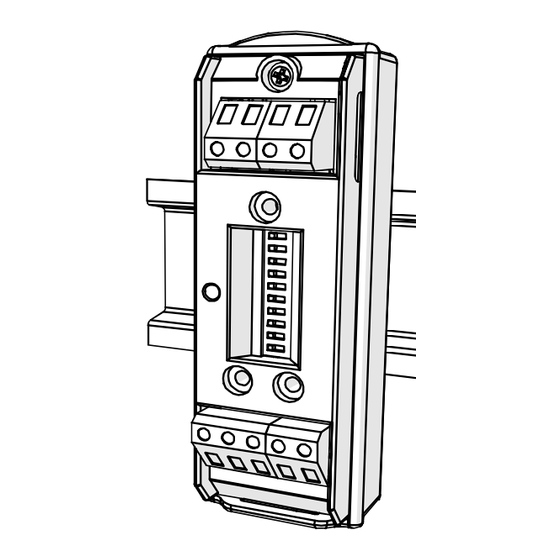

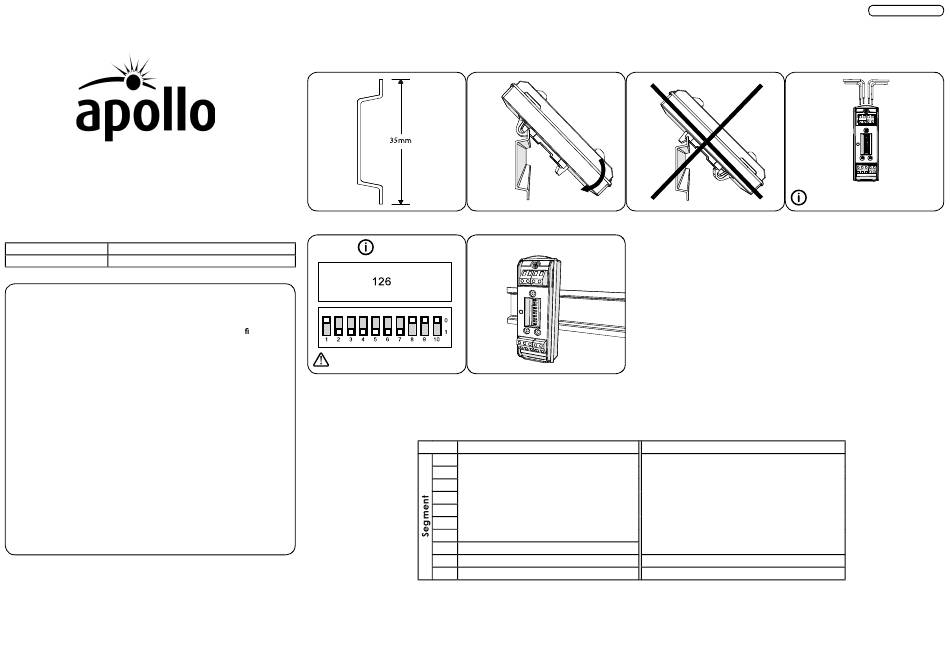

Apollo SA4700-300APO Installation Manual

Intelligent DIN-Rail Switch Monitor
Installation Guide
Part No Product Name
SA4700-300APO Intelligent DIN-Rail Switch Monitor
Technical Information
All data is supplied subject to change without notice. Speci cations
are typical at 24V, 25°C and 50% RH unless otherwise stated.
Supply Voltage 17-35V dc
Quiescent Current 500µA
Power-up Surge Current 900µA
LED Current 1.6mA per LED
Maximum Loop Current 1A
(I max; L1 in/out)
c
Operating Temperature –40°C to 70°C
Humidity 0% to 95% RH
(no condensation or icing)
Approvals EN 54-17 & EN 54-18
For additional technical information please refer to the following documents
which are available on request.
PP2563 - Intelligent DIN-Rail Switch Monitor
1 2
5 6
See Table 1
The 8th segment must be in set to '0'
for Discovery / XP95 operation
Table 1
XP95 / Discovery Systems
1
2
3
4
5
6
7
8 Set to '0' (Fault value is returned if set to '1')
MCP Priority interrupt - enables MCP behaviour
DLY Enables 30 second delay into alarm
Note: On mixed systems addresses 127 and 128 are reserved. Refer to system's panel manufacturer for
further information.
3
Addressing
CoreProtocol Systems
Sets the address
Enables 30 second delay into alarm
Enables priority enabled switch monitor behaviour
39215-164/Issue 3
4
For connectivity instructions see Fig
1, 2 & 3
Sets the address
