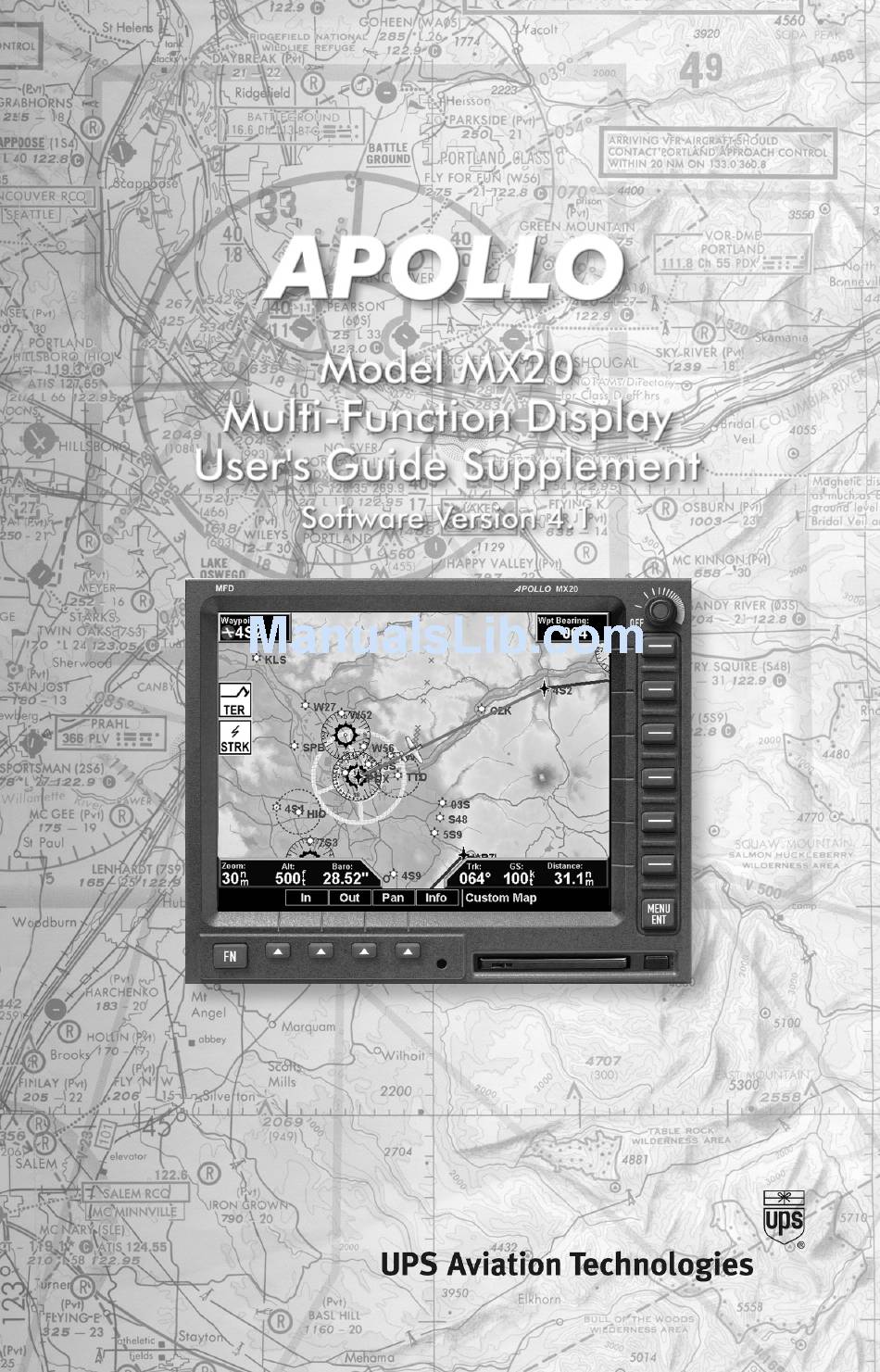

Apollo MX20
User's Guide Supplement For Software Version 4.1
This supplement describes changes in the Apollo MX20 User's Guide
for Software Version 4.1 (User Guide P/N 560-1026-04b). The version
of the User's Guide that incorporates these changes is P/N 560-1026-
05a.
Review this supplement for the changes in operation and then insert it
into your User's Guide.
Changes have been made in the Traffic feature. TAWS compatibility
has been added. The Traffic thumbnail features have been revised.
This document and the information disclosed herein are proprietary
information of UPSAT. Neither this document nor the information
contained herein shall be transmitted, reproduced, copied, or disclosed
in any form or by any means without the written authorization of
UPSAT.
The information disclosed herein includes trade secrets and confiden-
tial business and/or financial information and falls within exemption
(b) (4) of 5 USC 552 (FOIA) and the prohibitions of 18 USC 1905.
UPS Aviation Technologies® is a registered trademark of United Par-
cel Service of America, Inc.
© 2003 by UPS Aviation Technologies, Inc.
All rights reserved. Printed in the U.S.A.
UPS Aviation Technologies, Inc.
2345 Turner Road S.E.
Salem, OR 97302
U.S.A. Toll Free 800.525.6726
Canada Toll Free 800.654.3415
International
503.391.3411
FAX
503.364.2138
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Apollo MX20
Summary of Contents for Apollo MX20
- Page 1 Apollo MX20 User’s Guide Supplement For Software Version 4.1 This supplement describes changes in the Apollo MX20 User’s Guide for Software Version 4.1 (User Guide P/N 560-1026-04b). The version of the User’s Guide that incorporates these changes is P/N 560-1026- 05a.
-
Page 2: Data Flags
Visit our web page at http://www.upsat.com Send comments about this manual by e-mail to: tech- pubs@at.ups.com Data Flags Table 1: Data Description Flag No valid position information is available from the source. Do not expect a valid position representation on the maps. The Ownship sym- bol will have an “X”... - Page 3 Table 1: Data Description Flag Indicates that the radar is in Hold and is transmitting RF energy. (Green - Appropriate precautions should be taken. Flash- ing) TAWS No valid terrain information is available from the external source. (amber)
-
Page 4: Confirm Current Baro Correction
Thumbnail Feature The Thumbnail feature provides a small map depiction that is overlaid in the upper left corner of the MX20 display. It provides for enhanced traffic and terrain situational awareness when not specifically viewing traffic or ter- rain related functions. For example, both traffic and terrain situational awareness can be maintained while viewing the Flight Plan Function. -
Page 5: Thumbnail Activation
Thumbnail Activation The Thumbnail incorporates logic that will either show or hide the thumb- nail from view. It will only be shown when there is data to be presented and will be removed if not. For example, if there is no “Red” terrain or traffic within 5nm, the Thumbnail will be hidden from view. - Page 6 System (TAWS), the “Alt” and “Baro” fields normall present on the Nav- igational Bar will not be displayed. TAWS Pop-Up Modes The MX20 will detect TAWS based terrain alerts and will force a pop-up of the Terrain Function when required. Terrain based Pop-Ups have higher priority over traffic based pop-up functionality.
- Page 8 © 2003 by UPS Aviation Technologies, Inc. 2345 Turner Rd., S.E. Salem, OR 97302 U.S.A. Phone 503.581.8101 800.525.6726 In Canada 800.654.3415 FAX 503.364.2138 http://www.upsat.com Part #561-1077-01 February 2003...
