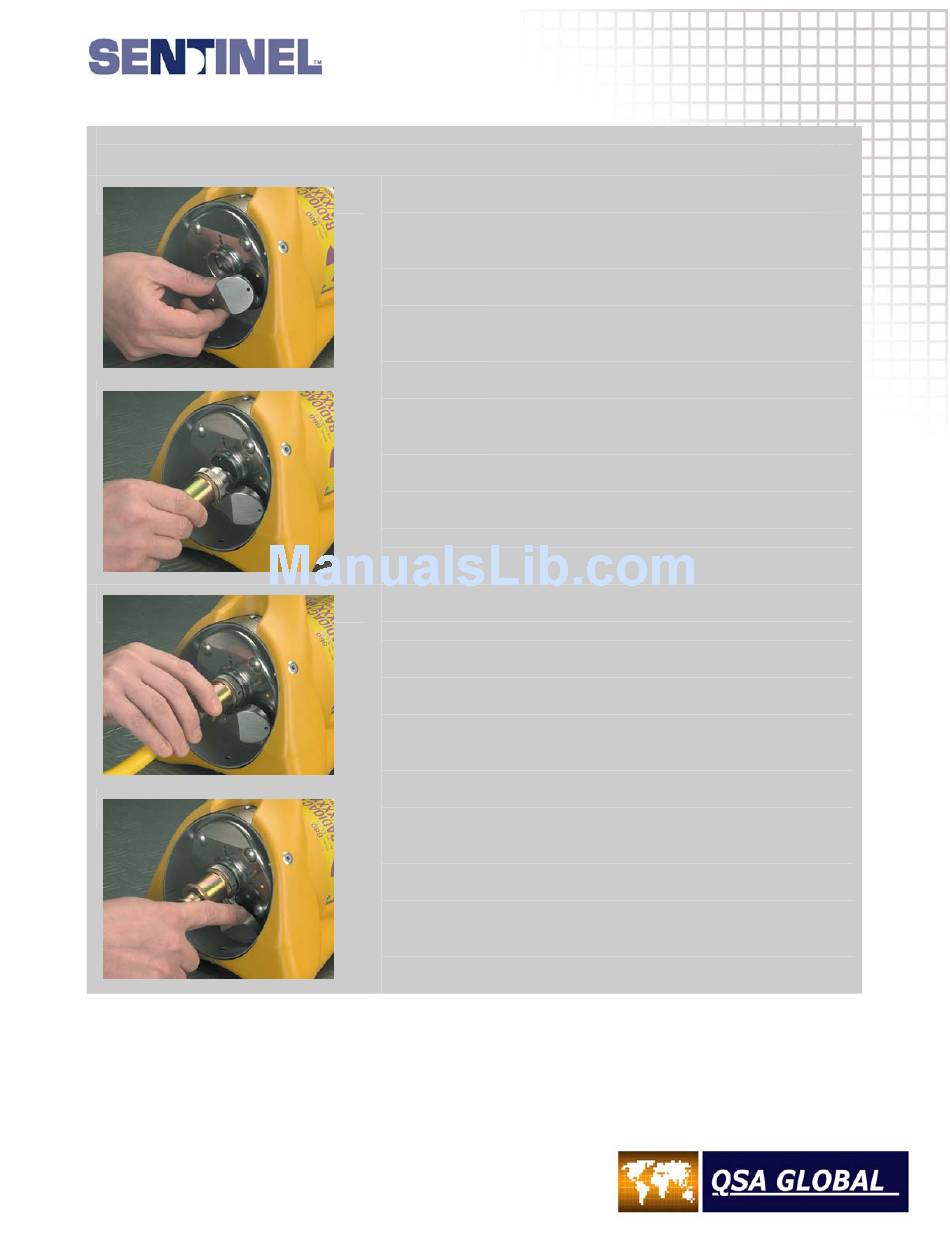

STEP 2
Connecting the Source Guide Tube(s)
1
2
3
4
Simultaneously pull and rotate the
spring-loaded outlet port cover a quarter of
a turn in a clockwise direction.
Insert the bayonet fitting of the source guide tube
Into the exposed outlet port.
Align the
GREEN MARKINGS
fitting and outlet port.
Rotate a quarter of a turn counter-clockwise.
Rotate the spring-loaded outlet port cover
an additional 60 degrees in a clockwise direction
until it stops.
2.3
OPERATING INSTRUCTIONS
on the bayonet
