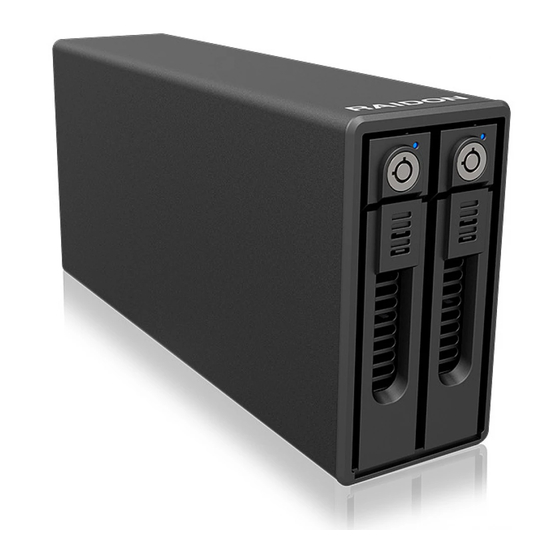

GR3660-TB3
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SafeTANK GR3660-TB3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Raidon SafeTANK GR3660-TB3

  • Page 1 SafeTANK GR3660-TB3 User Manual...
  • Page 2: Table Of Contents

    GR3660-TB3 User Manual » GR3660-TB3 User Manual ..........1 1. Operating Information ...............1 2. Package Contents and Product Views ........1 3. Hardware Requirements and Precautions ........2 4. Hardware Installation ..............3 5. RAID Modes and How to Switch between the RAID Modes ..4 6.
  • Page 3: Gr3660-Tb3 User Manual

    User manual had already been carefully verified before publishing, however, the actual product and its specification will be based upon the time of delivery from RAIDON. Any update to the product or its relevant information may be listed on www.RAIDON.com.
  • Page 4: Hardware Requirements And Precautions

    6. GR3660-TB3 uses a 12V/5V AC/DC Adapter. Please do not use other non-certified Power Adapter to avoid damaging to your GR3660-TB3. 7. We strongly recommend you to keep an extra copy at your important personal data other than stored in your GR3660-TB3 product. RAIDON will not be responsible of your data loss problem.
  • Page 5: Hardware Installation

    GR3660-TB3 User Manual 4. Hardware Installation Please follow the instructions below to complete the hardware installation. Step 1 Use the provided key in the Accessories Kit and inserted it into the Key Access Opening to eject the Removable Drive Tray Latch and extract the Removable Drive Tray. Step 2 Mount your hard drives onto the removable drive tray and secure it with the screws included in the accessory kit to avoid any damage to the hard drive due to accidental movements.
  • Page 6: Raid Modes And How To Switch Between The Raid Modes

    GR3660-TB3 User Manual 5. RAID Modes and How to Switch between the RAID Modes A. Please clear the RAID setting and format your two used HDDs before starting using your new GR3660-TB3. B. Please keep a copy of all your personal data into a safe storage space before you set RAID mode at your GR3660-TB3 unit.
  • Page 7: The Indication Of Hdd Status

    GR3660-TB3 User Manual 6. The Indication of HDD Status Status LED Light Status No HDD Red light always on HDD failed Red light always on HDD idle Blue light always on Data access Blue light flashing Rebuilding, Source HDD Breathing blue light Rebuilding, Target HDD Breathing purple light 7.
  • Page 8: Common Technical Questions

    RAID mode you will use GR3660-TB3. 4. If the computer is unable to detect the system, please install the drivers fromofficial website - Download page (http://www.RAIDON.com.tw/RAIDON2016/download.php) . 5. If the GR3660-TB3 is installed on the Windows OS but can not be connected, refer to the following steps: A.
  • Page 9 GR3660-TB3 User Manual 6. The new macOS 10.13 (High Sierra) requires user approval before loading new, third-party kernel extensions: A. Execute MarvellMvumi.pkg. B. Appear from an unidentified developer warning, click on the lower right corner of the "OK." C. Open System Preferences, and go to Security & Privacy. D.
  • Page 10: Gr3660-Tb3 產品使用說明

    GR3660-TB3 User Manual » GR3660-TB3 產品使用說明 關於這份手冊 感謝您使用 RAIDON 的產品。本手冊將介紹 RAIDON GR3660-TB3 產品。在您開始使用 RAIDON GR3660-TB3 產品前,建議您先閱讀過本手冊。手冊裡的資訊在出版前雖已被詳細確認,實際產品規 www.RAIDON.com.tw 格仍將以出貨時為準;任何產品規格或相關資訊更新請您直接到 網站查詢,本 公司將不另行通知。若您想獲得 RAIDON 最新產品訊息、使用手冊、韌體 , 或對 RAIDON 產品有任何 www.RAIDON.com.tw 疑問,請您聯絡當地供應商或到 取得相關訊息。 本手冊相關產品內容歸銳銨科技股份有限公司版權所有 1. 環境需求 工作溫度 : 0 ~ 40 ℃ (32 ~ 104 ℉ ) 儲存溫度...
  • Page 11: 硬體需求與注意事項

    J. RESET 按鈕 3. 硬體需求與注意事項 1. 第一次使用本產品進行設定時,資料會被全數清除。請於硬碟置入前,確認硬碟已備份,避免資料 遺失。 2. 在安裝新硬碟到 GR3660-TB3 之前,請先確認硬碟是沒有壞軌而且是沒有故障的,以避免資料受 損。 3. 當您需要關閉或移除 GR3660-TB3 時,務必透過您所操作的作業系統中執行硬碟安全移除後,方 可進行電源關閉的動作。 4. 當系統運作時,請勿任意移除任何一顆硬碟,以免導致資料遺失。 5. RAID 模式一旦設定完成,若要進行切換,因切換過程中將會清除硬碟中的資料,請務必先將硬碟 中的資料另行備份後再行切換。 6. GR3660-TB3 使用 12V/5A 規格 Adapter,請勿使用其他非原廠規格 Adapter 以免損壞機器及資料。 7. 強烈建議除了使用 GR3660-TB3 的資料儲存功能外,請針對重要資料備份到另一個儲存裝置上或 遠端備份,雙重備份您重要的資料。若您儲存在 GR3660-TB3 的資料損毀或遺失,RAIDON 將不 負任何的責任。...
  • Page 12: 硬體安裝

    GR3660-TB3 User Manual 4. 硬體安裝 請參照以下步驟完成硬體安裝 步驟 1 請使用零件包內附的鑰匙插入鑰匙孔後,抽取盒門閂將會輕彈開啟,即可將硬碟機抽取盒取 出。 步驟 2 將硬碟安裝到抽取盒上,並以零件包內附的螺絲加以固定,以避免不必要的移動對硬碟造成 傷害。 步驟 3 硬碟安裝完成後,請將抽取盒平移放入主機內,並關上把手。 步驟 4 將硬碟安裝到抽取盒上,並以零件包內附的螺絲加以固定 , 以避免不必要的移動對硬碟造成 傷害。 步驟 5 將相關連接線接上,最後接上電源轉接器。 步驟 6 將機體背面的電源開關打開。 步驟 7 a. 機器啟動後,抽取盒燈號會由「紅燈恆亮 > 熄滅 > 藍燈恆亮」燈號,即為完成機器安裝設 定。 b. 如機器啟動後,抽取盒燈號如出現「紅燈恆亮 > 熄滅 > 藍紫閃爍」燈號,請使用頂針插入 「重置鍵」3 秒後鬆開頂針,待燈號由「藍紫閃爍」燈號轉變為「藍燈恆亮」燈號時,即...
  • Page 13: Raid 設定

    GR3660-TB3 User Manual 5. RAID 設定 A. 若使用的硬碟之前有在其他機器作過 RAID,請先確認 RAID 已清除並重新格式化完畢。 B. 切換任何 RAID 模式之前,請先行確認所有資料的備份在其他硬碟上。 C. JBOD(出廠預設值):各別使用置入的硬碟存取空間。 D. RAID-1:兩顆硬碟進行同步寫入達到備份效果,其中一顆硬碟損壞仍可繼續運作, 將損壞硬碟更換新硬碟後將會自動進行資料重建 ; 當裝入的硬碟為 1 大 1 小時,GR3660- TB3 會將大容量的硬碟當成小容量的硬碟。 E. RAID-0:僅加速資料存取速度,對於資料備份不作任何保障。 F. 切換 RAID 設定的標準程序: 步驟 1:請在 GR3660-TB3 連線到電腦後,一併打開電腦和 GR3660-TB3 的電源開關。 步驟...
  • Page 14: 與其他裝置連接說明

    GR3660-TB3 User Manual 7. 與其他裝置連接說明 1. TB port : Thunderbolt™ 3 連 接 埠 可 串 接 TB3,USB 3.1 和 DisplayPort 裝 置; 其 中 向 下 支 援 USB3.0/USB2.0,有轉接線即可連接不同規格之 USB 產品,本產品支援 TB port 供電功能 (PD), 可以提供 15W (5V/3A) 的電源輸出給支援 5V/3A 充電的筆記型電腦使用,不用額外連接電源。 2.
  • Page 15: 常見問題

    3. 若硬碟已在其他磁碟陣列產品存取資料或設定 RAID MODE 過,建議還原成 JBOD 模式後再應用 於 GR3660-TB3,以避免產生無法讀取硬碟問題。 4. 如電腦無法辨識此系統 , 請前往 - 產品資料下載頁面 (http://www.raidon.com.tw/RAIDON2016/download. php) 下載驅動程式並安裝。 5. 若 GR3660-TB3 裝設在 Windows 作業系統上卻無法連線,請參考下方步驟: A. 開啟右下角工作列圖示 B. 在 Thunderbolt™ software 圖示上擊點滑鼠右鍵 C. 選擇「批准已接上的裝置」 D. 選擇連接埠 E. 等候對話框「批准 Thunderbolt™™ 裝置」出現 F. 選擇「永遠連接」 G. 按下確定。 RAIDON tech., GR3660-TB3...
  • Page 16 GR3660-TB3 User Manual 6. 礙於 macOS 10.13 (High Sierra) 的權限設定,如果程式來自於未識別開發者,是無法直接安裝的。 請依照下列步驟進行安裝。 A. 執行 MarvellMvumi.pkg,出現來自未識別開發者的警訊,先點選右下角的「好」。 B. 進入「系統偏好設定」後,點選「安全性與隱私」功能。 C. 接著下方就會看到被阻擋的訊息,按旁邊的「允許」。 注意:如果無法擊點允許按鈕,請先擊點左下角的鎖頭圖示,並輸入管理員密碼。...
  • Page 17 GR3660-TB3 User Manual www.raidon.com.tw...
