Holland House 2678-60H Assembly Instructions

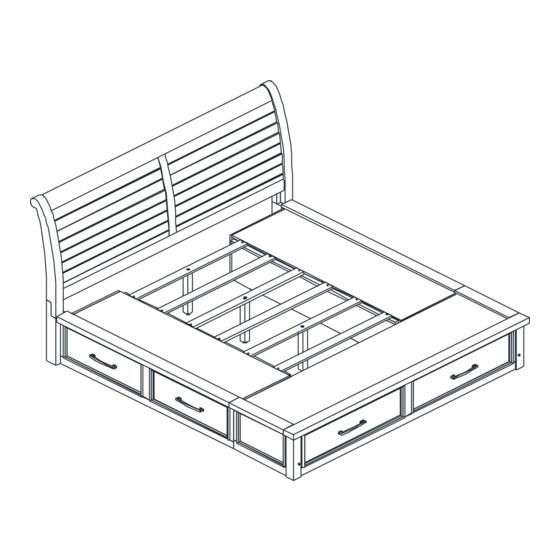

King sleigh headboard, king storage footboard w/ 6 slats & 3 support legs .

Download this manual

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for

small parts that may have come loose inside the carton during shipment.

***Caution: Please read all instructions carefully before starting the assembly process. These parts

are cumbersome and heavy. Therefore, two people are recommended in order to prevent personal

injury and insure the parts are not damaged during the assembly.

Assembly Instructions

Step 1

Assemble the Headboard legs & the

stretcher by using bolts "e" and

washers.

Step 2

Assemble leg frame &

Headboard panel by using bolts

"b" and washers.

Hardware List

Code

Allen Key 4*74*29mm

Bolt∮1/4"x 11.5 x 50mm

Spring Washer∮1/4"x∮11x 2mm T

Flat Washer∮1/4"x∮18 x 2mm T

Bolt∮1/4"x 11.5 x 38mm

2678-60H: King Sleigh Headboard

Q'TY

1 PC

4 PCS

8 PCS

4 PCS

Need help?

Do you have a question about the 2678-60H and is the answer not in the manual?

Page 1 Assembly Instructions 2678-60H: King Sleigh Headboard Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. ***Caution: Please read all instructions carefully before starting the assembly process. These parts are cumbersome and heavy.
Page 2 Assembly Instructions 2678-50USF: King Storage Footboard w/ 6 slats & 3 support legs Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. ***Caution: Please read all instructions carefully before starting the assembly process.
