DSP Settings

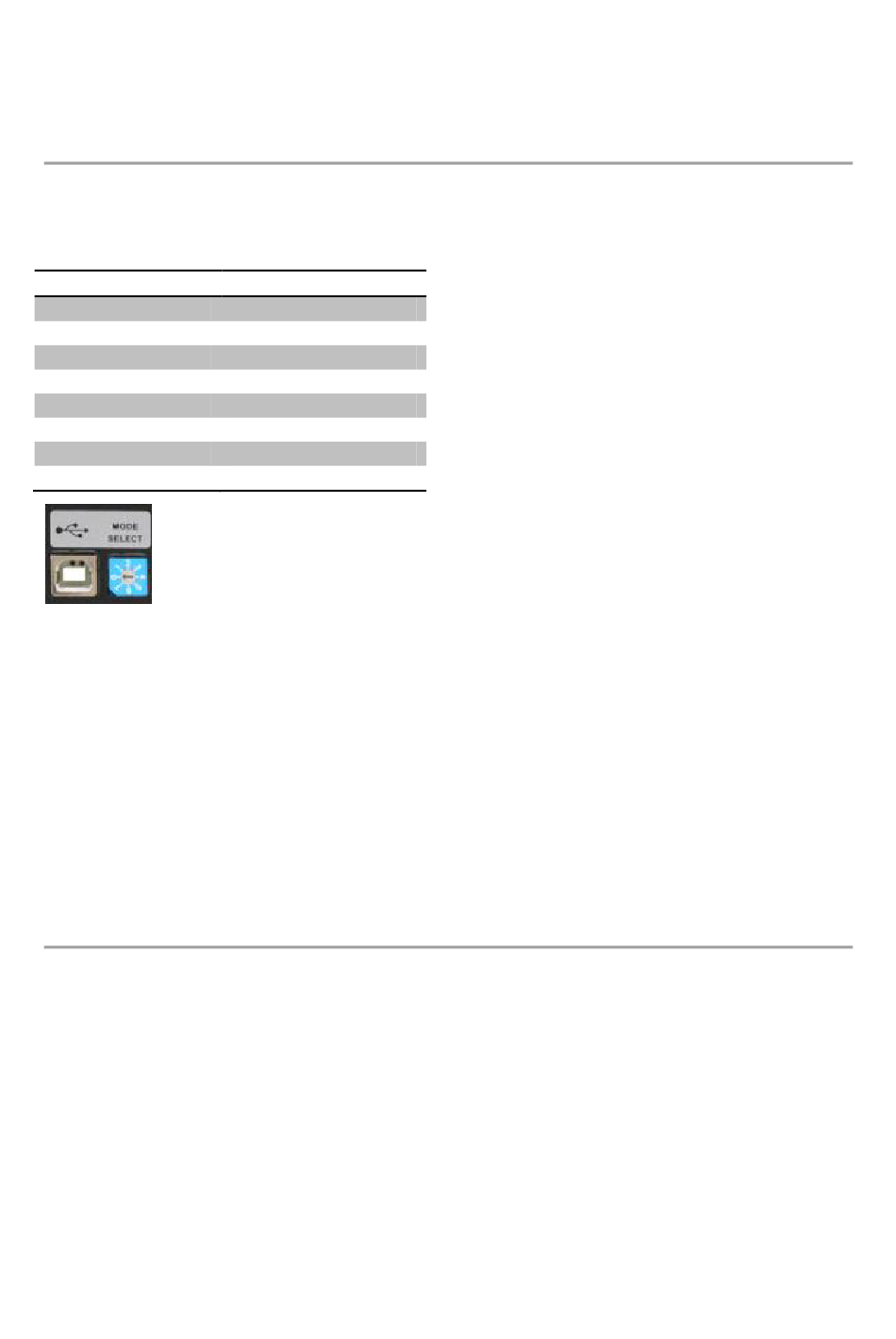

The on-board DSP features 8 user selectable presets to tailor and shape the loudspeakers
performance to suit various applications.
Preset Number
0
1
2
3
4
5
6
7
DJ / Music – Designed for pre-recorded music
and DJs.
Sub Preset 1 – Optimised for the 12" AVE
Bassboy (set freq on Bassboy to max).

Quick Start Guide

To set up your AVE Revo15 DSP speaker up, follow the below steps;
1. Connect the AC power cord from a grounded mains 240v power source.
2. Connect the XLR line input, or mic input into the speaker.
3. Adjust both gain knobs to 0 (off).
4. Switch the power switch to the 'ON' position.
5. Slowly increase the input's gain knob to the desired level (ensuring that the speaker is not
distorting or clipping).
Function
DJ / Music
Sub Preset 1
Sub Preset 2
Sub Preset 3
Monitoring
Live Sound
Live Sound w/ Sub
DSP Deactivated
Sub Preset 2 – Optimised for the 15" AVE
Bassboy2 (set freq on Bassboy to max)
Sub Preset 3 – Optimised for the 18" AVE
Bassboy3 (set freq on Bassboy to max).
Monitoring- Designed for referencing
applications, with flat mid/ high frequency
response from 180Hz and above.
Live Sound – Increased Mid & High
frequencies for live and outdoor applications.
Live Sound w/sub - Increased Mid & High
frequencies with HPF for subwoofer. Great for
live and outdoor applications with Bassboy 3.
DSP Deactivated – DSP controlled EQ is off.
Designed for external EQ and DSP processors.
