User guide WP S 210 F1

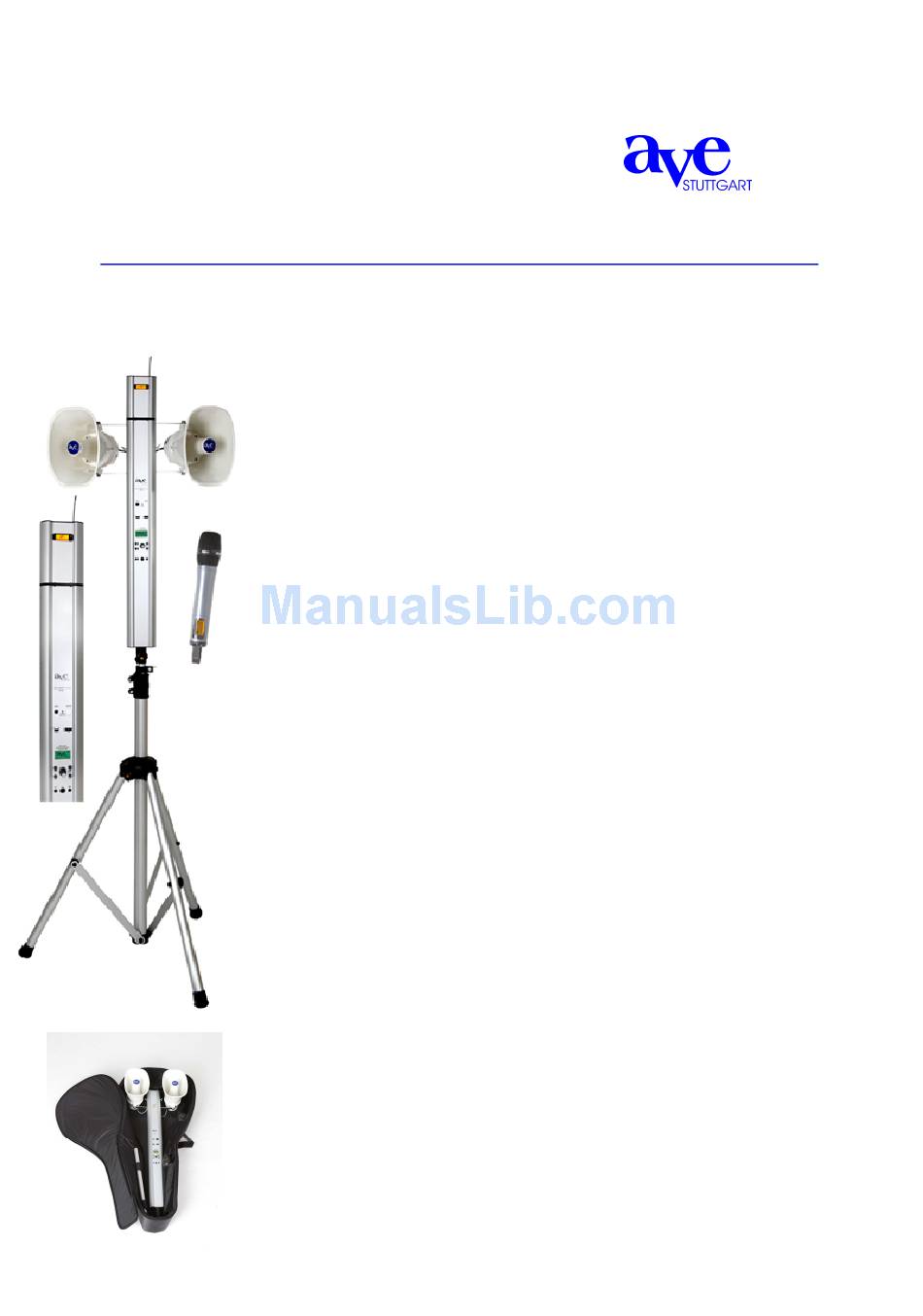

WP S 210 F1
Digital procession loudspeaker

User guide

Thank you very much for choosing the digital procession loudspeaker WP S 210 F1 of the
company A.V.E.

Included in the scope of delivery:

2 horn loudspeaker
1 radio microphone or 1 clip-on microphone
1 dynamic wired microphone
1 micophone cable (Length 5 m)
1 tripod
1 battery charger
1 carrying strap
1 carrying bag

The following features are marking the WP S 210 F1:

DSP (Digital Signal Processor) controlled technique with:
separate adjustable inputs for two radio microphones with licensed frequency
separate adjustable input for a cable microphone
separate adjustable input for an USB-Stick or MP3 player
separate adjustable AUX input for an external signal source e.g: CD or recorder.
Separate adjustable heights, middles depths
AUX out for affiliation
Sum volume
40 watts of dual digitally power amplifier
2 weatherproof pressure chamber loudspeakers à 20 watts
Main switch
LED battery-controlling display
Battery-loading socket
Connection socket for external net part
Removable antenna
Illuminated display announcement
Dimensions without loudspeakers: 860 x 83 x 40 mm
Weight without loudspeakers: approx. 5 kg

The following variations are available:

with one headset micro
WP S 210 F1-H
with one handhold radio or clip-on micro and two sound columns
WP S 210 F1-AT
WP S 210 F1-AT-H with one headset micro and two sound columns
WP S 210 F2 with two handhold radio micros or clip-on micros
with two headset micros
WP S 210 F2-H
with two handhold radio micros or clip-on micros and two sound columns
WP S 210 F2-AT
with two headset micros and two sound columns
WP S 210 F2-AT-H
All models of the WP S 210 series are equipped with the most modern radio
technology from Sennheiser.
Technical changes reserved
