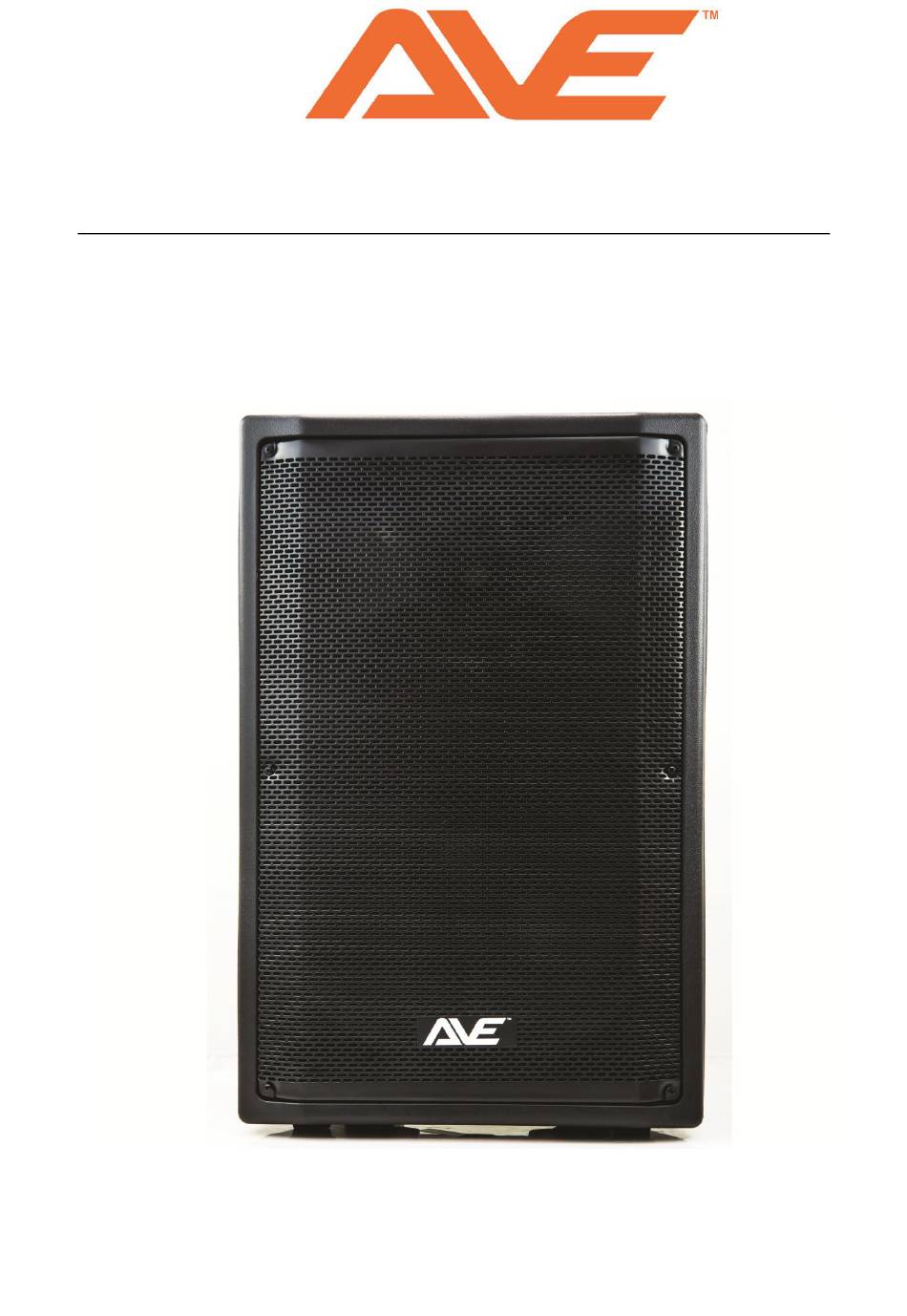

- Page 1 REVO15 DSP POWERED LOUDSPEAKER User Manual...
- Page 2 T able of Contents Safety ..................3 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Description ................5 ................Features ..............DSP Settings Quick Start Guide ..............7 Specifications................8...
- Page 3 Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS SPEAKER TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR AMPLIFIER COVER OR ATTEMPT TO OPEN THE SPEAKER.
- Page 4 Precautions If an AVE Loudspeaker is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE speakers in environments that are below 0°C OR exceed +40°C.
- Page 5 Description The Revo15 DSP is a professional 15" powered speaker designed to deliver performance and versatility for a wide range of sound reinforcement applications. The Revo15 DSP is suitable for musician/DJ performances, presentations, functions, places of worship, and other similar applications.
- Page 6 100Hz. The user editable presets can be loaded in the AVE DSP software and adjusted to tailor the sound to your application. Editable parameters; HPF/LPF Filters, System Time Delay, 6-band Graphic EQ, and Main Volume Output.
- Page 7 Quick Start Guide To set up your AVE Revo15 DSP speaker up, follow the below steps; 1. Connect the Powercon AC power cord from a grounded mains 240v power source. 2. Connect the XLR line input, or mic input into the speaker.
- Page 8 Specifications Product number: REVO15DSP Product type: PA loudspeaker Type: Powered 2-Way Low/mid driver dimensions: 15″ Low/mid driver dimensions (mm): 381mm 1.5” LF Voice Coil Size: LF Voice Coil Size: (mm) 38.1mm HF driver dimensions: 1.75″ HF driver dimensions (mm): 44.5mm Amplifier: Class A/B &...
