2
MAIN FEATURES
●Utilizes the 4-axis structure, enabling the drone to be even more
flexible and speedy. It suitable for for both spacious indoor &
outdoor areas.
●Built-in 6-axis gyro stabilizer, barometer and optical flow sensor to
ensure the accuracy of inflight position.
●Be capable of 360°stunt flip function,optical flow positioning,
auto hover function.
●Headless function makes it easy for directional control.
●Auto take-off and landing function make it easier and safer to control.
●HD camera with real-time transmission function for getting
the fun of aerial photography.
●With flight plan function, when the drone is controlled by mobile
phone.

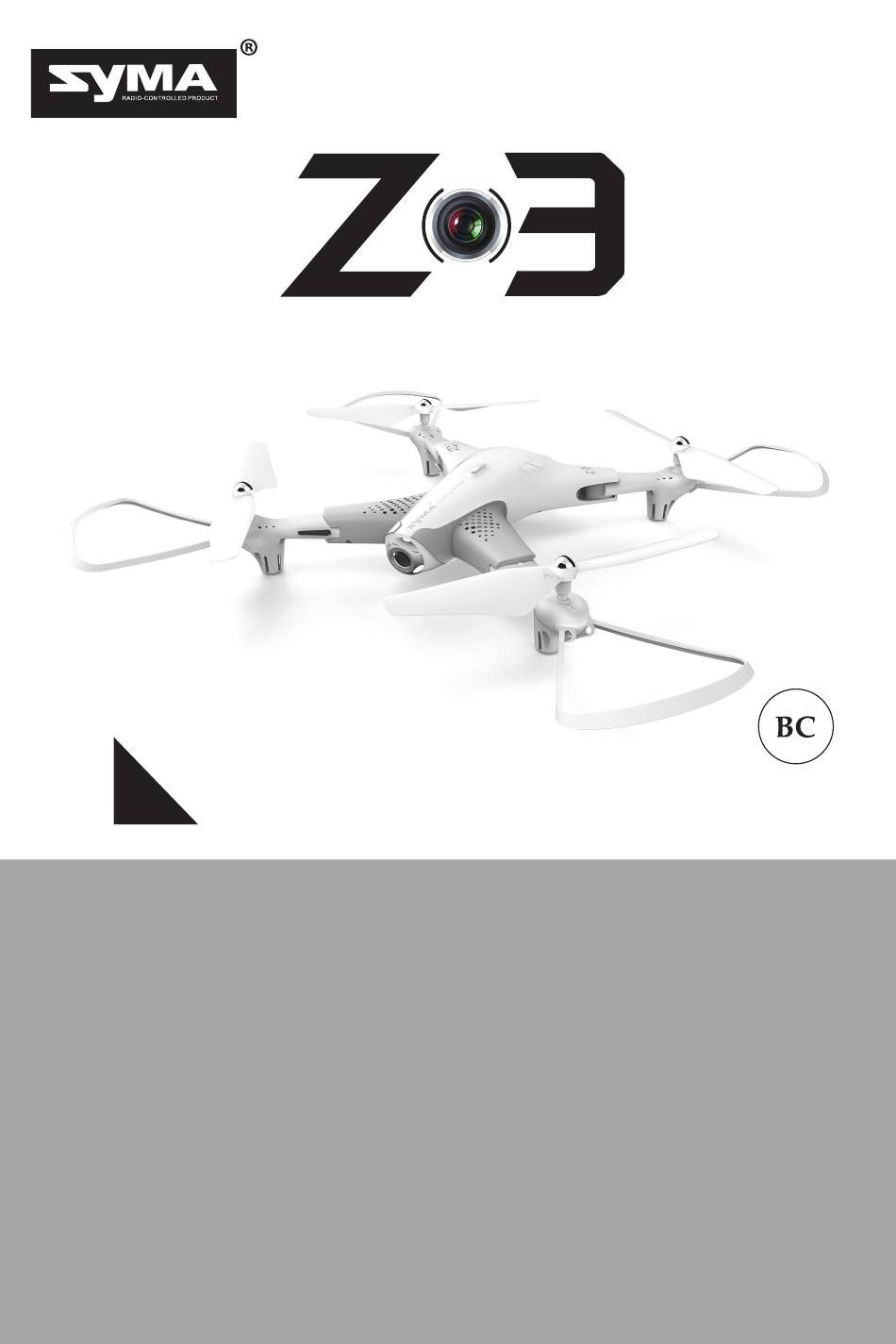

FOLDING DRONE
USER MANUAL
12+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z3 and is the answer not in the manual?

Questions and answers

Related Manuals for SYMA Z3

Summary of Contents for SYMA Z3

  • Page 1 FOLDING DRONE USER MANUAL MAIN FEATURES ●Utilizes the 4-axis structure, enabling the drone to be even more flexible and speedy. It suitable for for both spacious indoor & outdoor areas. ●Built-in 6-axis gyro stabilizer, barometer and optical flow sensor to ensure the accuracy of inflight position.

  • Page 2: Safety Guide

    Safety Guide 1.Please store the smaller-sized drone accessories in places that are out of reach of children. 2.This drone is very powerful. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone from ascending too fast to avoid unnecessary collision and possible damage and injury.

  • Page 3: Package Description

    Package description The following items can be found in this product package: ●Drone ●Remote Control ●User Manual ●4 Blades ●Charging Cable ●4 Protective Gears ●Mobile Phone Retaining Clip Fold operation 1. Manually extend the arm in the 2. Manually fold the arm in the direction direction of the arrow until it is fully of the arrow until it is fully folded.
  • Page 4 Battery Changing and Charging Methods for Drone 1.Press the power button on the top of the drone to make sure the drone is turned “OFF”. 2.Press the fixed components at the bottom of the battery and pull out the battery. 3.

  • Page 5: Battery Installation For Remote Control

    Understanding your remote control Remote control’s button function description: Mobile Phone Retaining Clip Power ON/OFF Right joystick Press and hold to enter/exit headless mode. Left joystick Press to change high/low Keep pushing in until speed. trimming control finished. To clear all the trimming setting,keep pushing and press the power button at the same time.

  • Page 6: Flight Preparation

    Flight Preparation and Turning the Drone ON and Off 1. Flight preparation Step1: Press the power button of the remote control. Step2: Install the drone battery in place. Step3: Press the power button on the top of the drone to 1-2S make sure the drone is turned “ON”.
  • Page 7 Method 3: When the drone is stationary, press the button B, the drone automatically takes off and hovers at a certain height. 1.If the drone is out of the range of the flight, the indicator light will flash slowly, and then slow down. 2.When the remote control is switched off or the power is cut off, the drone will automatically slow down to stop.In the process , open the remote control to control again.

  • Page 8: Trimming Operation

    Ascending and descending control Forward and backward control When the left joystick (throttle) is When the right joystick (rudder) is pushed upwards or downwards, the pushed upwards or downwards, the drone will ascend or descend drone will fly forward or backward correspondingly.

  • Page 9: Product Features

    Product Features 1. Low-Voltage Protection: When the four indicator lights at the bottom of drone start flashing, it means that the drone's battery power is low. At this time, please control the drone return. Over-Current Protection: When the drone encounters direct impact from a foreign object, or is obstructed, or the blades are not rotating, the drone will go into the over-current protection mode.
  • Page 10 6.Optical flow Hover & Auto Hover Function: ①Optical flow hover function When the drone is turned on, the drone will automatically start the optical flow positioning function when hovering in the air, and the drone will remain stationary at a certain point. Note：...
  • Page 11 8.Wireless Real-Time Transmission Function ①Downloading the installation software For Android phones, download and install the SYMA FLY APP by visiting the www.symatoys.com or by scanning the QR code. For IOS Apple phones, download and install the SYMA FLY APP by visiting the App Store or by scanning the QR code.
  • Page 12 This device must not be collocated or operating in conjunction with any other antenna or transmitter.” Decoration of Conformity lnserts: “Hereby, GuangDong Syma model aircraft lndustrial co.,ltd, declares that this drone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.”...
  • Page 13 Accessories /Parts List (Optional) You can choose your favourite optional accessories as below. In order to make it easier for the customers to choose and purchase, we have specially offered each and every accessory. The accessories can be purchased through the local distributors.

  • Page 14: Product Descriptions

    Product Descriptions Product Name Product Name Product Name Protective Gear WiFi Box Top main body Battery Front cover Bottom main body Motor(counter Machine arm A WiFi Board clockwise Battery Box direction) Machine arm B Motor(Counter Baffle clockwlse Receiver Board drrection) -14-...

  • Page 15: Main Specifications

    Main Specifications 50mm 320mm 320mm Drone’s Length: 320mm Drone’s Width : 320mm Drone’s Height: 50mm Motor’s Model : Ø8x16 Battery : 3.7V 500mAh lithium battery Rectification Procedures Problem Reason Solution 1. The drone has entered into The drone low-voltage protection. 1.
  • Page 16 QR code for android QR code for apple system iOS system Manufacturer Guangdong Syma Model Aircraft Industrial Co., Ltd. The Crossing of No.2 West Xingye Road and North Xingye Road,Laimei. Industrial Park Chenghai District Shantou City Guangdong China. Contact person：SYMA Telephone：+86 0754 86381898 The company has the right of final interpretation of this instruction manual statement.
