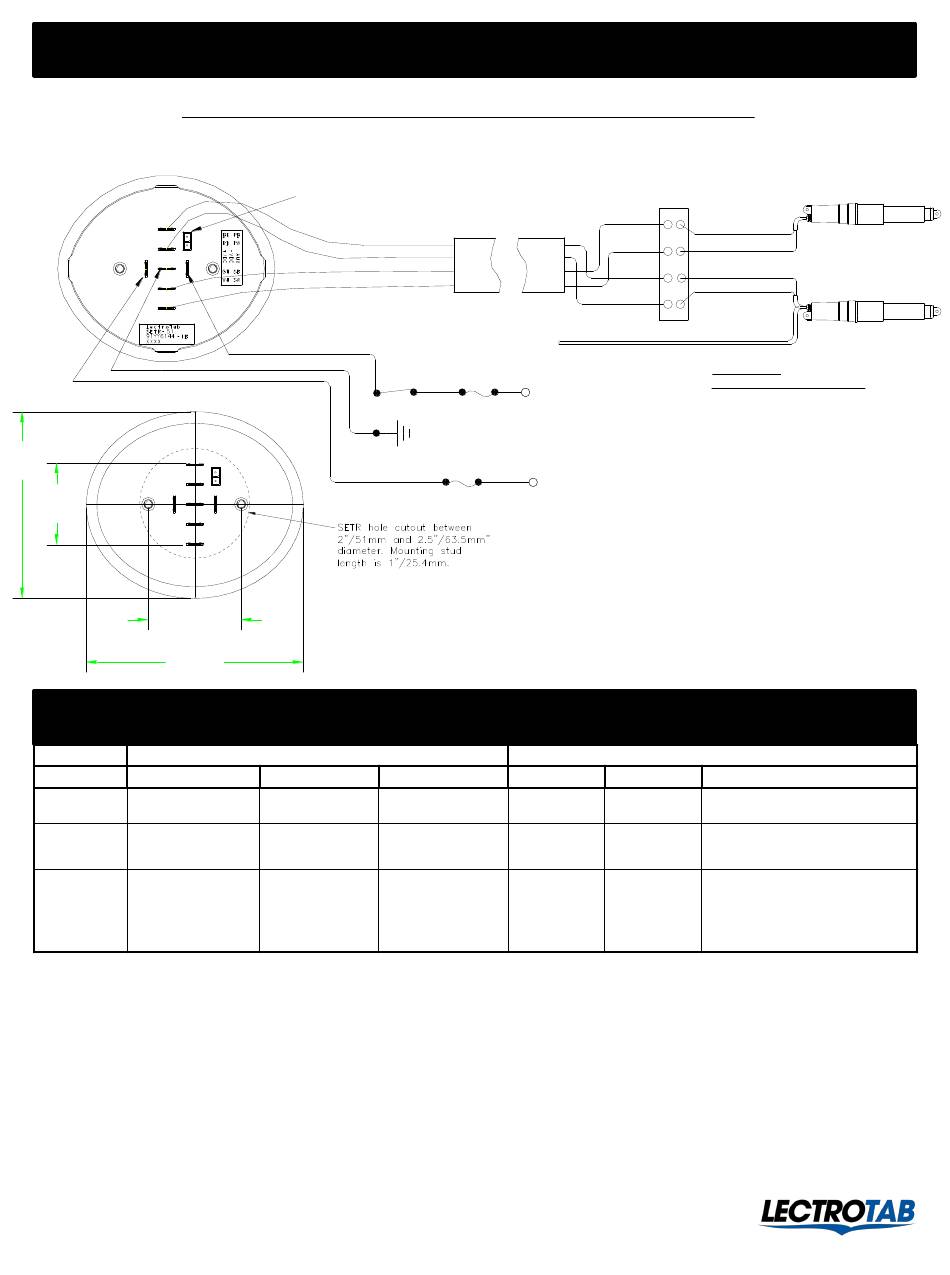

OVAL (SETR) WIRING/INSTALLATION DIAGRAM
Oval (SETR) Control
Port Actuator
BK
RD
(+)
(-)
GN
WH
Stbd Actuator
Oval (SETR) Control Dimensions
Port Actuator
3.38
86mm
(+)
1.48
37.6mm
Stbd Actuator
1.69
42.9mm
3.94
100mm
OVAL (SETR) PROGRAMMING
Function
Enter
Timing
PORT BOW DOWN
LED's On/Off
PORT BOW UP
Swap LED's
STBD BOW DOWN
Enter, Adjust and Exit Program Mode:
•
Before entering program mode, 12vdc or 24vdc must be applied to Oval main power
•
Power to AUX terminal must be OFF (Aux is typically connected to ignition key switch or aux switch)
•
Press and hold button noted in Oval Programming chart under column "Enter" for more than 2 seconds
while switching the Aux terminal switch to ON at the same time
•
Release the "Enter" button and press "STBD BOW UP or DOWN" button to change the value
•
Press and hold "PORT BOW UP" for more than 2 seconds to exit program mode
Linear Devices Corporation
8790 Park Central Drive, Richmond, VA 23772
www.lectrotab.com, Ph 804-261-3888, Fax 804-264-3070
January 2011
"OVAL " (SETR) Control Installation/Wiring Diagram
Communications Port
for second station. See
Installation Manual
for details.
AUX
MUST CONNECT
BK
RD
AUX
(-)
GN
WH
Program Mode Sequence
Adjust
STBD BOW
DOWN/UP
STBD BOW
DOWN/UP
STBD BOW
DOWN/UP
W4-** (**=length) 4 conductor, 14 AWG
interconnect cable may be used or actuator
may be ordered with extended cable i.e.
A-BK-13 = 23 ft. (7m), A-BK-24 = 28 ft.
(8.5m) connecting to SETR.
W4-** Interconnect
Cable
BK
RD
GN
WH
OR
Use A-BK-13 or A-BK-24
extended cable from
actuator connecting
directly to SETR.
See Note
.1 amp Fuse
MUST CONNECT
S1
(+)12 or 24 VDC
input power.
(-)
DC ground
Use 16ga. wire min.
Use 14ga. wire
(+)12 or 24 VDC input power.
Use 14ga. wire.
12vdc = 15 or 20 amp fuse
24vdc = 10 amp fuse
This input voltage
must match the voltage rating
on the actuators being used.
Exit
Range
PORT BOW UP
4 - 12sec
PORT BOW UP
On/Off
LED's
Opposite of
button/same
PORT BOW UP
side button
GREEN
BLACK
WHITE
WHITE
BLACK
BLACK
RED
WHITE
Note (for S1):
"Oval" AUX terminal function:
1) Switch (S1) opens 12vdc power to initiate a
10 second tab retract and Oval control will
shut down.
2) Switch (S1) closes 12vdc power to initiate a
10 second tab retract and Oval control will
continue functioning.
3) The Aux terminal is typically connected to a
+12vdc source that is shut down after docking
to allow tabs to retract, recalibrate and prevent
damage.
Default
Program Details
8 LED's = 8 second actuator
8sec
4 LED's = 4 second actuator
8 LED's = LED ON
On
1 LED = LED's OFF
1 LED on right and left = LED
LED's
lights opposite of button press
Opposite of
8 LED's on right and left = LED
button press
lights same side as button press
Stbd Actuator
Port Actuator
