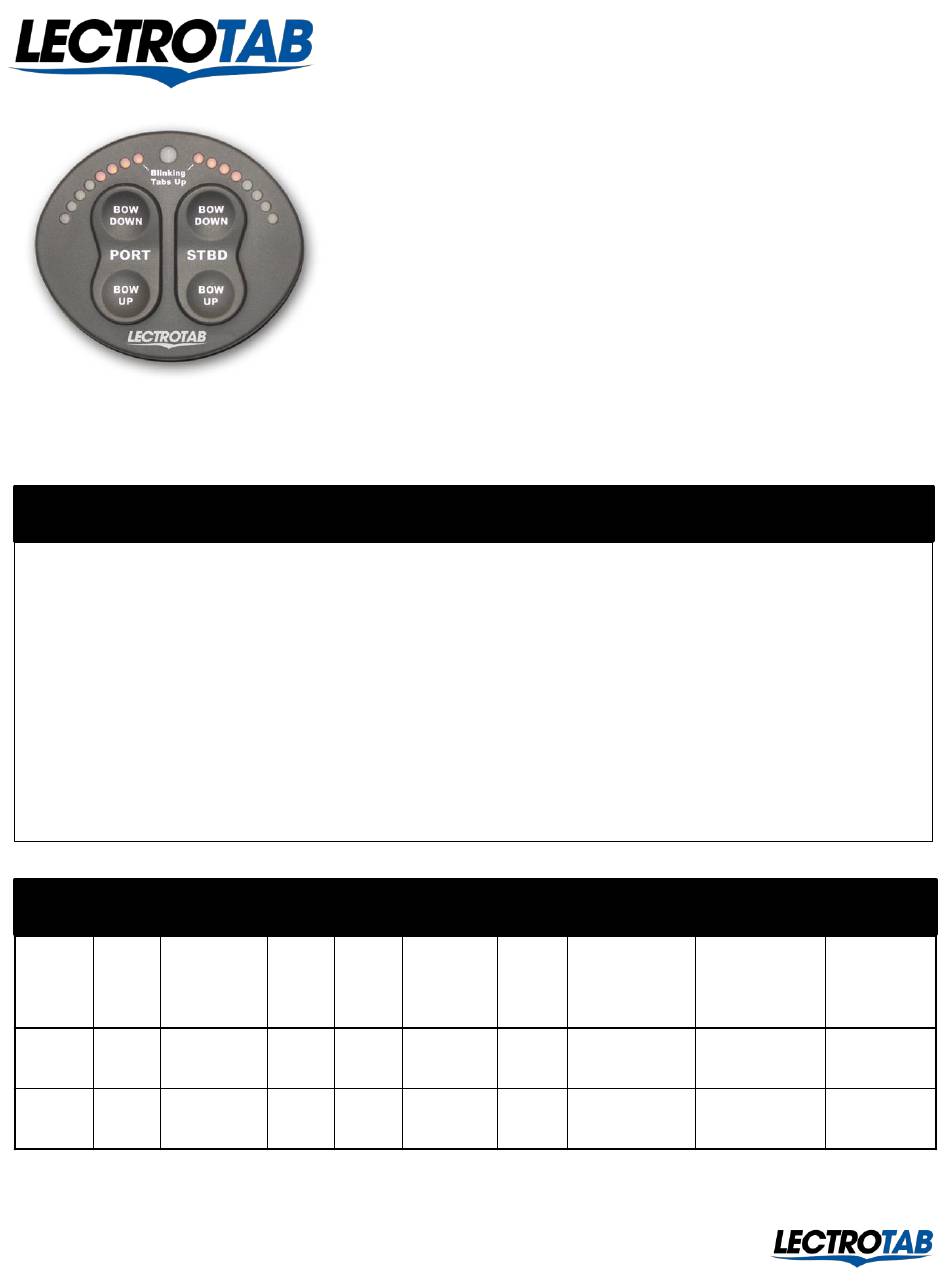

Lectrotab OVAL User Manual

SETR-61 Oval Control
FEATURES
• Microprocessor based trim tab control with LED tab position indicators
• Completely sealed, completely waterproof and will not deteriorate in sunlight
• Tabs automatically retract and calibrate on key switch on or off
• Easy upgrade from rocker switch style control with BP-10 mounting plate
• No external power module required
• Automatically dims LED tab position indicators in darkness and brightens in sunlight
• Adjustable programming features located on back of specification sheet
• Operates up to 6 stations (Use 1 SR cable per Oval control for each station)
• Operates up to 2 actuators per tab on 12vdc and 4 actuators per tab on 24vdc systems
• Black or Gray color display available
SPECIFICATIONS
Model Display Number of
Number Color Stations
Up to 6
SETR-61 Black
Cable per SETR for
2 or more stations)
Up to 6
SETR-60 Gray
Cable per SETR for
2 or more stations)
Linear Devices Corporation
8790 Park Central Drive, Richmond, VA 23772
www.lectrotab.com, Ph 804-261-3888, Fax 804-264-3070
January 2011
The Oval control combines a microprocessor based trim
tab control with an LED tab position indicator. This control
incorporates automatic tab retraction and calibration
whenever the control power is switched on or off. This
unique design requires no feedback sensor for tab
position. LED indicators automatically dim at night and
brighten in sunlight. The Oval is completely sealed and
waterproof. Its rubberized cover is UV protected and will
not deteriorate in sunlight. The control switch is self-
contained and does not require an additional control box.
Lectrotab's Oval control can be used as a single station or
can handle up to 6 stations in constant communication
with each other.
Overall Overall
Width Height
(Use 1 SR
3.94"/ 3.38"/
100mm 86mm
(Use 1 SR
3.94"/ 3.38"/
100mm 86mm
Oval LED Control
Mounting
DC
Hole Cutout Power Input
Voltage
(Diameter) (1 Actuators per Tab)
2"/51mm - 12vdc = 20 amp
12/24
2.5"/63.5mm 24vdc = 10 amp
2"/51mm - 12vdc = 20 amp
12/24
2.5"/63.5mm 24vdc = 10 amp
Fuse Size Fuse Size
Power Input
(2 Actuators per Tab)
12vdc = 30 amp
24vdc = 20 amp
12vdc = 30 amp
24vdc = 20 amp
Fuse Size
AUX Terminal
(MUST CONNECT)
.1 amp
.1 amp
