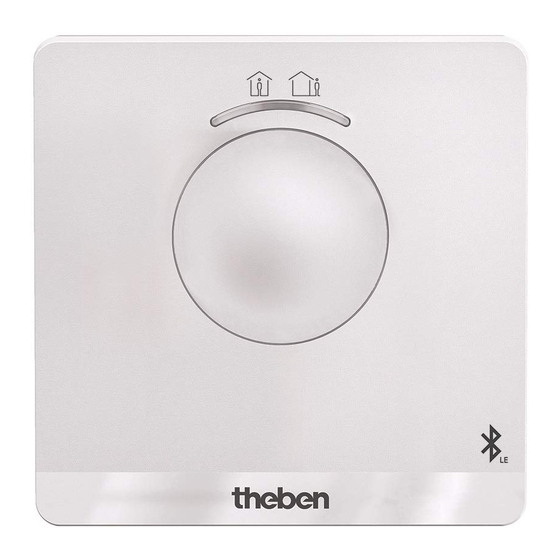

307400 Clock thermostat RAMSES 812 BLE 8120150 1. Basic safety information 2. Proper use Disposal 3. Installation Mounting the clock thermostat 4 Dismounting the clock thermostat 4. Connection Terminal layout 5. Manual setting at the clock thermostat... - Page 2 1. Quick selection of comfort or eco mode 2. Pairing 3. Reset 6. Settings and functions – operation via Theben app 9 Is my smartphone BLE capable? RAMSES BLE app Connecting clock thermos- tat and smartphone (via app) – pairing...
-
Page 3: Basic Safety Information
1. Basic safety information WARNING Danger of death through electric shock or fire! Installation should only be carried out by a ¾ ¾ qualified electrician! • The clock thermostat conforms with EN 60730-2-9 if correctly installed • Corresponds to type 1 B in accordance with IEC/EN 60730-2 •... -
Page 4: Installation
3. Installation Mounting the clock thermostat Electrostatic discharge! Caution, sensitive electronic components! When fitting, observe ESD safety measures (elect- rostatic discharge). Position the clock thermostat on an internal wall, at about eye level. Avoid drafts or heat emission. L For wall mounting... - Page 5 Attach the mounting plate above the wall outlet for the † ¾ supply line . Engage and wire the circuit board carrier . † ¾ First, hook in the upper part of the clock thermostat on top, †...
-
Page 6: Dismounting The Clock Thermostat
Dismounting the clock thermostat Using a screwdriver, loosen the front panel at the two side † ¾ and bottom openings . Then release the catches on the left and right and remove † ¾ the upper part of the housing . Loosen the plug-in connectors and press the circuit board †... -
Page 7: Terminal Layout
230 V (N) 230 V (L) Relay Relay Relay Relay *external sensor 9070321/9070459 *external sensor 9070321/9070459 ** floating contact ** floating contact Terminal layout 1 Relay 2 Relay 3 230 V~ 4 230 V~ 5 ext. input 6 ext. input... -
Page 8: Manual Setting At The Clock Thermostat
5. Manual setting at the clock thermostat Button with LED display for setting – Comfort mode (green LED on) – ECO mode (green LED off) With the button, you can select either comfort mode or ECO mode. 1. Quick selection of comfort or eco mode Press the button †... -
Page 9: Reset
Press the button for 12 s † ¾ ▻ Hardware reset (the red LED goes out) 6. Settings and functions – opera- tion via Theben app Is my smartphone BLE capable? Download Bluescan app for Android and iOS † ¾... -
Page 10: Ramses Ble App
RAMSES BLE app Settings, device management Software info Selection RAMSES BLE Set temperature, adjustable in increments of 0.2 °C (2 °C – 30 °C) Info: External input, relay, PIN etc. Operating modes: Programming of – Programs P1 – P3 switching times –... -
Page 11: Connecting Clock Thermos- Tat And Smartphone (Via App) - Pairing
Connecting clock thermostat and smart- phone (via app) – pairing The clock thermostats can be programmed using an app (from Android 4.3, iOS 5) on a mobile end device. Communica- tion takes place via Bluetooth BLE. Download the RAMSES BLE app from the App Store or †... -
Page 12: Program
Loading additional devices ... Press device management † ¾ ▻ A window will open Press + † ¾ ▻ Further devices will be searched ... Program In the program menu, • programs P1 – P3 can be changed • a new program, or •... - Page 13 • Programs P1–P3 can be set, edited, or deleted. • A maximum of 24 switching times can be set per pro- gram, up to a total of 42. L During programming, selected days are shown like , and unselected days like The created programs are automatically sent to the clock thermostat.
-
Page 14: Info
Info Settings Press Settings † ¾ ▻ A window will open... - Page 15 L The functions in this submenu have to be set by the quali- fi ed electrician. In the settings, language, temperature (comfort, eco, frost), wall compensation, optimisation, etc. can be set. 1. Setting the wall compensation If the installation location is unfavourable, temperature deviations between detected and actual room temperature might occur.
- Page 16 2. Setting the controller Behaviour of a PD controller (pulse duration con- troller) With adapted heating systems, a PD controller is characte- rised by its short transient time, minimal overshoot and high control accuracy. – Control period: 5 bis 30 min –...
- Page 17 3. External input The external input can be configured for various external sensors. Input is active, therefore do not use external voltage. The connected contact must be floating and electrically isolated. The following options are available with the indivi- dual sensors/contacts Floor Temperature Floor temperature restriction, floor...
- Page 18 4. Setting the optimisation The optimisation function allows you to achieve a certain room temperature at a desired switching point. The display shows how many minutes earlier the heating starts. This time applies per K of temperature difference between actual tem- perature and desired set temperature.
- Page 19 With a set optimisation of 5 min/K, the thermostat sends the heating request earlier, as follows: Set temperature at 06.00 a.m. 23 °C Actual temperature 17 °C i.e. Delta T = 6 K 6 K * 5 min/K = 30 min The controller sends the heating start 30 min.
-
Page 20: Technical Data
Rated impulse voltage: 4 kV Pollution degree: Software Class A Theben AG herewith declares that this type of radio installation complies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following Internet address: www.theben.de/red-konformitaet... -
Page 21: Contact
