CORE SYSTEM COMPONENTS

3
3.1

AM57x SoC

The TI Sitara AM57x system-on-chip (SoC) is built around dual-core ARM Cortex-A15 CPU. Dual
C66x VLIW DSP cores and dedicated ARM Cortex-M4 IPUs make AM572x a powerful platform for
image and video processing systems, while dual PowerVR SGX544 GPU and IVA-HD video sub-
system enable multimedia demanding applications.

Up to 1500-MHz Sitara™ ARM® Single/Dual Cortex®-A15 32-Bit RISC processor

Up to 2 C66x™ Floating-Point VLIW DSP

Image and video accelerator high-definition (IVA-HD) subsystem

Two ARM® Dual Cortex®-M4 Image Processing Units (IPUs)

Single/Dual-Core PowerVR® SGX544™ 3D GPU

2D-Graphics Accelerator (BB2D) Subsystem, including Vivante™ GC320 Core

Crypto Hardware Accelerators (AES, SHA, RNG, DES and 3DES)

Two dual-core Programmable Real-time Unit and Industrial Communication Subsystems
(PRUICSS)
Figure 2
Revised April 2018

NEON™ SIMD Coprocessor and Vector Floating Point (VFPv4) per CPU

32-KiB instruction and 32-KiB data level 1 (L1) cache per CPU

Shared 1-MiB/2-MiB level 2 (L2) cache

On-Chip 512KiB/2.5MiB Shared Memory (RAM)

48-KiB bootable ROM

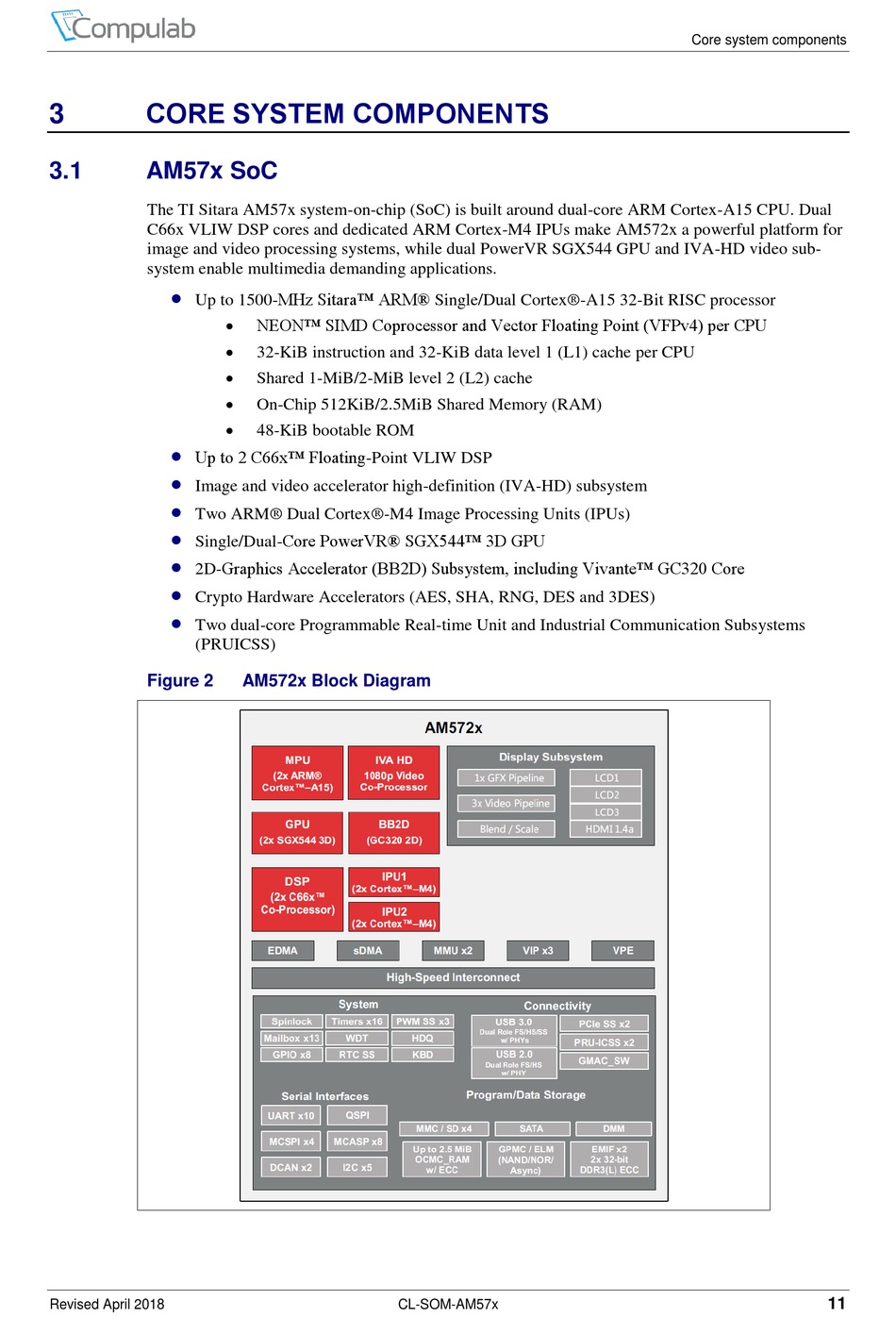

AM572x Block Diagram
CL-SOM-AM57x
Core system components
