For mains powered multi-sensor fire / smoke / heat / co alarms
Hide thumbs
Table of Contents

Advertisement

Quick Links

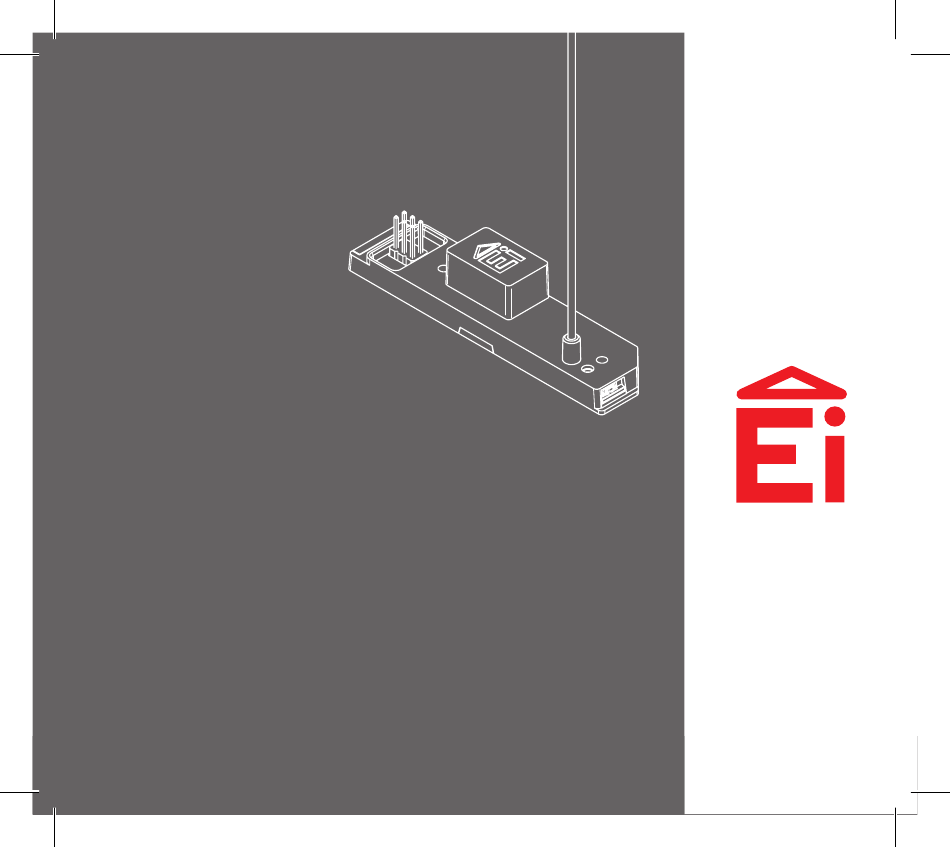

SmartLINK Module Ei3000MRF
for Mains Powered Multi-Sensor Fire / Smoke / Heat /
CO Alarms - Ei3000 Series
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital
information on the operation and installation of your Alarm. The leaflet should be
regarded as part of the product.
If you are just installing the unit, the leaflet MUST be given to the householder. The
leaflet is to be given to any subsequent user.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ei3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ei Electronics Ei3000 Series

Summary of Contents for Ei Electronics Ei3000 Series

  • Page 1 SmartLINK Module Ei3000MRF for Mains Powered Multi-Sensor Fire / Smoke / Heat / CO Alarms - Ei3000 Series Instruction Manual Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Alarm. The leaflet should be regarded as part of the product.

  • Page 3: Table Of Contents

    Contents Introduction 2. Installation and House Coding 3. System Installations 4. Additional Features 5. Troubleshooting and Indicator summary tables 6. Testing the System 7. Interconnected CO Alarms and Smoke Alarms 8. SmartLINK Troubleshooting 9. Technical Specifications 10. Guarantee 11. Limitations of Radio Communications...

  • Page 4: Introduction

    Introduction...
  • Page 5 Alarm activations, tampering, faults etc. and provide for planned maintenance. The Ei3000MRF module is simply plugged into the rear of the base of an Ei3000 series Alarm. RF communication via this module eliminates the need to install long interconnect wires between all the Alarms on different floors in different rooms.

  • Page 6: Installation And House Coding

    Installation and House Coding...
  • Page 7 N.B Disconnect Mains Before Alarm Head Removal After disconnecting the mains power supply, it is now safe to remove the Alarm from its base. Using a screwdriver, insert into the removal slot on the side of the Alarm. Push the lower half of the Alarm away away from the screwdriver, in the direction of the arrow on the cover (see Figure 1 below).
  • Page 8 Fitting the Ei3000MRF Module To fit the Ei3000MRF Module, first hold the flexible antenna and guide it into its designated hole in the rear of the unit until about 2/3 of its length is inserted (Fig. 2a). Then, hold the module housing (Fig.
  • Page 9 House Coding the Unit Re-connect the Alarm to the base. Switch back on the mains power. Check for the green LED on the Alarm cover. Power supply to the Ei3000MRF will be confirmed by an initial flash of the red, blue and green LED on the side of the unit (see Fig 3).
  • Page 10 N.B. We recommend, for ease of installation and RF communication, that up to 12 RF devices can be installed in any one RF coded system. Please contact us for further advise if additional RF devices are required. blue, red & green LED Figure 3 Figure 4...
  • Page 11 You can exit this mode by pressing the House Code button on one of the RF Alarms. Keep the button pressed until the blue light comes on solid and then release. The Alarm will now send a signal to all the other RF devices in the system to exit House Code. Alternatively, the RF Alarms will automatically exit the House Code mode after 30 minutes.
  • Page 12 Alignment Alignment Figure 5a Figure 5c Figure 5b...

  • Page 13: System Installations

    System Installations...
  • Page 14 Mixed Hardwired Interconnect and Wireless Interconnect (Hybrid) System Ei3000 Series Alarms are also equipped to work in a hybrid system. A hybrid system is a combination of hardwired interconnected and RF interconnected Alarms and devices. Hybrid systems can be very flexible and allow extended fire and/or CO protection with minimum installation disruption.
  • Page 15 Examples of various RF and Hardwired Systems Hardwired Hardwired Hardwired Carbon Monoxide Carbon Monoxide Carbon Monoxide Alarm Alarm Alarm Fire / CO Alarm Interface Ei3018 Ei3018 Ei3018 Ei414 System Hardwired Hardwired Hardwired Alarm Controller Multi-Sensor Optical Heat Fire Alarm Smoke Alarm Alarm Ei450 Ei3024...
  • Page 16 RF Heat & Carbon Monoxide Multi-Sensor Carbon Monoxide Alarm Fire Alarm Alarm Fire / CO Alarm Interface Ei3018 Ei3028 Ei3024 Ei414 System Alarm Controller Optical Heat Smoke Alarm Alarm Ei450 Ei3016 Ei3014 The RF network can consist of a mixture of Fire, Smoke, Heat and/or CO Alarm types...
  • Page 17 Hardwired Hardwired Hardwired RF Heat & Multi-Sensor Optical Heat Carbon Monoxide Alarm Smoke Alarm Alarm Alarm Ei3024 Ei3016 Ei3014 Ei3028 Fire / CO Alarm Interface Ei414 If an Ei3028 Heat and CO Alarm is required on a hardwired section, it should be fitted to a Fire, Smoke and Heat only section, one per section and that Ei3028 should also be the section‘s link to the RF network of the hybrid system.

  • Page 18: Additional Features

    Additional Features...
  • Page 19 The Ei3000MRF SmartLINK Module allows for the extraction of certain information from an Ei3000 Series Alarm, using an Ei Electronics download device. Once the system has been set up, information can be accessed from within or outside a property (within RF range) if access is an issue.
  • Page 20 4. Smart Sound Pattern When installed as part of a RF interconnected system of Ei3000 series CO and fire alarms only, all devices will sound using the appropriate alarm sound pattern for the alarm event detected. For example, if a CO detection triggered the alarm, then all Ei3000 RF...
  • Page 21 interconnected devices will sound with the CO sound pattern. Similarly, if fire was detected, then all devices will sound with the fire sound pattern. This feature is not available for hardwired, mixed or hybrid installations. 5. Live Monitoring The Ei3000MRF SmartLINK Module, together with the Ei1000G Gateway and the proprietary Cloud portal, delivers a unique “live monitoring”...

  • Page 22: Troubleshooting And Indicator Summary Tables

    Troubleshooting and Indicator summary tables...
  • Page 23 Normal Operation Mode Blue LED Red LED Green LED Sound Power Up Standby Button Test Alarm followed by flash every 10 Sec Head Removal followed by flash 1 minute later = LED on solid = LED flashing RF Mode...
  • Page 24 RF Mode Mode Button Action Blue LED Red LED Green LED House Code Press and release enter on solid blue In house code House code Press and release exit on solid blue Factory reset Press and release on flashing blue Remote learn Press and release on entry...
  • Page 25 Fault Conditions What you see / hear Red LED Sound What it means What to do Rapid Beeping Incompatible house code Factory reset the module and re-try Communication failure Remove the module, between module and re-seat and re-try rapidly after Alarm head button release...
  • Page 26 5.1. Normal Operation 5.1.1. Power Up With the RF module fitted, slide the Alarm onto the base to power up. The red LED will flash once followed by one flash of the blue Led and then one flash of the green LED to indicate that RF module has been powered successfully.
  • Page 27 5.2 Module Status 5.2.1 House Code To enter house code mode, hold the House Code Button until the blue LED lights solid and then release. The blue led will then flash rapidly for a few seconds to indicate the module is in house code mode.
  • Page 28 release. The green led will then flash rapidly for a few seconds to indicate the module is in monitoring mode. It will then flash the green led every 5 seconds until, if successful, when it will flash blue-green, or if failed to buddy, it will flash blue-red. If the buddy process has failed, try re-orientating the Alarm heads or adding extra RF devices to improve the range.

  • Page 29: Testing The System

    Testing the System...
  • Page 30 Check that the green light is on continuously to indicate that mains power is present. Frequent testing of the system is a requirement to ensure its continued and safe operation. Guidelines and best practices for testing are as follows: 1. After the system is installed. 2.
  • Page 31 The local Alarm will stop sounding but you will hear the other Alarms still sounding in the distance. Switching off Mains for long periods If the premises are regularly being left without mains power for long periods the Alarms should be removed from their mounting plates and the Ei3000MRF modules (if fitted) should be removed to prevent the batteries becoming fully depleted.

  • Page 32: Interconnected Co Alarms And Smoke Alarms

    Interconnected CO Alarms and Smoke Alarms...
  • Page 33 Identifying source of Alarm Ei Electronics Carbon Monoxide Alarms, Smoke Alarms, Heat Alarms or Dual Sensor Alarms can be interconnected via RadioLINK, RadioLINK+ or SmartLINK so that one Alarm sensing danger will cause all the other units to sound, enabling the alarm to be heard throughout the residence.

  • Page 34: Smartlink Troubleshooting

    SmartLINK Troubleshooting...
  • Page 35 It is important that all Alarms in your system communicate with each other. The number of walls, ceilings and metal objects in the signal path will reduce the strength of the SmartLINK signals between the Alarms. Accordingly, one or more Smoke/Heat/CO Alarms may have difficulties in communicating to all the other Alarms in the system.

  • Page 36: Technical Specifications

    Technical Specifications...
  • Page 37 Power Supply: Powered by Alarm head unit RF Range: A minimum of 100 metres in free space RF Visual Indicator: Blue light flashes continuously for 0.5 to 3.5 seconds while transmitting RF signal RF Frequency: 868.499MHz (1% duty cycle) Max RF Power: +6dBm Dimensions: 80mm length x 19mm depth x 16mm height...

  • Page 38: Guarantee

    Guarantee...
  • Page 39 Ei Electronics guarantees this RF SmartLINK Module for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of use and service, and does not include damage resulting from accident, neglect, misuse, unauthorised dismantling, or contamination howsoever caused.

  • Page 40: Limitations Of Radio Communications

    Limitations of Radio Communications...
  • Page 41 Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding.
  • Page 42 0889 Hereby, Ei Electronics declares that this Ei3000MRF SmartLINK Module is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity may be consulted at Block E1 www.eielectronics.com/compliance The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream.
  • Page 44 Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN, U.K. Tel: 01691 664100 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel:+353 (0)61 471277 P/N B19047 Rev2 www.eielectronics.com © Ei Electronics 201...
