RadioLINK
for Mains Powered Smoke / Heat Alarms
Ei160e / Ei2110e Series
Ei100MRF Module
(for use with eSeries Alarms only)
Read and retain carefully for as long as the product is being used. It contains vital information on the operation
and installation of your Module. The leaflet should be regarded as part of the product.
If you are just installing this Module, the leaftet must be given to the householder. The leaflet is to be given to
any subsequent user.
+
Module Ei100MRF
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ei100MRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ei Electronics Ei100MRF

Summary of Contents for Ei Electronics Ei100MRF

  • Page 1 RadioLINK Module Ei100MRF for Mains Powered Smoke / Heat Alarms Ei160e / Ei2110e Series Ei100MRF Module (for use with eSeries Alarms only) Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Module.

  • Page 3: Table Of Contents

    Table of Contents page Introduction ................Installation and House Coding ........... Additional Features ..............Indicator Summary ..............System Examples ............... Testing the system ..............Interconnected Carbon Monoxide Alarms and Smoke Alarms ... RadioLINK + Troubleshooting ............Technical Specifications ............. Guarantee .................. Limitations of Radio Communications ........

  • Page 4: Introduction

    Ei100MRF module attached to that Alarm will transmit an RF signal that will activate the sounders in all other Alarms in the system. The Ei100MRF module is plugged into the rear of the base of an Ei160e or Ei2110e series Alarm. RF communication through this module eliminates the need to install long interconnect wires between all the Alarms on different floors in different rooms.

  • Page 5: Installation And House Coding

    Installation and House Coding N.B Disconnect Mains Before Alarm Head Removal After disconnecting the mains power supply, it is now safe to remove the Alarm from its base. Using a screwdriver, insert into the removal slot on the side of the Alarm. Push the lower half of the Alarm away away from the screwdriver, in the direction of the arrow on the cover (see Figure 1 below).

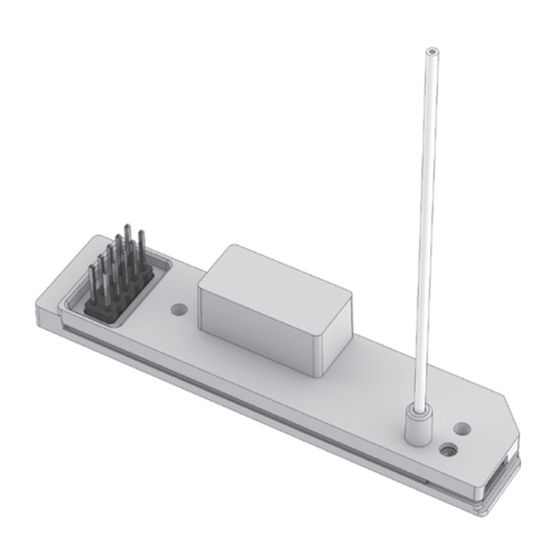

  • Page 6 Fitting the Ei100MRF Module To fit the Ei100MRF Module, first hold the flexible antenna and guide it into its designated hole in the rear of the unit until about 2/3 of its length is inserted (Fig. 2a). Then, hold the module housing (Fig. 2b) & plug it into the Alarm, being careful to align the pins and keeping them perpendicular to the base as the module is inserted (Fig.
