Risco RWT74 Assembly/Installation Instructions

Wireless Twin Beam
Model: RWT74
Assembly & Installation Instructions
Tx Rail Rx Rail
© RISCO Group 03/2011
RTTE Compliance Statement
Risco Ltd. hereby declares that this equipment is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
For the CE Declaration of Conformity please refer to our website: www.riscogroup.com.
All rights reserved. No part of this document may be reproduced in
any form without prior written permission from the publisher.
RISCO Group Contacting Info
RISCO Group is committed to customer service and product support. You can contact
us through our website (www.riscogroup.com) or at the following telephone and fax
numbers:
UK Tel: +44-161-655-5500 BRAZIL Tel: +55-11-3661-8767
E-mail: support-uk@riscogroup.com E-mail: support-br@riscogroup.com
ITALY Tel: +39-02-66590054
CHINA (Shanghai) Tel: +86-21-52-39-0066
E-mail: support-it@riscogroup.com
E-mail: support-cn@riscogroup.com
SPAIN Tel: +34-91-490-2133
E-mail: support-es@riscogroup.com
CHINA (Shenzhen) Tel: +86-755-82789285
E-mail: support-cn@riscogroup.com
FRANCE Tel: +33-164-73-28-50
E-mail: support-fr@riscogroup.com
POLAND Tel: +48-22-500-28-40
BELGIUM Tel: +32-2522-7622
E-mail: support-pl@riscogroup.com
E-mail: support-be@riscogroup.com
U.S.A Tel: +1-631-719-4400 ISRAEL Tel: +972-3-963-7777
E-mail: support-usa@riscogroup.com E-mail: support@riscogroup.com
FCC Note:
Only the 433,92 MHz version is FCC approved and to be sold in US.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment
A C
B
x4 x2 x2
1
A
B
5IN1526

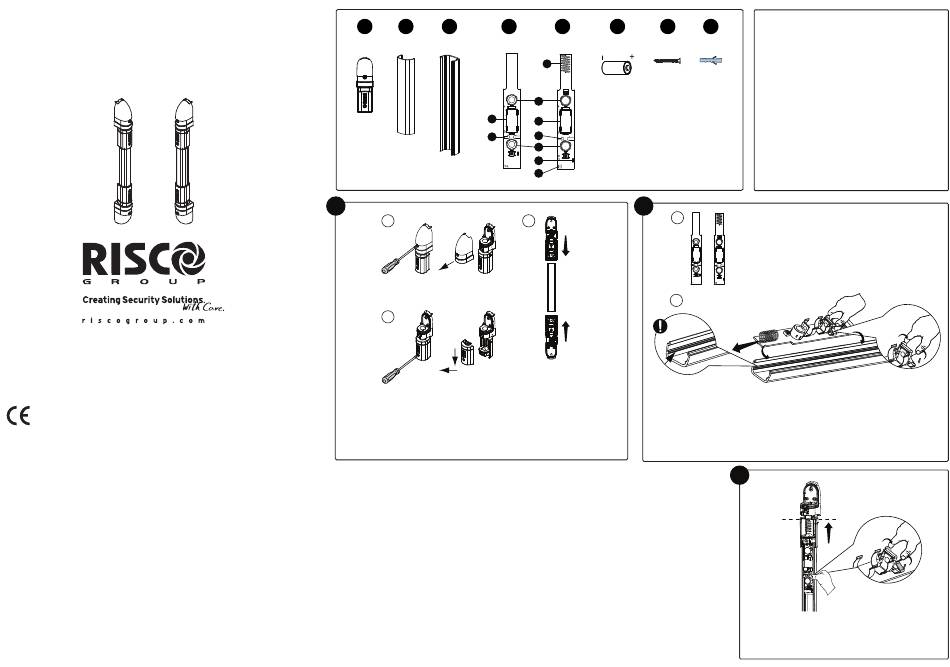

1. Separate the IR filter cover from the aluminum rail.
