100m 1x2 HDBaseT Splitter, HDCP2.2 compliant
Support POC, Ethernet, RS232 Pass through
Features
•Incorporate HDBaseT technology
•Distribute 1 Ultra HD HDMI signal to 2 identical HDBaseT output, with 2 x loop HDMI output
and 2 Ethernet ports
•HDCP 2.2 compliant (HDCP 2.2 in, HDCP 1.4 out)
•Support resolutions to 4K@60Hz, YUV 4:2:0, VESA resolution up to 1920x1200
•Support Dolby TrueHD, DTS-HD Master Audio
•With wide-band Bi-Direction IR control (38 ~ 56 kHz)
(IR extension from Sender to Receiver or from Receiver to Sender)
•HDBaseT output 2 support Ethernet pass through
•Support RS232 pass through
•Support CEC, 3D
•Support POC (Receiver powered by HDBaseT Splitter)
•DC 12V power supply
Operating Instructions
1
Advertisement
Related Manuals for LINK-MI LM-SPH02-100
Summary of Contents for LINK-MI LM-SPH02-100
- Page 1 Operating Instructions 100m 1x2 HDBaseT Splitter, HDCP2.2 compliant Support POC, Ethernet, RS232 Pass through Features •Incorporate HDBaseT technology •Distribute 1 Ultra HD HDMI signal to 2 identical HDBaseT output, with 2 x loop HDMI output and 2 Ethernet ports •HDCP 2.2 compliant (HDCP 2.2 in, HDCP 1.4 out) •Support resolutions to 4K@60Hz, YUV 4:2:0, VESA resolution up to 1920x1200 •Support Dolby TrueHD, DTS-HD Master Audio •With wide-band Bi-Direction IR control (38 ~ 56 kHz)

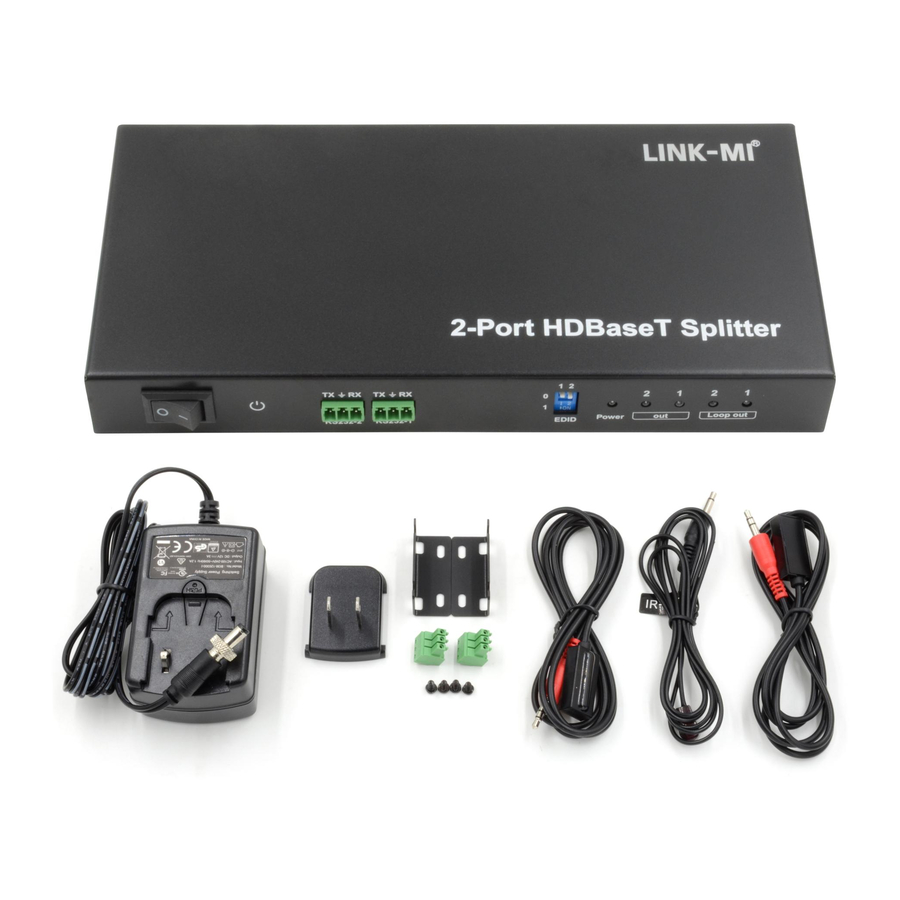

- Page 2 Operating Instructions Operating Instructions TABLE OF CONTENTS Package Contents Dimensional drawing Panel Descriptions Connecting and Operating Applications Maintenance Product Service Warranty Packing contents 1) Main Unit: 1x2 HDBaseT Splitter 2) 1x Power supply DC 12V 3) 1x IR-TX cable 4) 2x IR-RX cable 5) 2x Phoenix plugs for RS232 cable termination 6) 4x screws 7) 2x detachable mounting ears...
- Page 3 Operating Instructions Operating Instructions VESA Resolution Refresh rate VESA Resolution 640x480 800x600 1024x768 1280x768 1280x960 60Hz 1280x1024 1680x1050 1920x1080 1280x720 1360x768 1400x1050 1920x1200 Support 1920x1200 under EDID “1 0”. Dimensional d rawing 220,2...
- Page 4 Operating Instructions Operating Instructions 4) Connect IR TX cables to the IR-TX sockets on the splitter and connect IR RX cables to the IR-RX sockets on the splitter. 5) Connect IR RX cable to IR-In port of Receiver, connect IR TX cable in to IR-Out port of Receiver. Front Panel 6) Power up all units, the splitter,Receiver, sources and displays.
